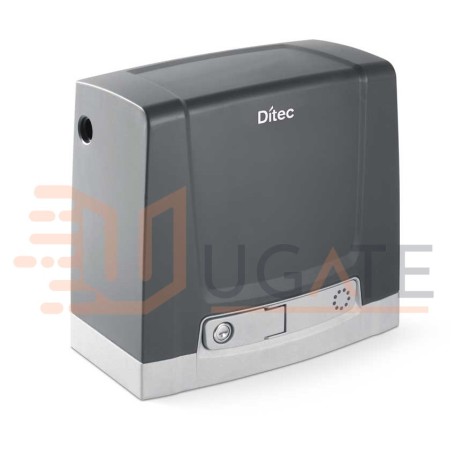

NEOS 24V gearmotor for sliding gate 600KG DITEC ENTREMATIC NES600EH

DITEC ENTREMATIC NES600EH NANES600EH

Integrated CS12E control panel,

INTENSIVE APPLICATIONS 600 KG,

RAPID LEARNING

size 335x220x325mm

FOR SLIDING GATE UP TO 600 KG

INTENSIVE APPLICATIONS

with foundation plate

Description NEOS 600

Load capacity 600 KG

Stroke management LIMIT SWITCH + VIRTUAL ENCODER

Maximum opening 20 Mt

Service class 4 - INTENSE

Power supply 230 Vac - 50/60 Hz

Motor power supply 24 Vac 50/60 Hz

Absorption 1.5 A

Thrust 600 N

Opening and closing speed 0,1 - 0,24 m/s

Operating temperature -20°C / +55°C (-35°C / +55°C with NIO activated)

Degree of protection IP 24 D

CS12E control panel with integrated radio receiver

DIMENSIONS 335x220x325mm

Warranty 24 Months
