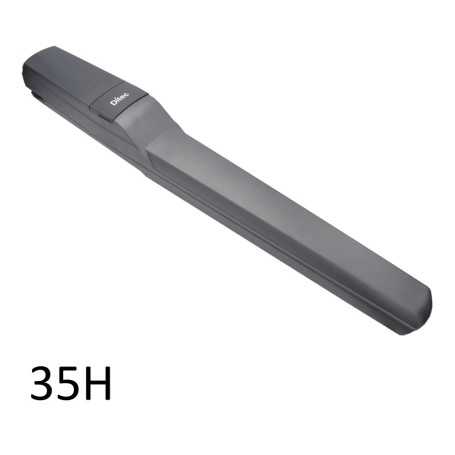

The PWR35H operator of the DITEC is a very powerful motor capable of moving large leaves and thanks to the 24V technology it is able to be used in contexts where the use of the gate is very frequent. This operator is also sold as part of an automation kit, so this product is ideal if you are repairing a PWR35H system. Sold complete with fixing brackets and mechanical limit switch stops.
This operator can be controlled by the LCU30H and LCU40H control panels but normally the LCU40H are included in the kits.
What are the technical characteristics of the PWR35H by DITEC?
- Maximum load capacity 600 kg x 1.75 m 250 kg x 3.5 m
- Motor power supply 24 Vdc
- Maximum power 5.5 A
- Power consumption 65 W nom. / 132 W max
- Thrust 3000 N
- Opening speed 14÷80 s / 90°
- Maximum stroke 450 mm
- Maximum actuator opening 110°
- Intermittent 50 consecutive cycles at 20°C
- Heavy duty class up to 300,000 cycles

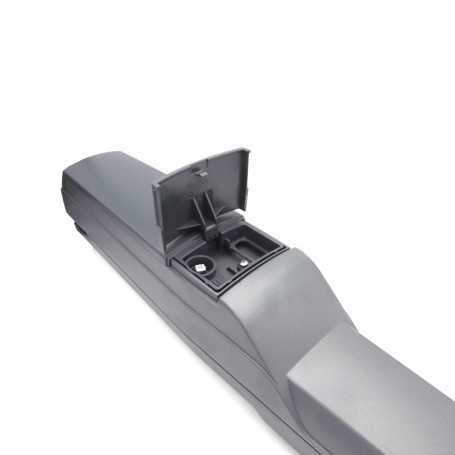

- Release for manual key opening
- Operating temperature -20°C / +55°C (-35°C / +55°C with NIO on)
- IP44 degree of protection
- Weight (kg) 9
- Frequency of use
- F50 - up to 50 users
- Model
- Single
- Electric motor
- 24V
- Supply voltage
- 220 - 240V
