Gear motor for central sliding gate 24V 400kg C720 FAAC 109320

FAAC 109320 C720

EAN 8055195003147

Gearmotor FAAC C720 24V, for sliding gates up to 400 kg in weight,

Extremely compact and robust, characterized by very high efficiency (>80%) and continuous use.

Equipped with a safety encoder, then the gate reverses the maneuver at the obstacle.

Wide selection of operating logics and parameters, thanks to the E721 control unit, installed inside the engine,

equipped with programming via display, slowdown in both maneuvers and quick engagement for 3-pin receivers (XF 433 or XF 868).

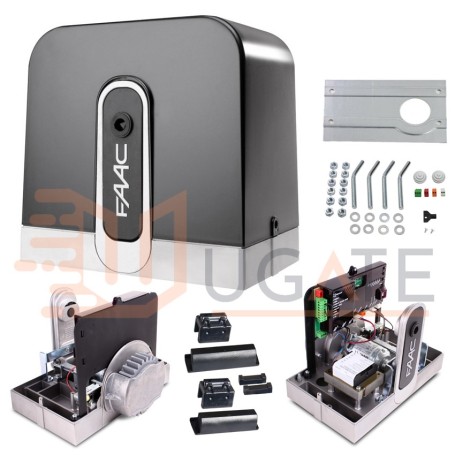

The package includes:

1 Gearmotor FAAC C720

1 Electronic card E721

1 Ground fixing plate

1 Magnetic limit switch unit opening and closing

1 Installation manual

SPECIFICATIONS:

Mains supply voltage: 220-240V~50/60Hz

Electric motor: 24V brushed motor

Max power: 170 W

Max torque: 18 Nm

Max thrust force: 320 N

Reduction ratio: 1:49

Max leaf width: 15 m

Leaf speed: 18 m/min (adjustable)

Speed regulation and motor control: Yes - Electronic regulation

Limit switch: Magnetic

Sprocket: Z28 module 4

Encoder: Electronic encoder

Force regulation: Via electronic board

Operating ambient temperature: -20°C ÷ +55°C

Degree of protection: IP44

Weight: 8 Kg

Dimensions (WxDxH): 304 x 180 x 282 mm

Leaf weight: 400 Kg

Usage Frequency: 1

Electronic equipment: Built-in E721

Warranty 24 Months
