FAAC 10675201 770N
EAN 8055195027488

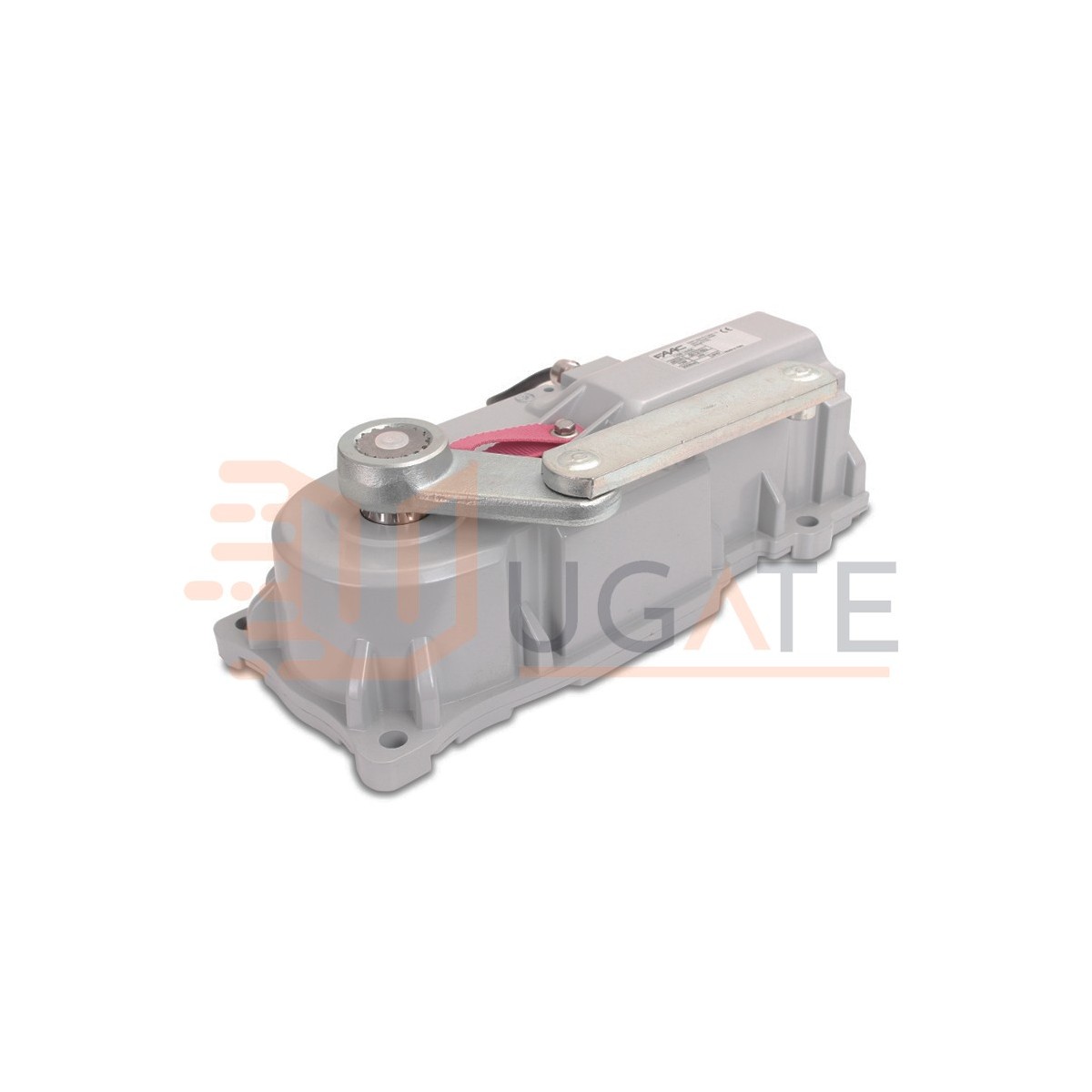

Irreversible underground electromechanical actuator for swing gates original FAAC 770N 230V.
Self-supporting motor 230V for doors up to a maximum of 500 kg in weight and 3.5 m in length.
Possibility of manual release with innovative patented system with lever and personalized European key (release system not included).
Double layer polyester painting that guarantees high water resistance and allows installation even in saline environments.
Engine with mechanics totally in metal and bronze, in this engine there are no plastic parts or nylon compounds.
Compatible with hinged door control panels FAAC 452MPS, 462DF, 455D, E045, E145, E045S, E145S
In the package:
1 Motor 770N 230V
1 capacitor 12.5 uF
1 pinion bracket
1 Connecting rod bracket
1 accessory sachet with nuts and bolts
SPECIFICATIONS:
Mains supply voltage: 220-240V~50/60Hz
Electric motor: Asynchronous single-phase
Max power: 380 W
Max torque: 330 Nm (*)
Max angular velocity: 6 °/s (*)
Leaf weight: 500 Kg (see chart)
Max door opening angle: 110° (140° and 180° with optional kit)
Operating ambient temperature: -20°C ÷ + 55°C
Thermoprotection: 140°C
Degree of protection: IP67
Weight: 12 Kg (with 14 Kg carrier box)
Usage Frequency: S3 30%
Max leaf width: 2 m (3.5 m with electric lock)
Dimensions (WxDxH): 362 x 153 x 127 (carrier 430 x 307.5 x 214) mm
Electronic equipment: Not included
Warranty 24 Months
