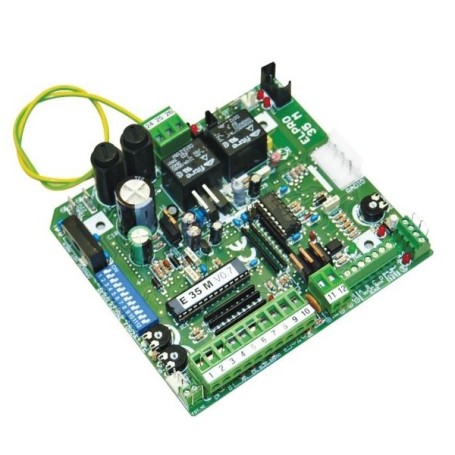

Control programmer for BART 350 Master FADINI ELPRO 35M 3518L
Lowest price within 30 days before promotion. €139.00
Fast delivery
Available material shipped within 2-3 days
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...
Read more
Single photocell that replaces all traditional photocells and reflexes
Thanks to ToF laser technology, OPTIGATE can replace any pair of photocells and reflex photocells, operating...
Read more
Holiday shipping: what you need to know and why we have chosen to thank you
During the Christmas holidays, shipments may be delayed due to public holidays and logistical difficulties...
Read more
FADINI
Item Number: 3518L
MOD.: ELPRO 35M
PRODUCT DESCRIPTION FADINI 3518L:
COMPATIBILITY
Electronic control programmer for BART 350 Master.
OPERATING LOGIC
Automatic, semi-automatic, automatic stepper step, pedestrian and preflashing.
MAIN FUNCTIONS
Simplified programming with a single button: self-learning stroke management, slowdowns, reversing to impact with obstacle, predisposition for connection to ELPRO 35S, slave card. Intuitive adjustments via trimmer and dip-switch, green/red diagnostic LEDs for easy evaluation of automation status. Self-test photocells (DSA), self-test safety coasts (DACS), logic system (RT DATA). Operating temperature -20 °C +55 °C.
SPECIFICATIONS:
1PH power supply (Vac - Hz): 230 - 50
3PH board power supply (Vac - Hz): -
Max motor power (W): 200
Courtesy light output (Vdc - mA): 24 - 50
Photocell/selector/radio receiver output (Vdc - mA): 24 - 500
Indicator light output (Vdc - W): 24 - 1
Output for DSA control (Vdc): 24
Flashing output (Vdc): 24
Working time(s):-
Pause Time(s): 1 - 120
Closing door delay time (s): -
Pedestrian opening time(s): -
Item Number: 3518L
MOD.: ELPRO 35M
PRODUCT DESCRIPTION FADINI 3518L:
COMPATIBILITY
Electronic control programmer for BART 350 Master.
OPERATING LOGIC
Automatic, semi-automatic, automatic stepper step, pedestrian and preflashing.
MAIN FUNCTIONS
Simplified programming with a single button: self-learning stroke management, slowdowns, reversing to impact with obstacle, predisposition for connection to ELPRO 35S, slave card. Intuitive adjustments via trimmer and dip-switch, green/red diagnostic LEDs for easy evaluation of automation status. Self-test photocells (DSA), self-test safety coasts (DACS), logic system (RT DATA). Operating temperature -20 °C +55 °C.
SPECIFICATIONS:
1PH power supply (Vac - Hz): 230 - 50
3PH board power supply (Vac - Hz): -
Max motor power (W): 200
Courtesy light output (Vdc - mA): 24 - 50
Photocell/selector/radio receiver output (Vdc - mA): 24 - 500
Indicator light output (Vdc - W): 24 - 1
Output for DSA control (Vdc): 24
Flashing output (Vdc): 24
Working time(s):-
Pause Time(s): 1 - 120
Closing door delay time (s): -
Pedestrian opening time(s): -
