Automation kit for overhead garage doors 24v BFT PHEBE BT A U R915150 00002

BFT

CODE: R915150 00002
EAN: 8027908506573
MOD.: PHEBE BT A U KIT ITA

Complete kit for automation of overhead garage doors original BFT KIT PHEBE.

Electromechanical operator for residential use for the automation of overhead garage doors.

The built-in control unit allows the management of the second operator for installations on large doors or with integrated pedestrian door.

The microprocessor technology also allows you to manage the torque of the motors with maximum precision and in complete safety.

Operator BFT PHEBE N 24V irreversible, for semi-intensive use, for tilting doors with a maximum surface area of 7 square meters, with maneuvering time 17-20 seconds.

Being in low voltage it is equipped with electronically managed anti-crushing, so it makes the automation much safer.

The cable transmission shaft makes the adjustment of the transmission tubes much easier during installation

Not having to be precise in cutting and positioning towards the telescopic arms, there is about 15cm of margin inside the engine

where you can slide the drive shafts. Square profile transmission shafts to facilitate attachments and installation on the door.

Integrated control panel on board BFT VEGA: control unit for 1 or 2 operators for tilting doors in 24V max 168W per motor.

Equipped with removable terminal blocks, programming via display, built-in bi-channel receiver, anti-crushing, slowing down in opening and closing and U-Link technology.

Control panel compatible with BFT HYDRA and HYDRA R models.

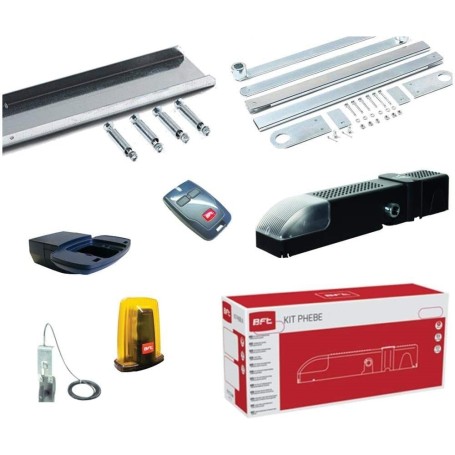

The kit consists of:
1 PHEBE BT A U Operator 24V for overhead doors max 8mq - Electromechanical limit switch
1 CBA Pair of straight telescopic arms for installation with lateral space greater than 15mm
1 MITTO B RCB 04 R1 Quad Channel Radio Control 433MHz Rolling Code - Color BLUE
1 B 00 R02 Wall mount for flashing lights RADIUS/IPNOS range
1 RADIUS LED BT A R1 Flashing 24V LED technology with integrated antenna
1 CMS Signpost
1 VEGA Control unit for 1 or 2 motors integrated in PHEBE BT A - Display, U-LINK
1 CLONIX 64 Receiver R. Code 64 Users 4 Channels 433MHz - Ch.1 START, Ch.2,3,4 FREE - Integrated on control panel

Warranty 24 Months
