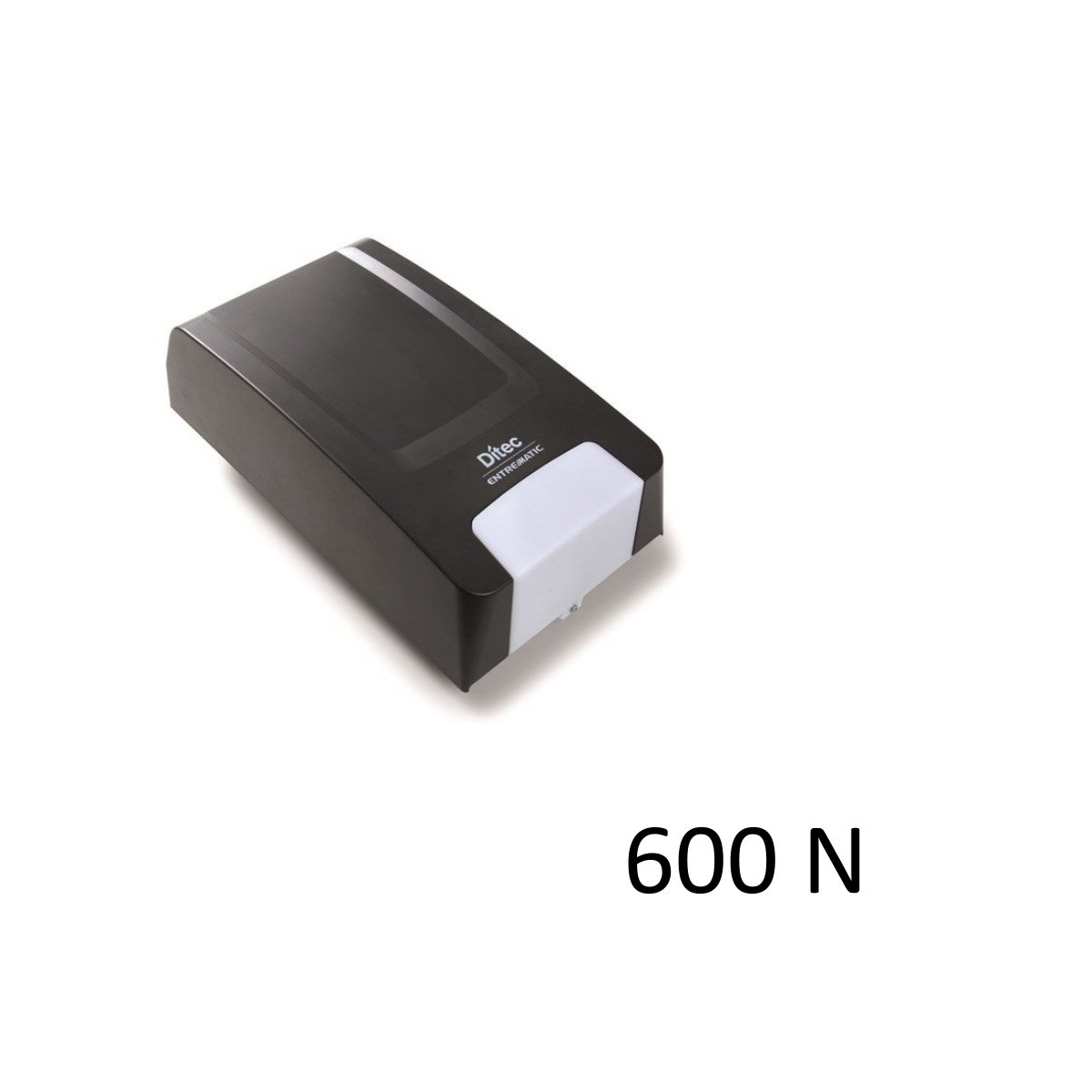

24V motor actuator for sectional garage doors DITEC ENTREMATIC TOP603H

The DITEC TOP603H drive unit is the ideal solution for the automation of balanced sectional doors with a surface area of up to 9.5 m². Designed for frequent use, this device combines a powerful and quiet motor with a belt drive system, ensuring efficiency and reliability.

Key features:

• Powerful Motor: Equipped with a 24V motor with a pulling force of 600 N, the DITEC TOP603H offers high performance for large sectional doors.
• Belt Drive System: Ensures quiet and smooth operation, minimizing noise when opening and closing.
• Integrated Control Panel: Facilitates installation and management of the system, with an LED display for quick and easy programming.
• Advanced Safety: The motor incorporates a gear block to prevent unwanted reopening from the outside. The remote control with rolling code signal is impossible to clone, offering additional protection against unauthorized access attempts.
• Robust and Reliable Design: Built with high-quality materials, the TOP603H guarantees a long life and resistance over time.
• Built-in Courtesy Light: Improves visibility during use at night or in dimly lit environments.

Technical specifications:

• Maximum Capacity: 9.5 m²
• Service Class: 3 (frequent use)
• Intermittent: S2 = 5 min, S3 = 25%
• Power supply: 230 Vac / 50/60 Hz
• Engine Power Supply: 24 Vdc
• Power consumption: 140 W
• Opening Speed: 0.21 m/s
• Closing Speed: 0.14 m/s
• Operating Temperature: -20°C / +50°C
• Protection Grade: IP 20
• Noise level: ≤ 69 dB (A)
• Standard Radio Frequency: 433.92 MHz

Included in the Box:

• 1 drive unit with built-in control panel and radio
• Courtesy light
• 2 four-function rolling code remote controls (four-channel ZEN)

Product Advantages:

• Easy Installation: Quick and easy assembly thanks to the intuitive design and LED display for immediate programming.
• Reliability and Durability: Designed to withstand intensive use, ensuring constant performance over time.
• Guaranteed Security: Advanced protection against unwanted reopening and remote control cloning.

Why choose DITEC TOP603H?The DITEC TOP603H is an excellent choice for those who need an automation system for balanced sectional doors, combining power, safety and ease of use. Invest in a product that offers superior performance and the peace of mind of a renowned brand like DITEC.

Buy Now!Don't miss the opportunity to improve the functionality and safety of your sectional doors with the DITEC TOP603H drive unit. Order today and see the difference of superior automation!
