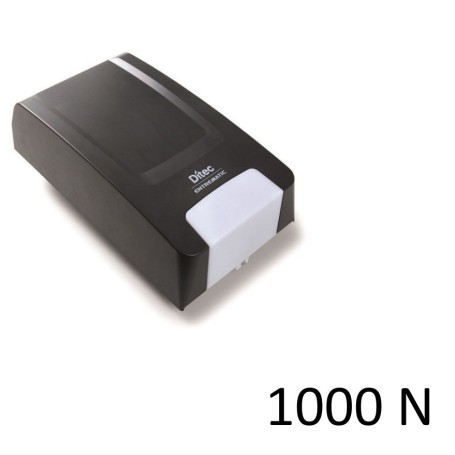

24V motor actuator for sectional garage doors DITEC ENTREMATIC TOP903H

The DITEC TOP903H drive unit is designed for the automation of balanced sectional doors with a surface area of up to 17.3 m². This device is ideal for frequent use, thanks to its powerful 24V motor and belt drive system, which guarantee high and quiet performance.

Key features:

• Powerful Motor: Equipped with a 24V motor with a pulling force of 1000 N, the TOP903H is capable of handling large sectional doors and weights of up to 210 kg.
• Belt Drive System: Ensures quiet and smooth operation, minimizing noise during opening and closing operations.
• Integrated Control Panel: Includes an LED display for quick and easy programming, making it easy to install and manage the system.
• Advanced Functions: In addition to the features of the TOP603H model, the TOP903H offers the function of partial opening via remote control, customizable light switch-off, a speed counter and the possibility of controlling accessories via an add-on card.
• Safety: The motor includes a gear lock to prevent unwanted reopening from the outside, while rolling code remote controls are impossible to clone, offering advanced protection against unauthorized access.
• Built-in Courtesy Light: Improves visibility during use at night or in dimly lit environments.

Technical specifications:

• Maximum capacity: 17.3 m²
• Service Class: 3 (frequent use)
• Intermittent: S2 = 5 min, S3 = 25%
• Power supply: 230 Vac / 50/60 Hz
• Engine Power Supply: 24 Vdc
• Torque/Thrust: 1000 N
• Power consumption: 170 W
• Opening Speed: 0.21 m/s
• Closing Speed: 0.14 m/s
• Operating Temperature: -20°C / +50°C
• Protection Grade: IP 20
• Noise level: ≤ 69 dB (A)
• Standard Radio Frequency: 433.92 MHz
• Warranty: 24 Months

Included in the Box:

• 1 drive unit with built-in control panel and radio
• Courtesy light
• 2 four-function rolling code remote controls (four-channel ZEN)

Product Advantages:

• Easy Installation: Thanks to the user-friendly design and LED display, assembly and programming are quick and easy.
• High Performance: The powerful motor and belt drive system ensure efficient and quiet operation even for large doors.
• Advanced Features: New partial opening and accessory control features provide greater control and flexibility.
• Maximum Security: Advanced protection against unwanted reopening and remote control cloning attempts.

Why Choose DITEC TOP903H?The DITEC TOP903H is the perfect choice for those looking for an automation system for large balanced sectional doors, combining power, safety and ease of use. With its advanced features and quality guaranteed by DITEC, it is a safe investment to improve the functionality and security of your doors.

Buy Now!Don't miss the opportunity to enhance your experience with balanced sectional doors thanks to the DITEC TOP903H drive unit. Order today and see the difference of superior automation!
