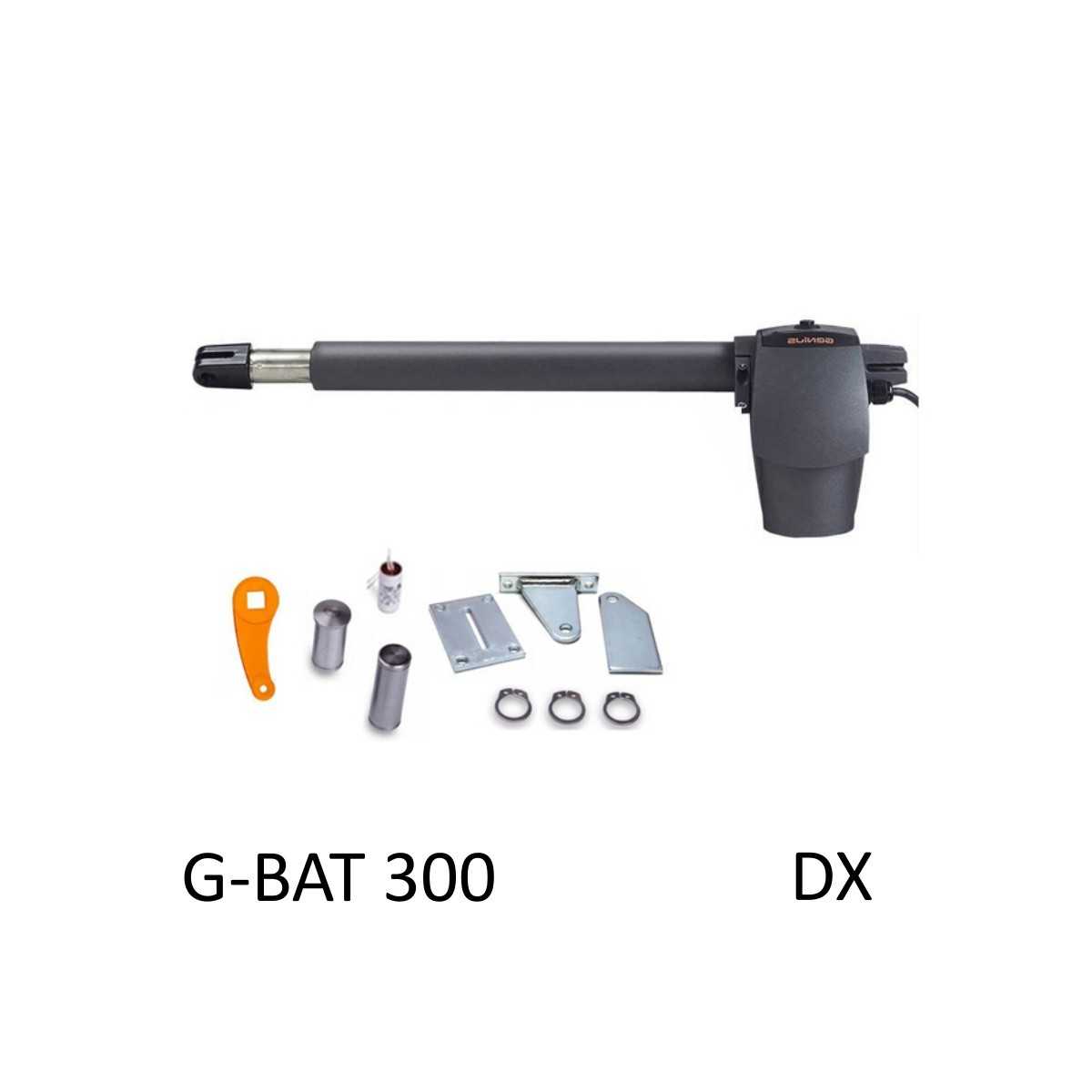

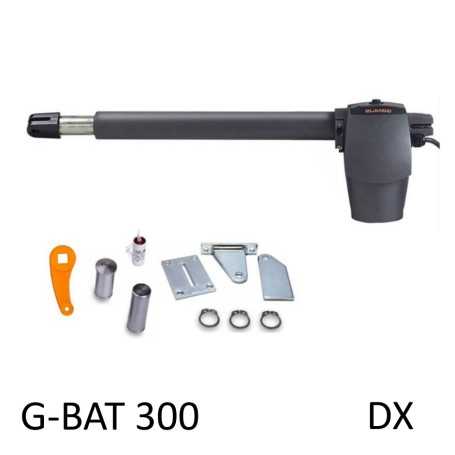

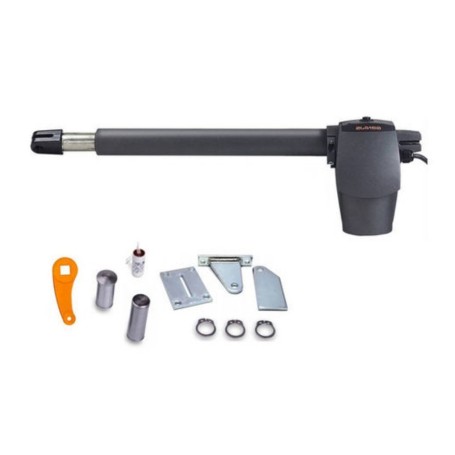

Motor Actuator for swing gates G-BAT 300 DX GENIUS 6170026 FAAC GENIUS

The G-BAT 300 operator is the model that is put inside the GENIUS kits, so this operator can be purchased as a spare part in case of problems or failures to those of the kit.

Particular attention should be paid to checking the model well when buying this operator. In fact, the G-BAT exists in different versions that are all aesthetically very similar. Check the nameplate to see if the model exactly matches the one you are buying. Another peculiarity of these engines is that they exist in the right or left version. By convention, the right or left is always established with an internal view from the side where the motors are installed.

What are the technical characteristics of the G-BAT 300 by GENIUS?

• Power Supply (V): 230
• Electric Motor (V): 230
• Rated Power (W): 280
• Current (A): 1.2
• Thermal protection (°C): 140
• Inrush Capacitor (μF): 8
• Thrust (from N): 350
• Stroke (mm): 300
• Max. Speed (cm/sec.): 1.6
• Frequency of use at 20°C: S3 - 30%
• Operating Temp.(°C): -20 +55
• Degree of protection: IP54
• Weight (kg): 6.5
