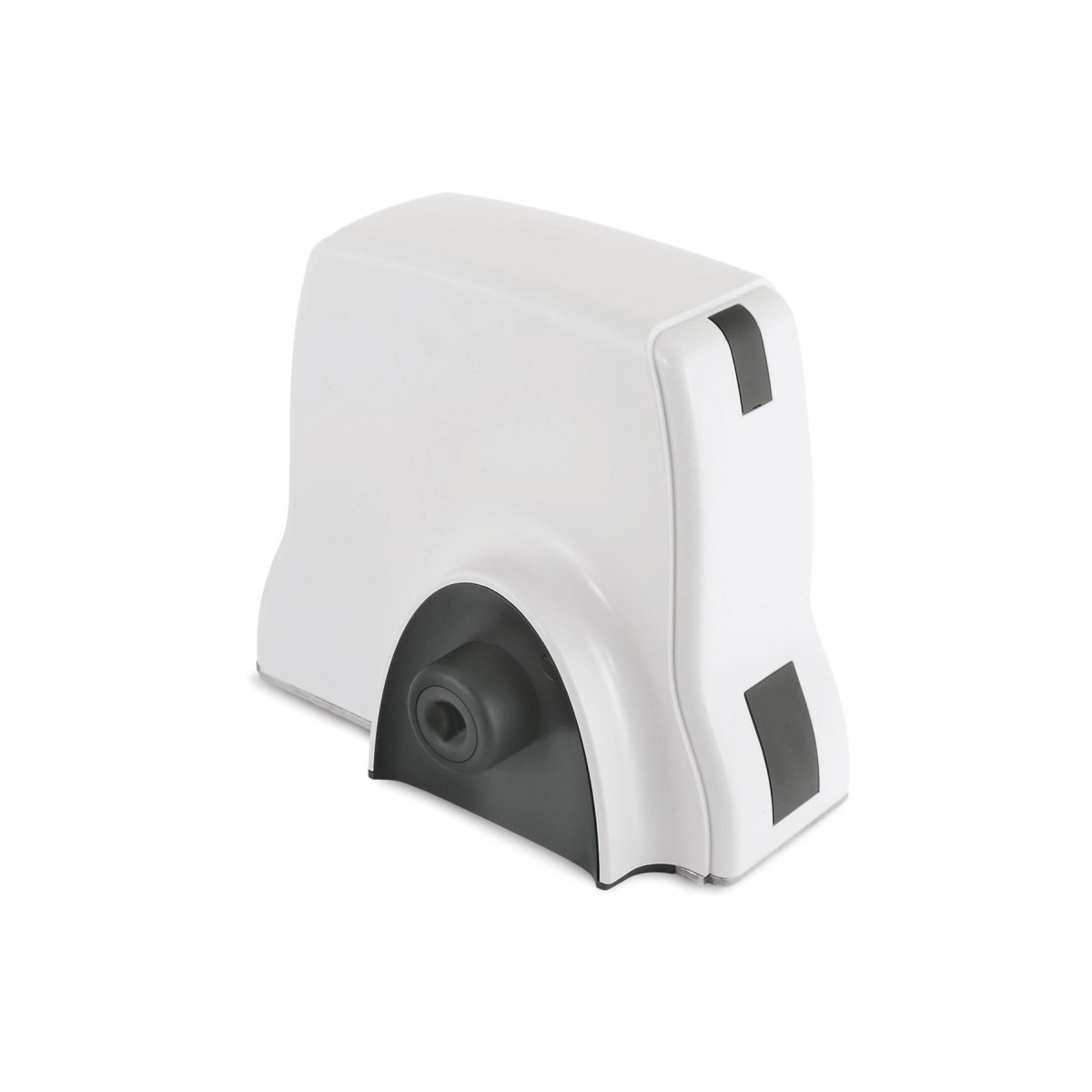

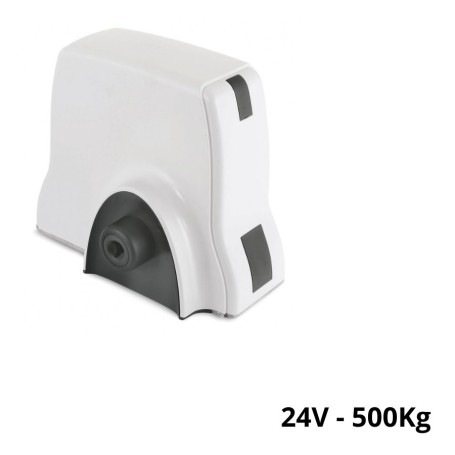

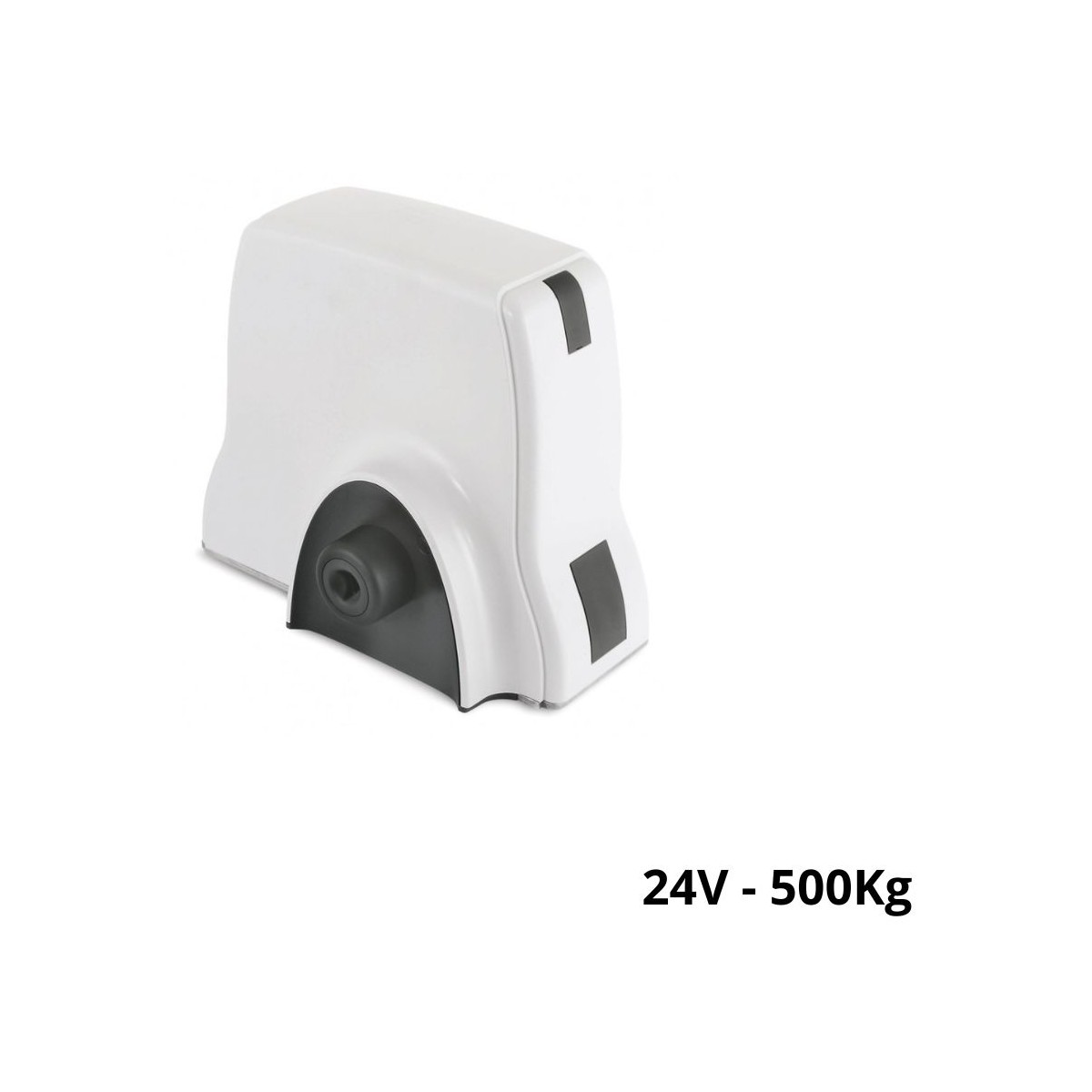

SL544 24V irreversible gearmotor for sliding gates GIBIDI 975044

24V operator for sliding gates with built-in control unit on display and simplified programming. This control unit is really very easy to program, in fact, thanks to the large display and the WIZARD system, it allows the basic setting in just a few minutes. All you have to do is answer the questions that the display asks the installer to find yourself at the end of the programming with the automation perfectly programmed.

The SL544 is able to handle doors weighing up to 500 kg even with intensive use. This does not mean that it can be installed on a condominium, but on a house that has up to a dozen users, this motor is perfectly able to withstand the workload.

This operator fully replaces all older 24V SL models such as: SL244, SL344. The control unit on board is different and therefore the connections must be remade and the remote controls in possession, if they have a frequency of 433MHz and GIBIDI must be reprogrammed on the new receiver. The new engine incorporates a control unit with a display, which is easy to program thanks to the driving functions that are displayed directly on the control unit.

The anchor plate of the old SL can be reused as the base is the same.

What are the technical characteristics of the SL544 of the GIBIDI?

• Use: INTENSIVE
• Frequency of use: 0.9
• Motor power supply: 24 Vdc
• Power consumption: 100W
• Degree of protection: IP55
• Speed: 220 mm/s (13 m/min) - Z=16 M4
• Max torque: 12 Nm
• Nominal torque: 6 Nm
• Torque Adjustment: ELECTRONIC
• Speed Adjustment: YES
• Max. leaf weight: 500 Kg
• Operating Temp.: -20°C +60°C
• Max. leaf length: 6 m
• Lubrication: GREASE GBD WH-01
• Operator weight: 8 Kg
