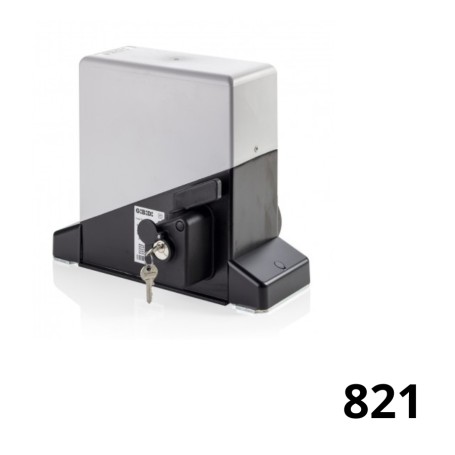

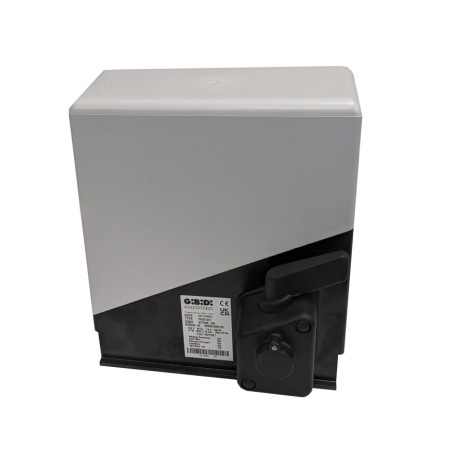

PASS 821 Gearmotor PASS 800 GIBIDI: Compatible with old models - Without electronic board

The GIBIDI PASS 800 is an electromechanical gearmotor designed to automate sliding gates up to 800 kg. This product, the result of years of experience and continuous development, is the ideal solution for those who want to replace old operators GIBIDI of the PASS 4, 6, 600 and 800 models.

Key benefits:

• Compatibility: The PASS 800 is backward compatible with older installations, allowing you to replace the motor without having to change the foundation plate or rack height.
• Ease of installation: Thanks to the intuitive design and clear instructions, the installation of the PASS 800 is within everyone's reach.
• Reliability: Built with high-quality materials, the PASS 800 guarantees long-lasting performance.
• Versatility: Available in different versions, the PASS 800 adapts to any need.

Technical Information:

• Use: INTENSIVE
• Frequency of use: 0.4
• Motor power supply: 230 Vac - 50/60 Hz
• Power consumption: 400W
• Degree of protection: IP55
• Speed: 160 mm/s (9.6 m/min) - Z=16 M4
• Max torque: 24 Nm
• Max. leaf weight: 800 Kg
• Operating Temp.: -20°C +60°C
• Thermal protection: 140°C
• Lubrication: PH-01 GBD OIL
• Operator weight: 12 Kg

Warnings:

• For the replacement of very old motors, it is advisable to consider the complete replacement of the system, as the old electronic boards may not be compatible with the new technologies.
• If you need the PASS 800 with a central on board, we invite you to purchase the PASS 841E model.
