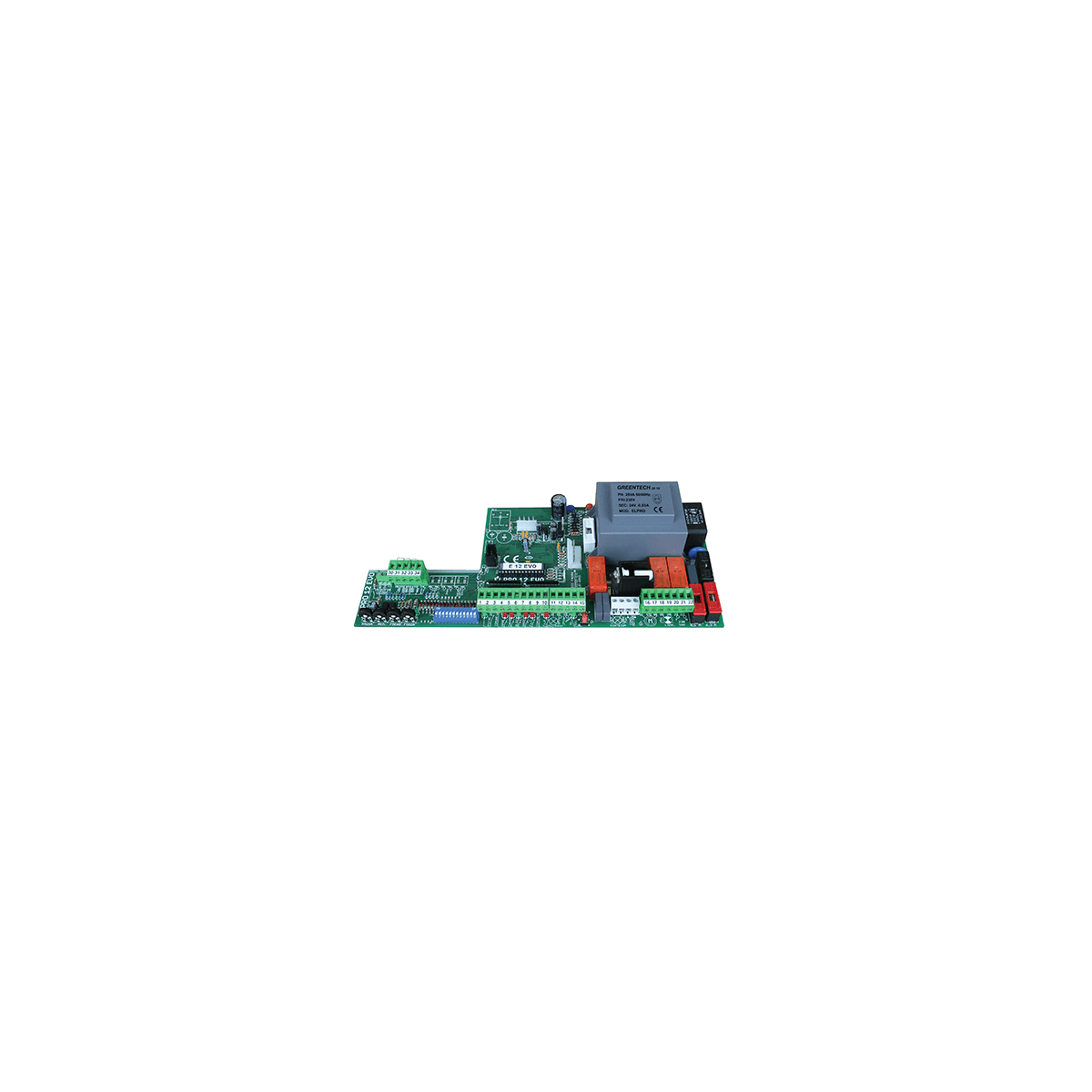

Control programmer for NYOTA 115 EVO FADINI ELPRO 12 EVO 7063L
Lowest price within 30 days before promotion. €169.40
Fast delivery
We ship available products within 24/48 hours
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
-
Automation and renovation: the future is at EDIL EXPO ROME 2025!
Discover how automated shutters, energy efficiency and renovation bonuses can transform your home or building...Read more
FADINI
Item Number: 7063L
MOD.: ELPRO 12 EVO
PRODUCT DESCRIPTION FADINI 7063L:
COMPATIBILITY
Electronic control programmer for NYOTA 115 EVO.
OPERATING LOGIC
Automatic, semi-automatic, automatic step by step, man present, pedestrian and pre-flashing.
MAIN FUNCTIONS
Simplified programming with a single button: electronic brake, programmable slowdowns, preparation for external clock, preparation for master/slave, obstacle reversal via encoder. Self-test photocells (DSA), self-test safety coasts (DACS), logic system (RT DATA). Operating temperature -20 °C +55 °C.
SPECIFICATIONS:
1PH power supply (Vac - Hz): 230 - 50
3PH board power supply (Vac - Hz): -
Max motor power (W): -
Courtesy light output (Vac - W - min): 230 - 100 - 3
Photocell/selector/radio receiver output (Vac - mA): 24 - 500
Indicator light output (Vac - W): 24 - 3
Output for DSA control (Vdc - mA): -
Flashing output (Vac - W): 230 - 25
Working Time(s): 1 - 200
Pause Time(s): 2 - 128
Closing door delay time (s): -
Pedestrian opening time(s): 2 - 30
Item Number: 7063L
MOD.: ELPRO 12 EVO
PRODUCT DESCRIPTION FADINI 7063L:
COMPATIBILITY
Electronic control programmer for NYOTA 115 EVO.
OPERATING LOGIC
Automatic, semi-automatic, automatic step by step, man present, pedestrian and pre-flashing.
MAIN FUNCTIONS
Simplified programming with a single button: electronic brake, programmable slowdowns, preparation for external clock, preparation for master/slave, obstacle reversal via encoder. Self-test photocells (DSA), self-test safety coasts (DACS), logic system (RT DATA). Operating temperature -20 °C +55 °C.
SPECIFICATIONS:
1PH power supply (Vac - Hz): 230 - 50
3PH board power supply (Vac - Hz): -
Max motor power (W): -
Courtesy light output (Vac - W - min): 230 - 100 - 3
Photocell/selector/radio receiver output (Vac - mA): 24 - 500
Indicator light output (Vac - W): 24 - 3
Output for DSA control (Vdc - mA): -
Flashing output (Vac - W): 230 - 25
Working Time(s): 1 - 200
Pause Time(s): 2 - 128
Closing door delay time (s): -
Pedestrian opening time(s): 2 - 30
