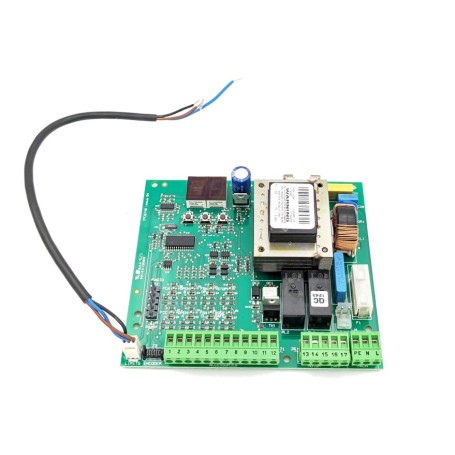

FAAC 740D Control Panel for 740D Sliding Gates 202269

The FAAC 740D control unit is a reliable and versatile solution for managing sliding gates. Compatible with the FAAC 740, FAAC 741 and GENIUS Sprint 382 JA382 motors, this original control unit is ideal for those who want to automate their gate with high-level functions and an intuitive interface.

Main technical features:

• Supply voltage: 230V~ (+6%-10%) 50 (60) Hz.
• Maximum power: 10 W (central), 1,000 W (motor).
• Maximum accessory load: 0.5 A
• Simplified programming: via 3 keys (+, -, F) and display, with "basic" or "advanced" mode.
• Operating logics: it offers different modes including Automatic, Semi-automatic, Safety and Deadman, with the possibility of mixed logics to customize use.

Programmable Functions:

• Operating logic.
• Working time and break (programmable from 0 to 4 minutes).
• Pushing force (adjustable to 50 levels).
• Gate direction, starting and braking torque.
• Electronic anti-crushing safety devices with optional encoder.
• Management of slowdowns, partial opening and cycle counter.

Connectivity and Installation:

• Terminal block inputs: Open, Partial Open, Safety (opening and closing), Stop, Coast, Power + Ground.
• Terminal block outputs: Flasher, Motor, 24V accessory power supply, 24V pilot light, Timed output.
• Quick connector: support 5-pin cards (MINIDEC, DECODER, RP receivers).

Additional Specifications:

• Protection fuses: 2.
• Operating temperature: -20°C ÷ +55°C

Why choose FAAC 740D?

With its advanced features and easy programming, the FAAC 740D control panel offers excellent performance, security, and optimal control for sliding gates. Rely on an original product FAAC for the highest quality and durability.
