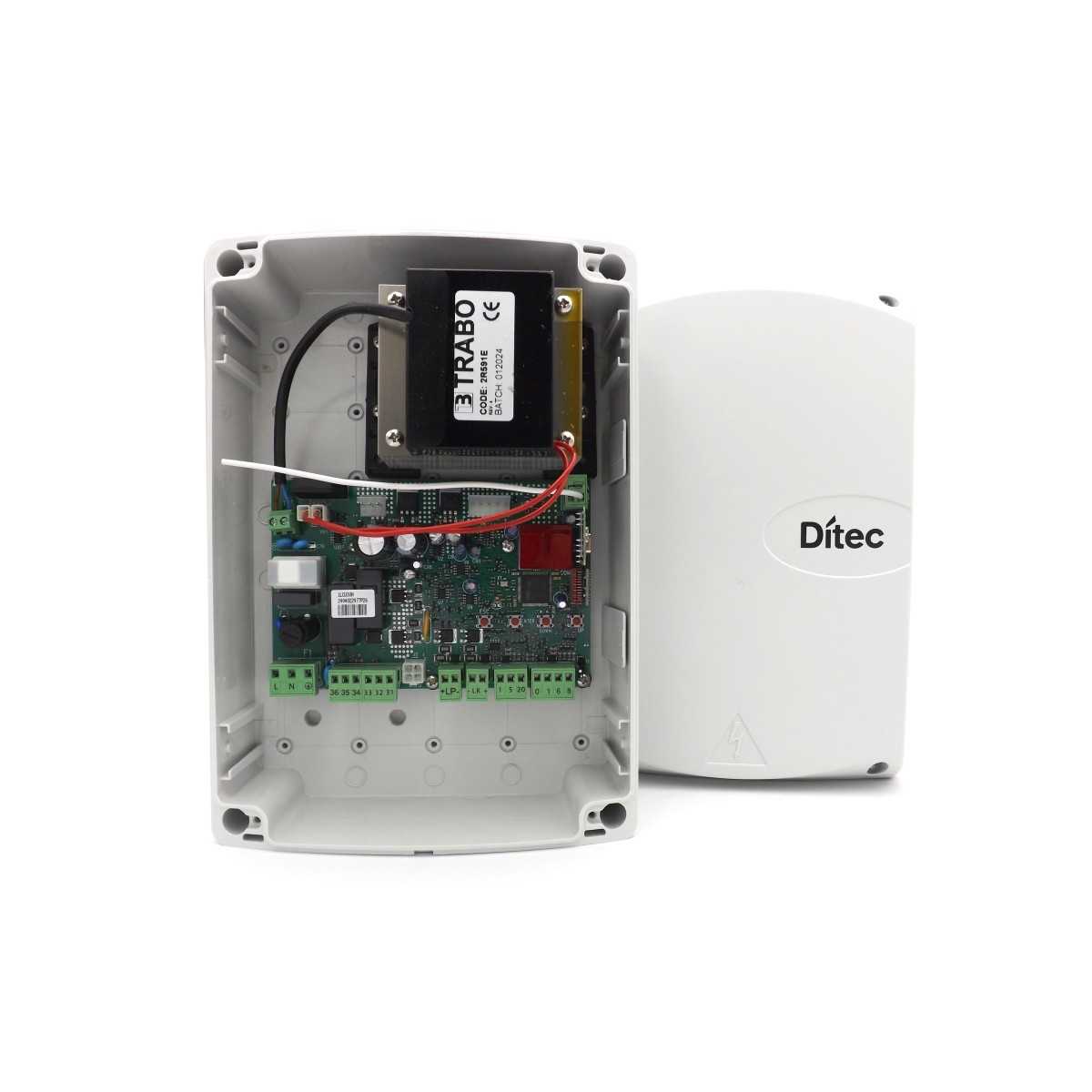

Control Panel Centre Control Board 24v Original Motors DITEC ENTREMATIC LCU30H

Control unit complete with watertight box and transformer for 24V operators of the DITEC. The control unit is supplied complete with an integrated 433 MHz receiver.

Programming takes place via display and has a series of customizable parameters including:

• acceleration time,
• deceleration and start-up, the slow-down distance and the approach speed in opening and closing.

Can be used with engines: PWR25H - PWR35H - PWR40H - FACIL3H - ARCBH

What are the main features of the LCU30H control unit of the DITEC?

• Control panel for 1 or 2 24 Vdc motors with built-in radio
• Frequency 433.92 MHz as standard
• Energy Saving YES
• Mains power supply 230 V - 50/60 Hz
• Motor power supply 24 V / 2x6 A
• Accessory power supply 24 V / 0.3 A (0.5 A peak)
• Virtual Encoder Stroke Management
• Limit switch predisposition YES
• Degree of protection IP 55
• Operating temperature -20°C / +55°C (-35°C / +55°C with NIO activated)
• Dimensions 187x261x105
