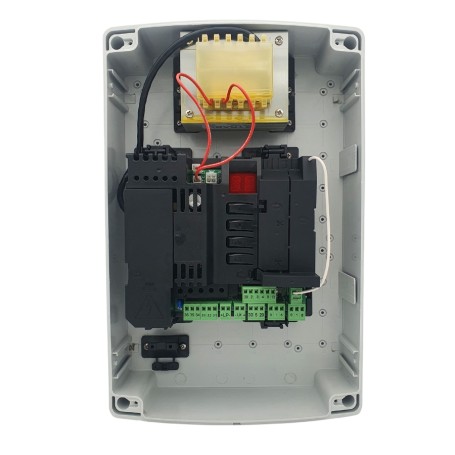

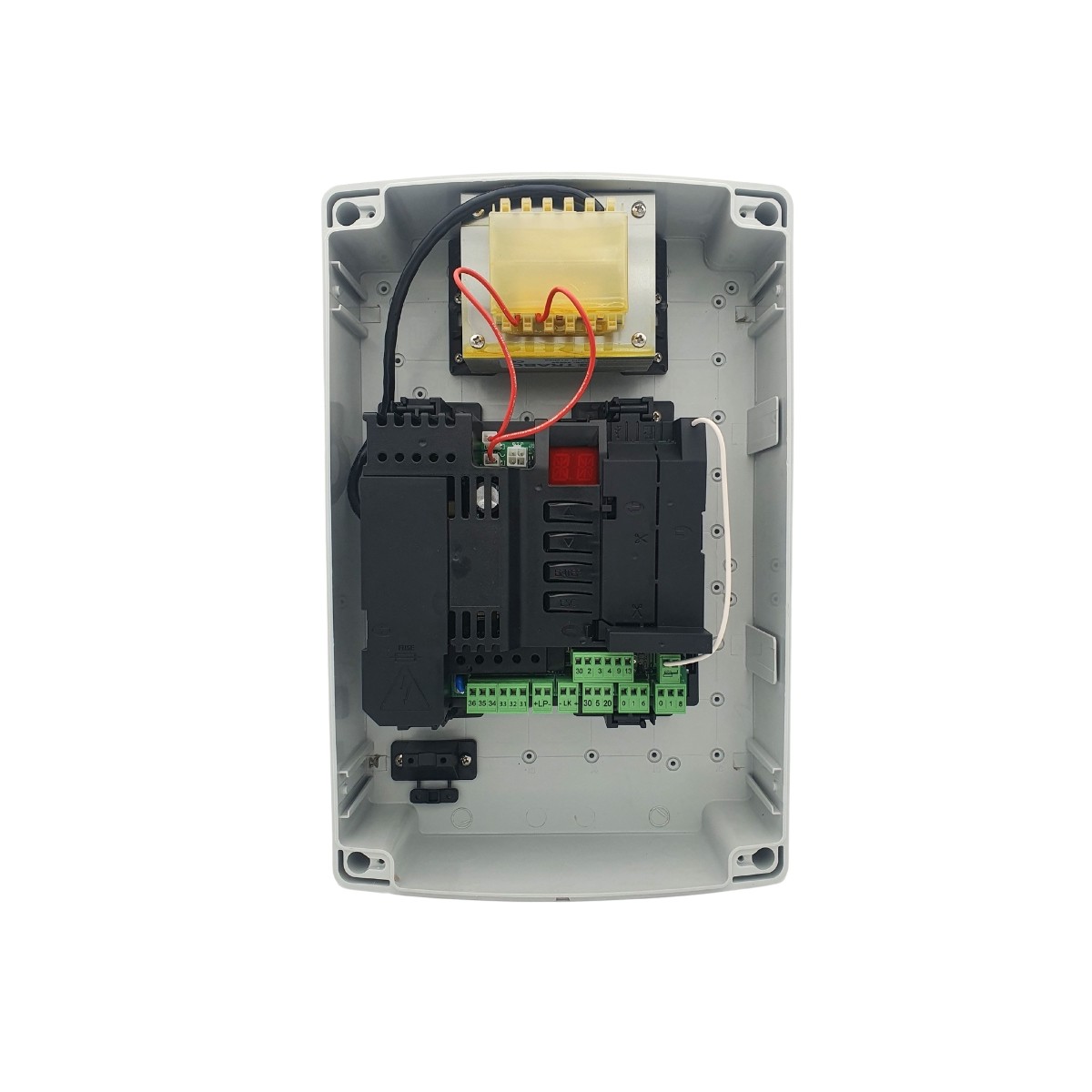

Control unit DITEC LCU40H for 1 or 2 24V motors – with 433 MHz radio – Code NALCU40H

The LCU40H DITEC control unit (code NALCU40H) is designed to manage 1 or 2 24 Vdc motors with a maximum absorption of 2 x 12 A, making it ideal for residential and industrial applications with PWR, FACIL, ARC, CUBIC and DOROR actuators.

It has an integrated radio receiver at 433.92 MHz for remote control, and supports stroke management via virtual encoder, with provision for limit switches. The electronics are housed in an IP55-rated enclosure, which is suitable for outdoor use.

Main technical features:

• Power supply voltage: 230 V – 50/60 Hz

• Motor power supply: 24 Vdc / 2 x 12 A max

• Accessory power supply: 24 Vdc / 0.5 A

• Built-in radio: 433.92 MHz

• Engine compatibility: PWR, FACIL, ARC, CUBIC, DOR

• Ride management: Virtual encoder

• Limit switch predisposition: Yes

• Degree of protection: IP55

• Operating temperature: -20°C to +55°C (down to -35°C with active NIO technology)

• Dimensions: 238 x 357 x 120 mm

• Warranty: 24 months

An efficient and advanced solution, the LCU40H control unit guarantees energy savings and reliability even in difficult environmental conditions.
