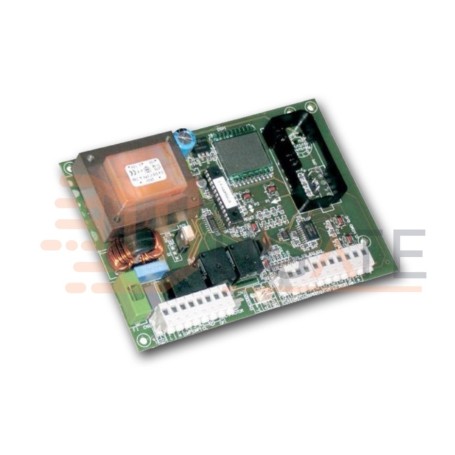

Central Equipment Control Board for barriers LYNX 06 230V GENIUS 6100240

GENIUS 6100240 LYNX 06 230V

Incorporated in Spin 4 C barriers

SPECIFICATIONS:

Supply voltage (Vac): 230 (+6% -10%) 50Hz

Power consumption (W): 3

Motor power consumption (W): 500

load (mA): 500

Power supply and load max. flashing: 230 Vac 25 W

Power supply and load battery status light (max): 24 Vdc 5 W

Operating Temperature (°C): -20 +55

Protection fuses: F1= T5A (primary transformer and motor) F2= T500mA (accessories and indicator lamp)

Operating logics: Automatic / Automatic step-by-step / Semi-automatic / Semi-automatic step-by-step / Condominium

Opening / closing time: Self-learning during the first maneuver

Pause time: Nine selectable levels up to a maximum of 4 minutes

Motor force: Adjustable on several levels

Slowdown time: Three selectable levels

Obstacle detection: With encoder

Selectable functions: Operation with or without encoder / Encoder sensitivity / Auto close /

Operation of the open entrance / Condominium function / Percentage of slowdown / Heating function /

Immediate closing / Timer function / Soft start / Photocell operation / Maintenance request

Terminal block inputs: Opening / Closing / Photocells / Limit switch in opening / Limit switch in closing / Stop / Mains power supply / Grounding

Connector inputs: Radio Module / Inrush Capacitor / Encoder

Terminal block outputs: Accessory power supply / Flashing light / Motor / Indicator lamp

Warranty 24 Months
