Control Board Control Board Original Electronic Equipment FAAC E124 790284

FAAC E124 790284

EAN 8055195012996

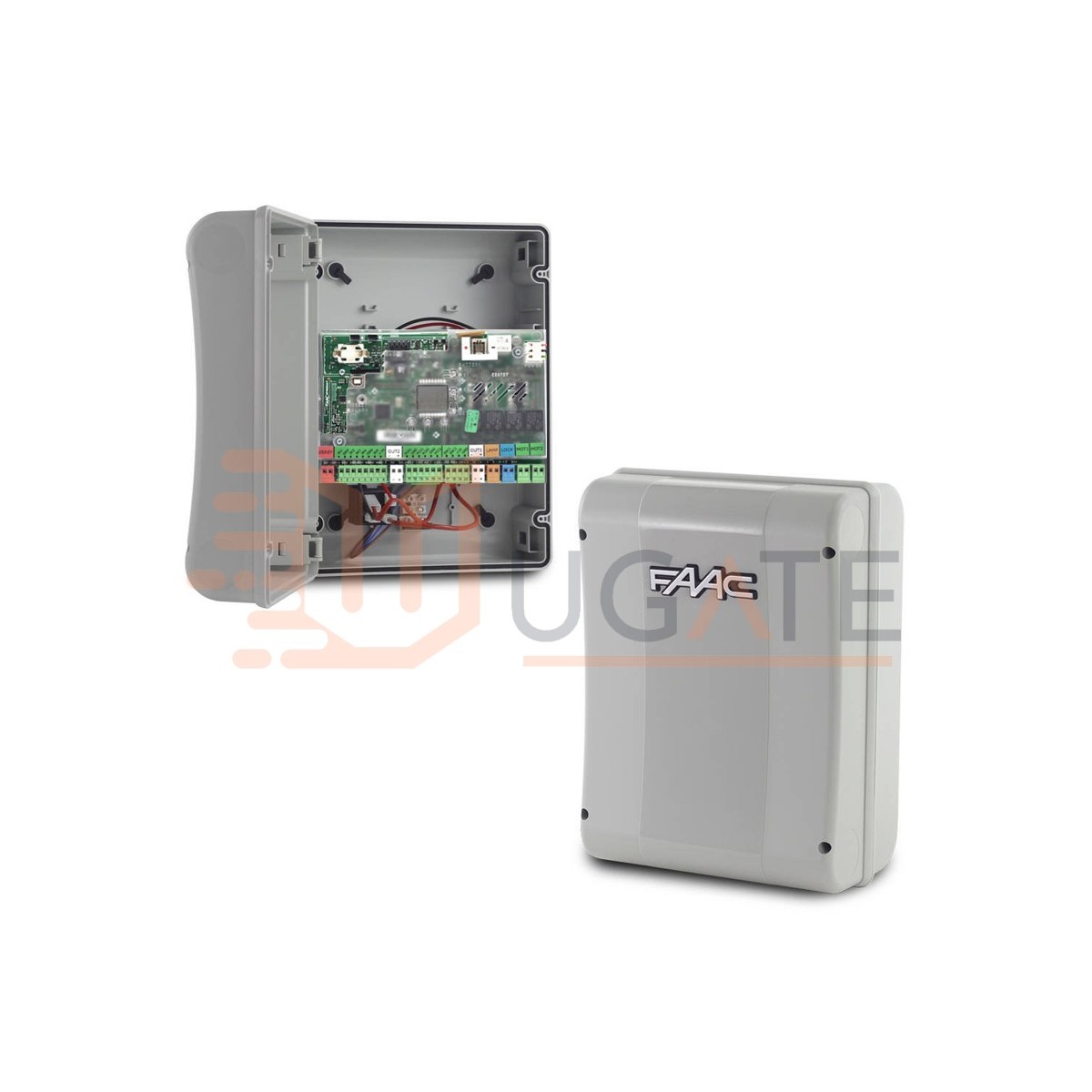

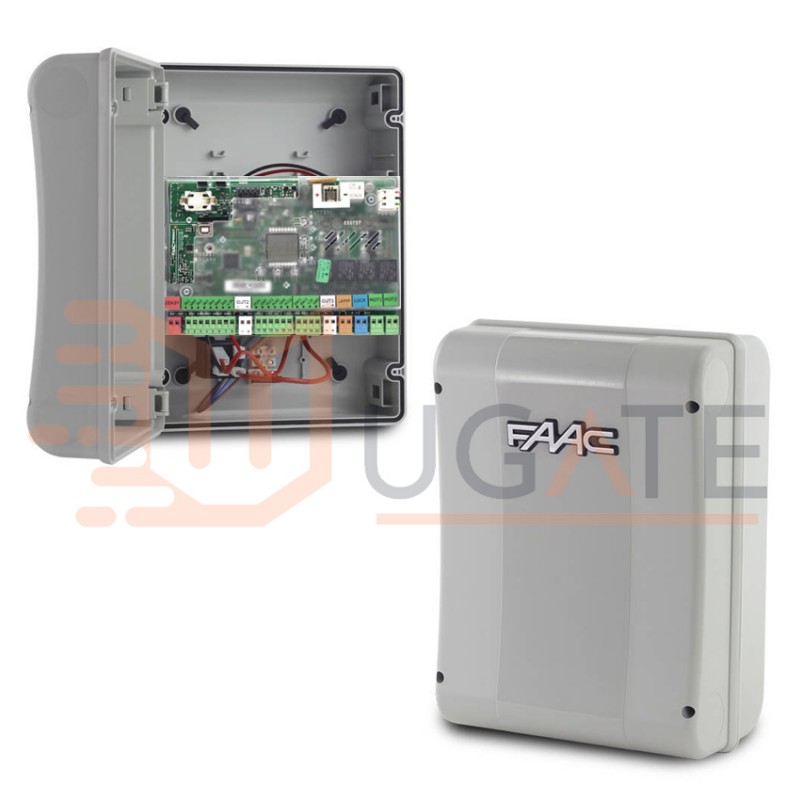

Original control centre FAAC.

Top of the range FAAC control unit for 24V swing automations, equipped with display

and advanced programming software that allows the retail setting of any automation parameter.

Possibility of adjusting the speed of the motors, as well as the force.

Equipped with clock and timer function for charger.

Double graft for receiver, 3 pins for XF and 5 pins for RP, and all photocells (both BUS and traditional).

With container.

Specifications:

Mains supply voltage: 230V~ (+6%-10%) 50(60) Hz

Max power: 4 W Stand-by - approx. 400 W max W

Max motor power: 7 A

Max load accessories: 500 mA 24V - 500 mA BUS 2easy

Accessory supply voltage: 24V

Programming mode: N. 3 buttons (+,-, F) and LCD display, via PC with USB cable

Operating logics: "Automatic (A), Semiautomatic (E), Automatic 1 (A1), Automatic "step by step" (AP),

Man present (C), Automatic safety (S), Safety step by step (SP), Semi-automatic step by step (EP),

Semiautomatic B (B), Mixed logic (BC), Custom (customizable, programmable by the installer via PC)"

Programmable functions: (*) Logic, pause time A, pause time B, force, speed, slowdown spaces,

door delay, windproof, reverse-stroke, soft-touch, opening and closing stroke, start, slowdown speed,

indicator lamp, fail-safe, programming devices BUS 2easy, service request, power-safe, timer function charger,

battery operation, clock, time-out, preflashing time, motor type, encoder sensitivity

Working time: Programmable (0 to 10 min)

Pause time: Programmable (0 to 10 min)

Motor force adjustment: Programmable on 50 levels

Speed regulation: Programmable on 10 levels

Terminal block inputs: BUS 2easy, Fully programmable inputs via PC

(open A, open B, close, open priority, close priority, emergency closing, emergency opening, stop, safety opening,

safety closing), Inputs for 4 limit switches (opening, closing, motor 1/motor2), connection inputs 2 motors, encoders

Terminal block outputs: 2 programmable multifunction outputs

Quick connector: OmniDEC (XF 433 or XF 868), X-COM, 5-pin card mount for MINIDEC, DECODER, RP/RP2 receiver

Protective fuses: Self-resettling

Operating ambient temperature: -20°C ÷ +55°C

Warranty 24 Months
