Central board Electronic control panel 230V original FAAC 578D 790922

FAAC 578D 790922

EAN 8055195013191

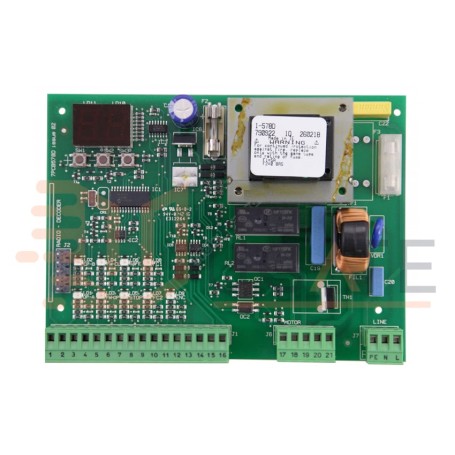

578D ELECTRONIC BOARD (REMOTE INSTALLATION)

SPECIFICATIONS:

Power supply type: Integrated

Mains supply voltage: 220-240V~50/60Hz

Max power: 10 W

Max motor power: 1.000 W

Max accessory load: 0.5 A

Programming: Nr. 3 keys (+, -, F) and display, "basic" and "advanced" mode

Status Reporting: On display

Operating logics: Automatic, Automatic "step by step", Semi-automatic,

Semi-automatic "step by step", Safety, Semiautomatic B, Man present C, Mixed logic B/C

Programmable functions: Operating logic, Pause time, Thrust force, Direction open / close,

Starting torque, Braking, Failsafe, Preflashing, Indicator lamp, Timed output, Electric lock in ap./ch.,

Logical security in ap. e ch., Encoder, Anti-crush sensitivity, Slowdowns,

Partial open time, Working time, Service request, Cycle counter

Working time: Programmable (0 to 4 min)

Pause time: Programmable (0 to 4 min)

Motor force adjustment: Adjustable on 50 levels

Terminal block inputs: Open, Open partial, Opening Safes, Closing Safes,

Stop, Coast, Power + ground, Limit switch ap. e ch., Encoder

Terminal block outputs: Flasher, Motor, Accessory power supply 24V, Indicator lamp 24V,

Timed output, Electric lock control, Traffic light, Failsafe

Quick connector: 5-pin card mount, MINIDEC, DECODER or RP receivers

Protective fuses: 2

Operating ambient temperature: -20°C ÷ +55°C

Container compatibility: Mod. E - L - LM

Warranty 24 Months
