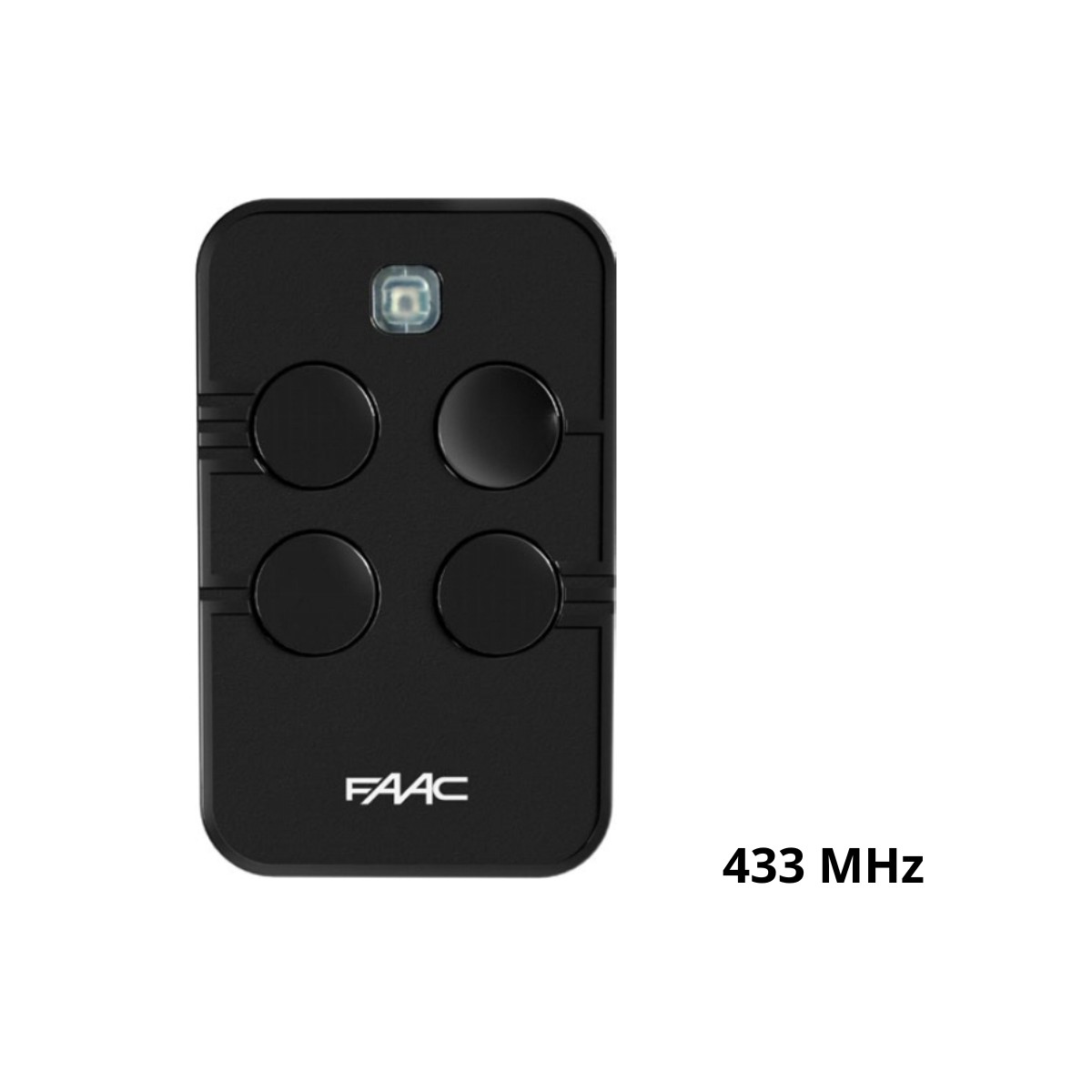

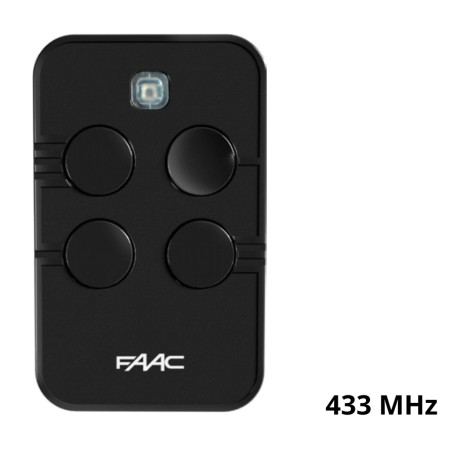

FAAC XTO4 787033 433MHz radio control – replaces previous models

The FAAC XTO4 787033 remote control is the natural evolution of traditional FAAC remote controls: it maintains the same ease of use as previous models but introduces improvements in terms of ergonomics, reliability of components and compatibility with modern systems. Designed for intensive use in residential and small tertiary settings, it is the recommended choice when you need to replace one of the old FAAC listed codes.

Compatibility and replacements

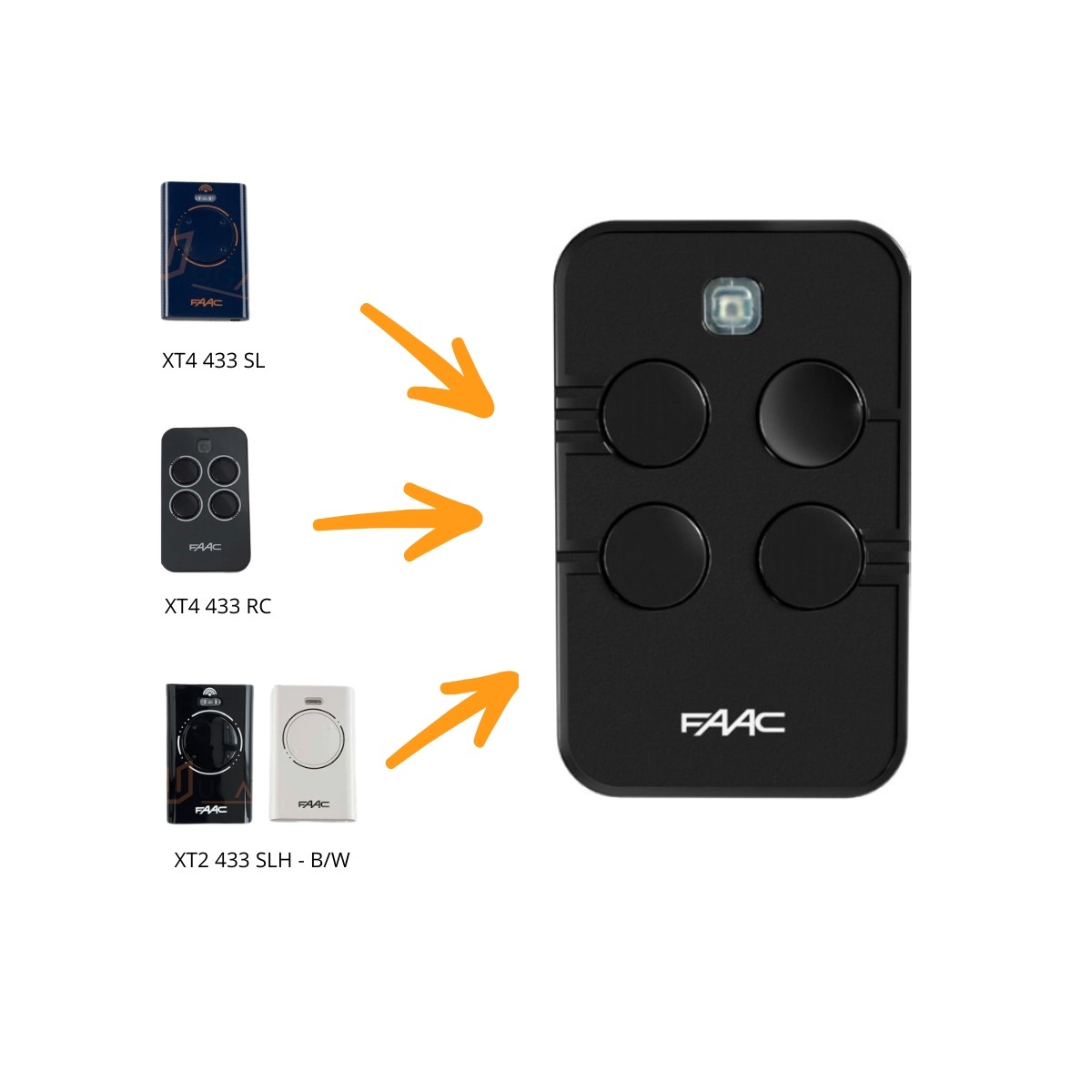

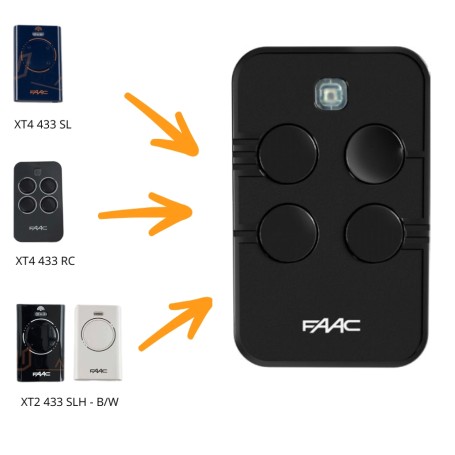

This model fully replaces the following FAAC codes: 787015, 787456, 787452, 787008, 7870081.
If you own one of these older remote controls, the 787033 is compatible with most 433.92 MHz FAAC receivers and systems based on rolling code/modern protection technologies; the new remote control is taught using the standard receiver procedure (see paragraph "Programming").

Main features

• Frequency: 433.92 MHz (compatible with 433 MHz systems).

• Battery Voltage: Internal long-life battery (CR2032 or equivalent) — typical life 2+ years in normal use.

• Coding type: compatible with rolling code systems (secure coding), it guarantees protection against signal cloning.

• Channels: 4 programmable buttons (XTO4 version).

• Approximate range: up to 50–100 metres in the open field (variable depending on obstacles and receiver).

• Design: Compact body, ergonomic buttons, durable finish for daily use.

• Mounting: key ring or optional wall mount.

• Optimized power supply and consumption for long battery life.

• Transmission confirmation LED.

Benefits for the installer and the end user

• Simple and direct replacement of previous codes: avoids the need to replace the control unit/receiver.

• Fast learning procedures: ideal for field interventions without special equipment.

• FAAC reliability: components and high quality standards for durability over time.

• Optimized for residential installations and small apartment buildings.

Programming (typical procedure)

1. Put the handset into learn mode (procedure depends on the receiver model — see handset manual FAAC).

2. Press the button on the remote control to be programmed until the receiver LED confirms learning (usually beep or flash).

3. Check the operation of the button by turning on/opening the barrier or gate.

Note: For some receivers, it may be necessary to clear the memory before re-programming multiple devices; Always follow the receiver's instructions.

Package contents

• 1 x XTO4 787033 FAAC Remote Control (4 buttons)

• 1 x Internal Battery Installed

• 1 x Quick Programming & Safety Manual

Technical specifications (summary)

• MPN: 787033

• Model: XTO4

• Frequency: 433.92 MHz

• Buttons: 4

• Power supply: CR2032 type battery (installed)

• Operating range: up to 50–100 m (open field)

• Operating Temperature: Typical for Civil Electronic Devices (Check Manual for Exact Range)
