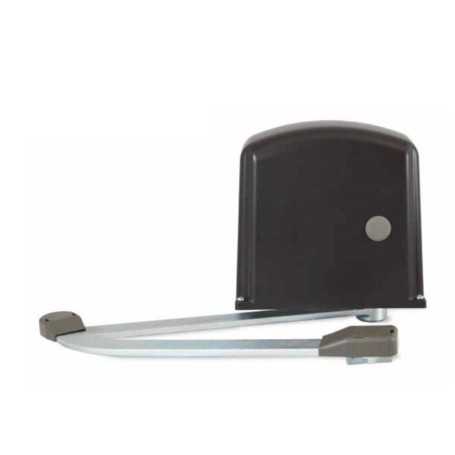

Operator, motor, articulated arm automation for leaves up to 2 meters SX

The ADVANTAGE operator of the PROTECO with articulated arm system is able to move leaves up to 2 meters. Used above all in the presence of masonry columns, this automation model is very suitable in cases where masonry works or "niches" would have to be carried out to install the classic piston operators due to the excessive size of the columns.

The articulated arm is a natural movement system, in fact it faithfully reproduces what a person would do to open the gate. For this reason, these systems are highly reliable and secure. In the ADVANTAGE system, the control unit is incorporated in one of the two operators (it does not matter if it is indifferent to the right or the left) and therefore the system from an aesthetic point of view is very clean as there are no boxes or other objects other than the motors, photocells and flashing lights.

I have to open the door above 90°, what can I do?

The ADVANTAGE articulated boom operator is just what you need for this task. In fact, by retracting the motor in positioning, it is possible to open the leaf even up to 130° without any problem.

What are the characteristics of the ADVANTAGE engine?

• Power supply: 230V
• Power consumption: 1.2 - 1.7A
• Power: 300W
• Capacitor: 10uF
• Thermal protection: 150° C
• Maximum torque: 280 Nm
• IP Protection: 44
• Engine rpm: 1400 rpm
• Max opening angle: 130°
• 90° opening time: 18''
• Max leaf weight: 250 Kg
• Max leaf length: 2 m
• Duty Cycle: 40%
