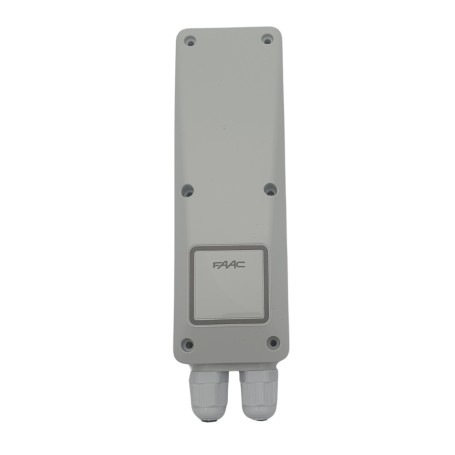

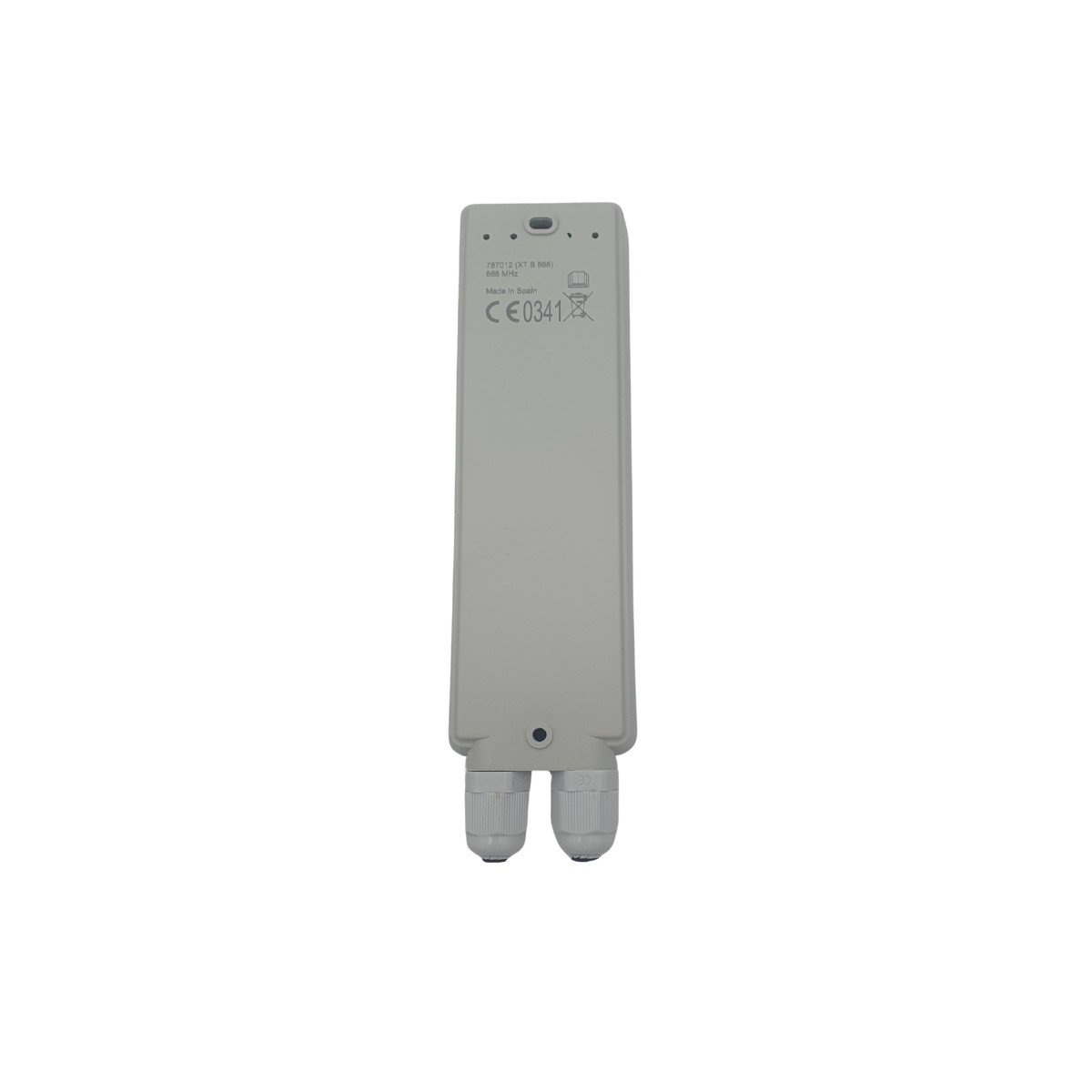

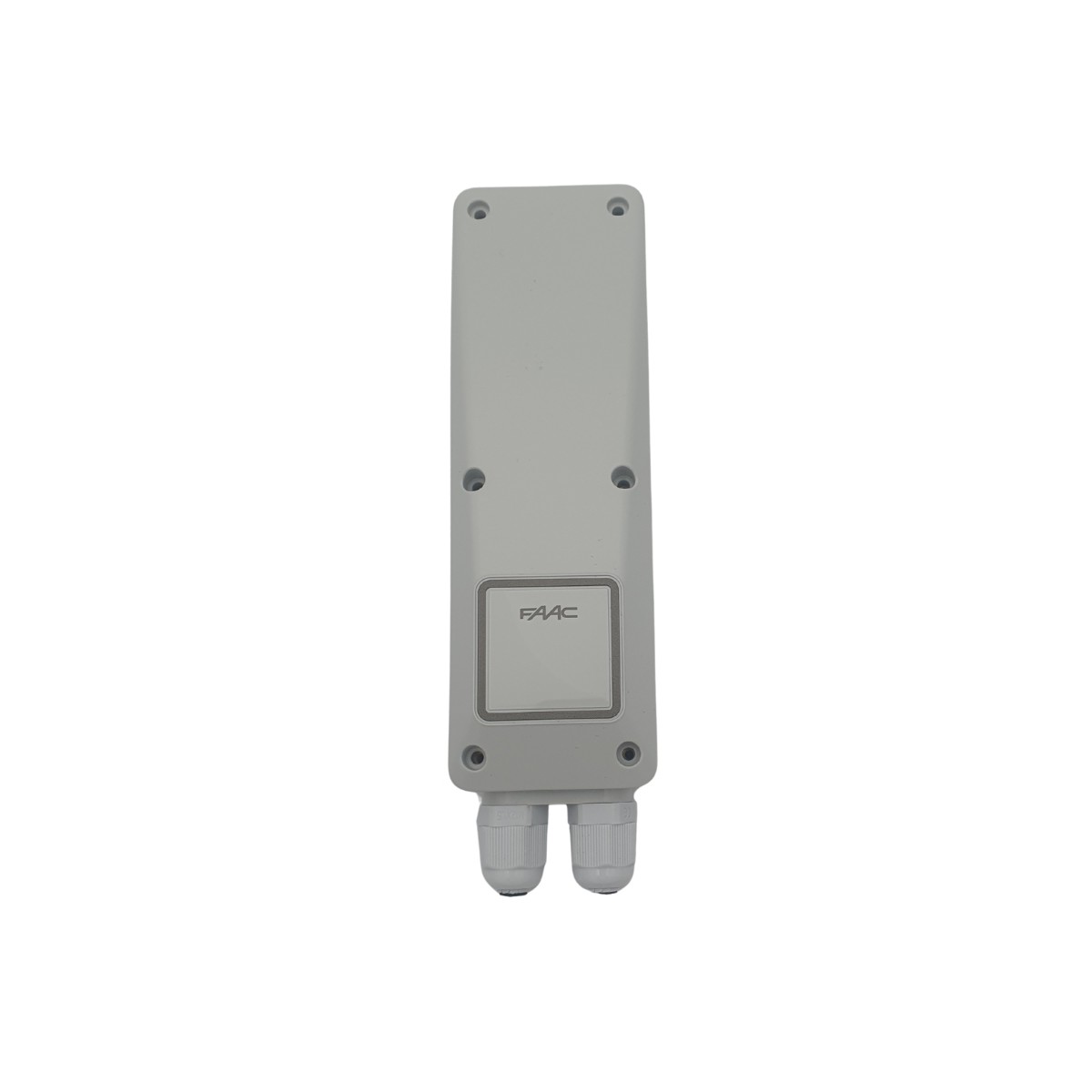

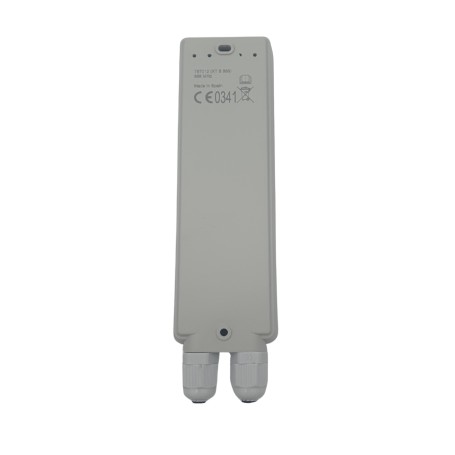

XT S 868 FAAC transmitter for IP55 coastal radio system 787012

The FAAC 787012 XT S 868 is a wall mounted transmitter designed for the FAAC rib radio system, ideal for automatic gate applications with sensitive security edges. It operates at the frequency of 868 MHz with self-regulation on 4 channels, ensuring stable and reliable communication.

Specifications

• Product Code / MPN: 787012

• EAN: 8055195012644

• Power supply: 2 x AA 1.5V lithium batteries

• Installation: Wall mounted

• Transmission frequency: 868 MHz (auto-regulation on 4 channels)

• Nominal range: up to 20 m

• Maximum number of supported coastlines: 2

• Rib technology: mechanical (N.C. contact) and/or resistive (8.2 KΩ)

• Degree of protection: IP55

• Dimensions (W × D × H): 50 × 31.5 × 158.5 mm

• Operating temperature: -20°C ÷ +55°C

Advantages

• Mechanical and resistive edge compatibility

• IP55 protection for dust and water resistance

• Quick and easy wall installation

• Self-powered by batteries, without complex wiring

• Ideal for outdoor applications and harsh environments

Scope of use

Designed for use with FAAC automation systems that require the integration of safety edges without cable connections. Perfect for installations where you want to reduce installation times and invasive interventions.
