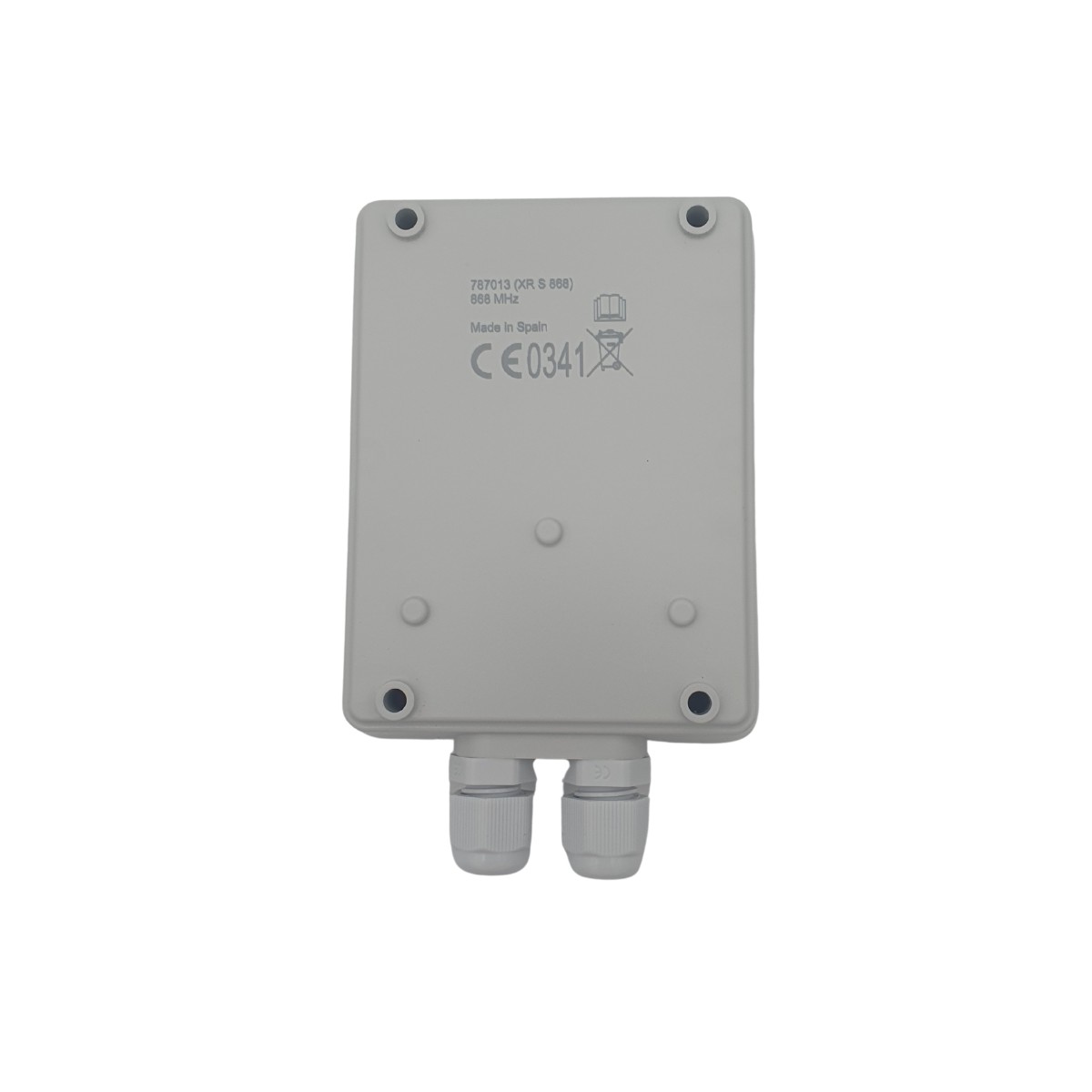

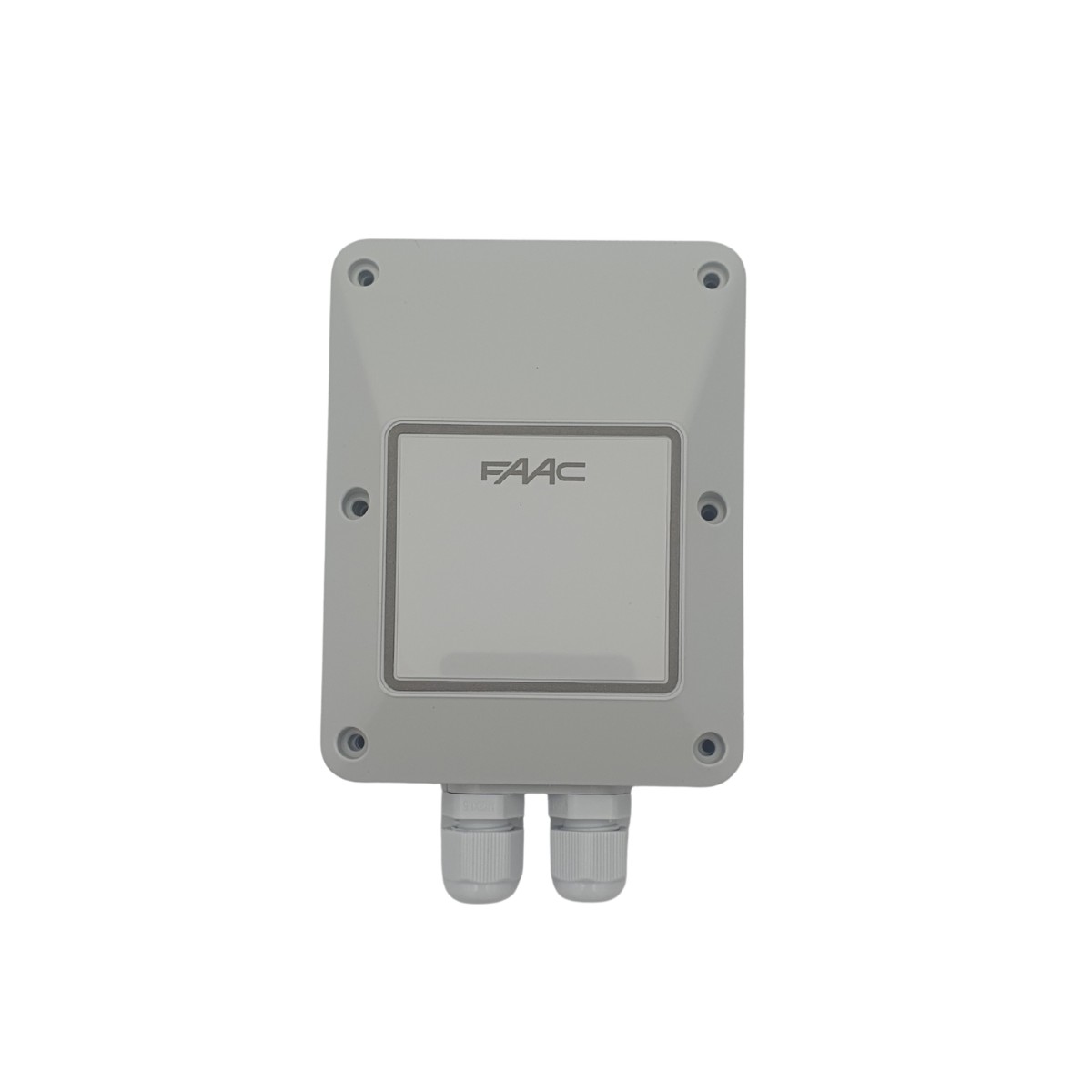

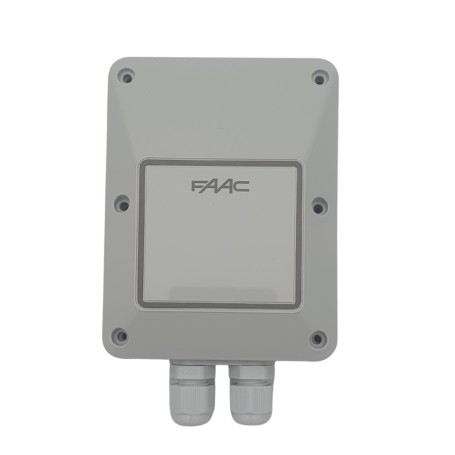

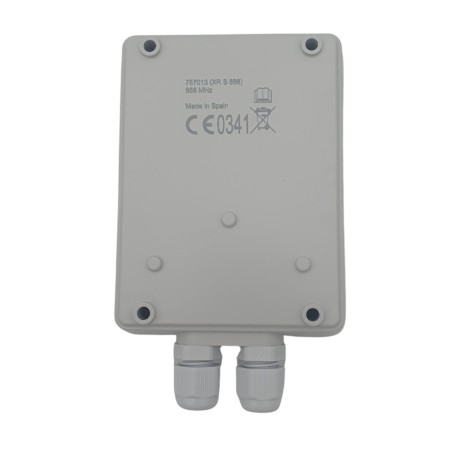

FAAC XR S 868 receiver for IP55 coastal radio system 787013

The FAAC 787013 XR S 868 is a wall-mounted receiver designed for FAAC coastal radio systems, ideal for integrating safety-sensitive coasts without complex wiring. It operates at a frequency of 868 MHz, with self-regulation on 4 channels, ensuring stable and secure communication.

Specifications

• Product Code / MPN: 787013

• EAN: 8055195012651

• Power supply: 2easy BUS or 12–24 V AC/DC

• Power consumption: 54 mA

• Installation: Wall mounted

• Reception frequency: 868 MHz (auto-regulation on 4 channels)

• Maximum number of transmitters: 6 (XTS 868 model)

• Programming: up to 4 for each transmitter

• Terminal Block Inputs: Power/BUS, Test (FAIL-SAFE)

• Terminal block outputs:

  • Relay 1 (N.C. or 8K2)

  • Relay 2 (N.C. or 8K2)

  • Relay 1+2 (N.O/N.C.)

  • Battery Level

• Degree of protection: IP55

• Dimensions (L × D × H): 84 × 36.5 × 112 mm

• Operating temperature: -20°C ÷ +55°C

Advantages

• Compatible with up to 6 XTS 868 transmitters

• Reliable outdoor operation thanks to IP55 protection

• Quick and easy wall installation

• Support for mechanical and resistive technologies of safety edges

• Advanced management of safety signals through configurable relays

Scope of use

Perfect for FAAC automation installations that require radio reception of the security edges, in residential, commercial or industrial contexts where cable connections are to be avoided.
