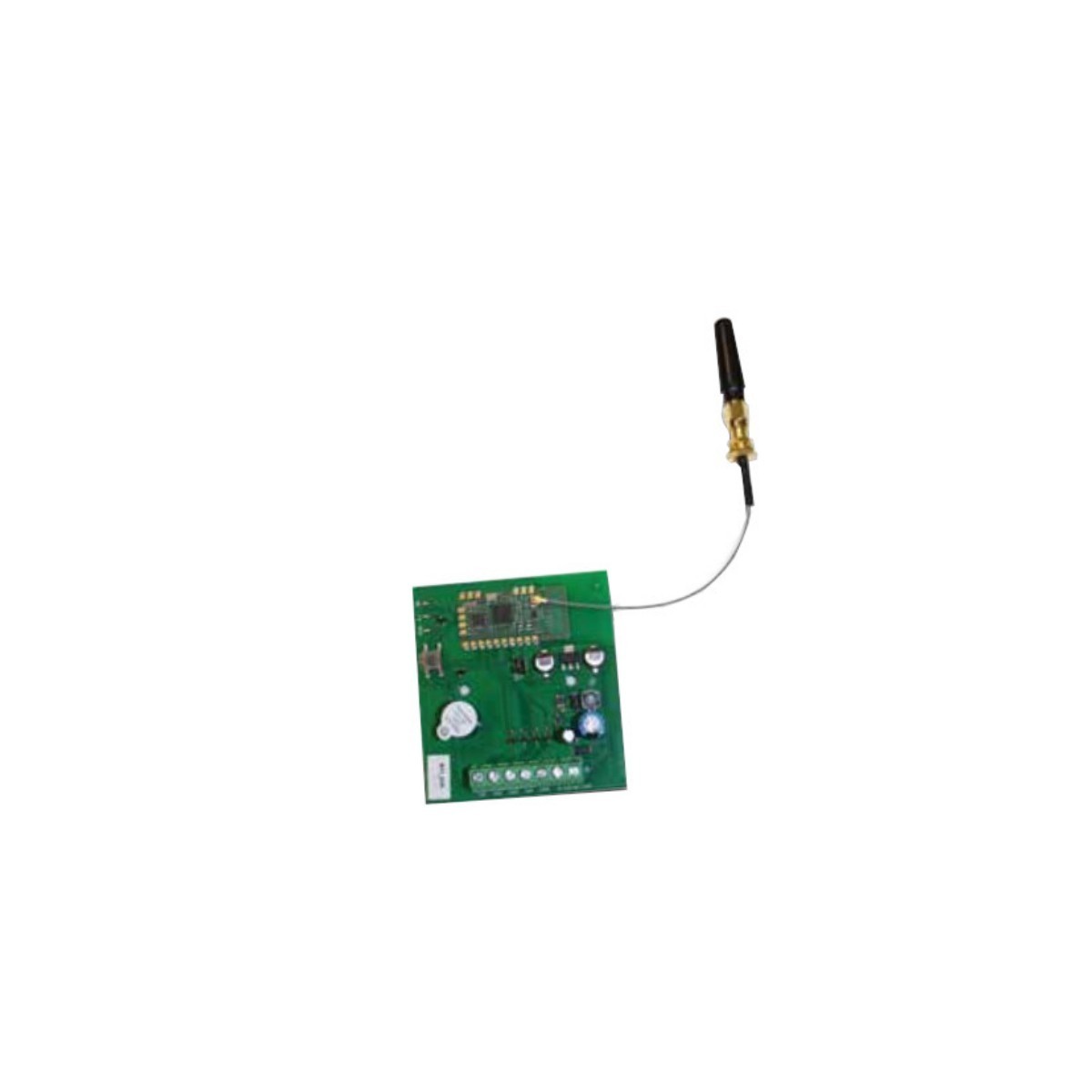

Transmitter with terminal block for remote activations up to 5Km away

This transmitter (together with the receiver that must be purchased separately) constitutes a remote radio activation system. It can reach up to 5 km with encrypted transmission and bi-directional mode, so it allows you to understand if the relays have actually activated or not.

This radio product is half-duplex used for remote control of gates, lights, alarms, irrigation systems, etc. able to guarantee very long distance communications, high sensitivity, reduced energy consumption and high immunity to interference.
The transmitter with encrypted communication can drive the receiver 4 channels. This system, in addition to allowing to activate remote loads, is ideal for very long distance activation and control applications, such as irrigation systems and alarms.
Cyclic reception also achieves consumption of less than 1 mA, allowing use in battery-powered applications.

BIDIRECTIONAL
Two-way communication allows you to know the status of the activated output.
The transmitter allows up to 5Km of bidirectional transmission (12/24V power supply).

TECHNICAL DATA
Power supply: 9:26 Vdc / 12:26 Vac
Average consumption at rest with all contacts open: decoder = 0.81 mA
Maximum consumption (Tx RF) with all contacts open: encoder = 45 mA / decoder = 45 mA
Max Current Relay Contacts: 5A@12VDC / 5A@220VAC Frequency: 868.30MHz
RF power: decoder = 1314 dBm / encoder = 1012 dBm
Modulation: LORA
Operating temperature: -20C, +70c
Dimensions: 72 mm x 68 mm
Receiver memory: up to 48 encoders (transmitters)
Output configuration: monostable, bistable, retention.
