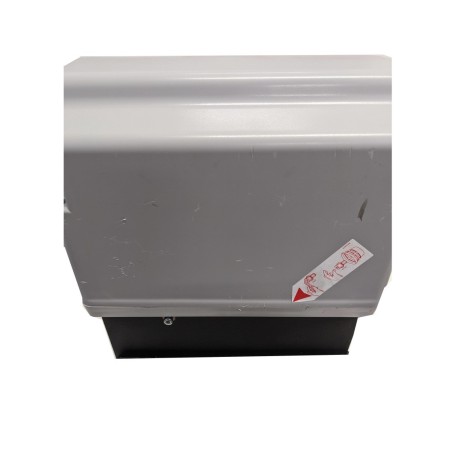

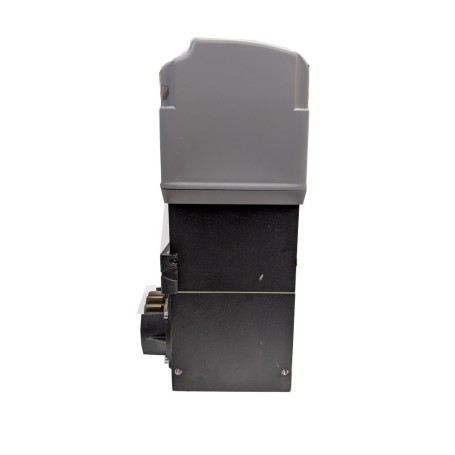

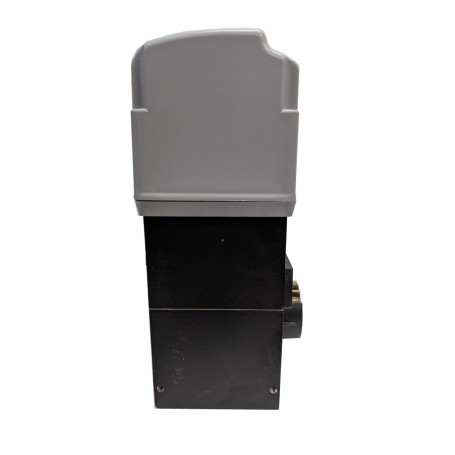

Refurbished 844 ER Z16 gearmotor for sliding gates

This product is a return from a return. This means that the product is new and has never been used.

DEFECTS:

• It has abrasions on the motor body and on the cover due to outward and return transport.
• Complete with all accessories except the instructions and the cardboard packaging, ruined during the 2 transports.
• It lacks the FAAC lettering on the lid that broke during transport.

GENERAL DESCRIPTION OF THE OPERATOR

Gearmotor in oil bath FAAC 844 ER Z16 230V, pinion Z16 teeth, for sliding gates up to 1800 kg in weight,

with electronics and encoders included that offer maximum safety on anti-crushing

It is also optimised by the twin-disc mechanical clutch, which is also in an oil bath.

Release system with European pawl and lever to facilitate movement.

Magnetic limit switches.

Built-in 780D 230V electronics with encoder management and obstacle reversal,

Equipped with all the inputs and outputs necessary for installation.

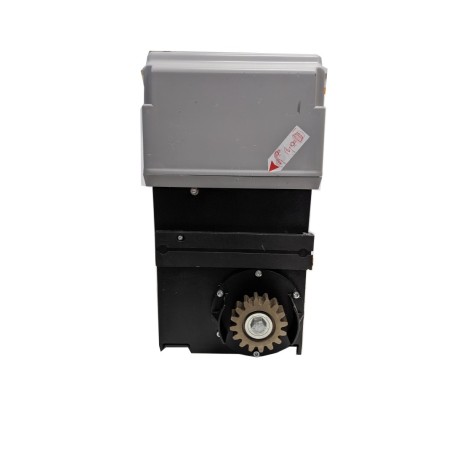

Sprocket included Z 16 teeth module 4 with 1160N thrust force.

In the box:

1 Geared motor 844 ER Z16

1 x 780D Electronics

2 Magnetic limit switches

1 Installation Manual

SPECIFICATIONS:

Mains supply voltage: 220-240V~ 50/60 Hz

Electric motor: Single-phase asynchronous

Max power: 660 W

Max torque: 37 Nm (*)

Maximum thrust force: 1,160 N (*)

Reduction ratio: 1:30

Max leaf width: 40 m

Leaf speed: 9.5 m/min

Speed Adjustment & Motor Control: No

Limit Switch: Magnetic

Sprocket: Z16 module 4

Encoder: Magnetic Encoder

Force adjustment: Twin-disc clutch in oil bath and via board

Ambient operating temperature: -20°C ÷ +55°C

Thermal protection: 120°C

Degree of protection: IP44

Weight: 14.5 Kg

Oil Type: FAAC HP OIL

Dimensions (LxWxH): 277 x 155 x 388 mm

Max leaf weight: 1.800 Kg

Frequency of use: 70%

Electronic equipment: Built-in 780D

24 Months Warranty
