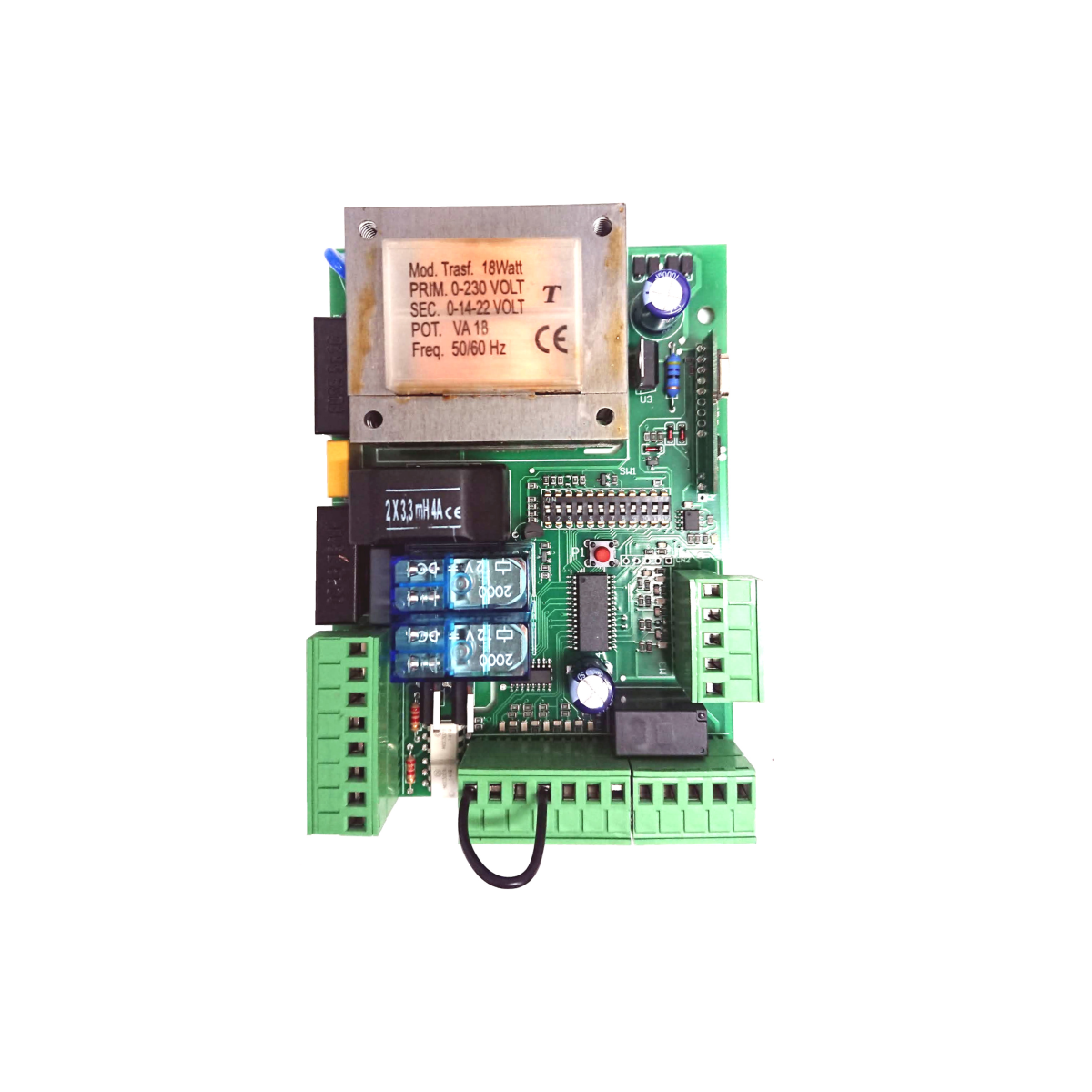

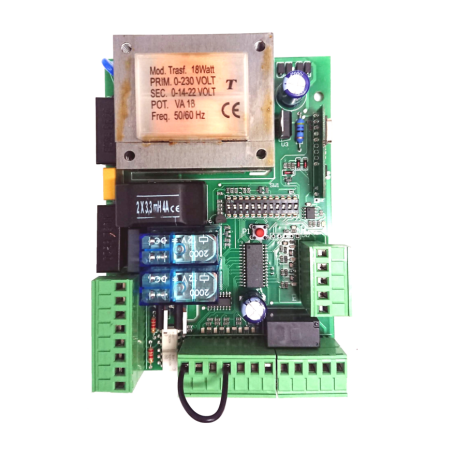

ALCR-36N Control unit with receiver

CODE: YAW-001000104 ex D113706 00002

ITEM: SW810-PCB

Spare electronic board compatible with all the old ALCOR control panels of the BFT those with green terminal blocks.

In particular, this control unit can be replaced, without changing the connections or terminal blocks, to the following models:

• ALCOR
• ALCOR 3
• ALCOR 6
• ALCOR N

This control unit has been designed to be housed and fixed to the box in the same points as the old ALCOR. In addition, the terminal blocks are the same and therefore you will not even have to disconnect the wires but only disconnect the terminal blocks from the old control panel and put them in the new one.

Important improvements have been made starting with the opening door delay which was not present in the old ALCOR control panels of the BFT .

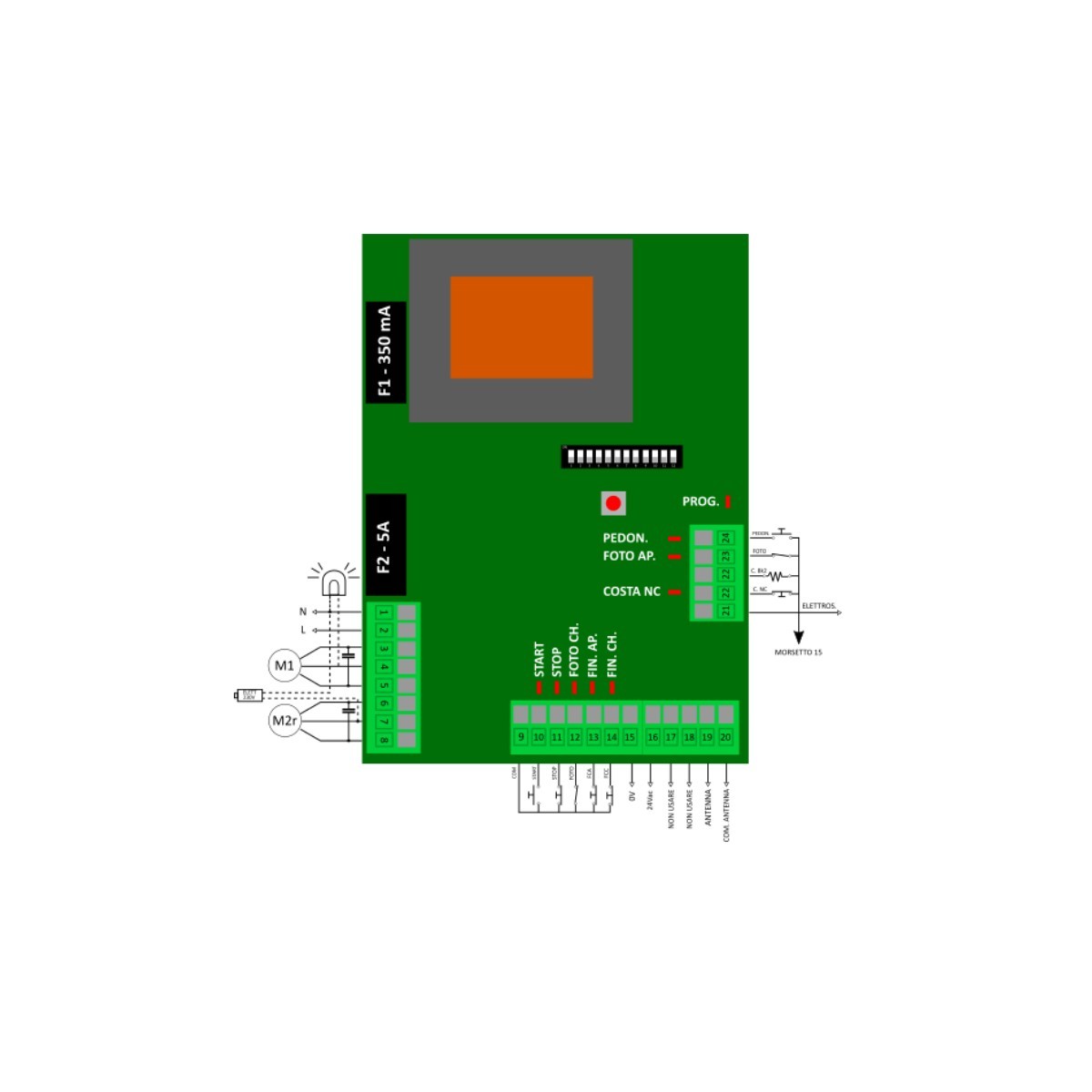

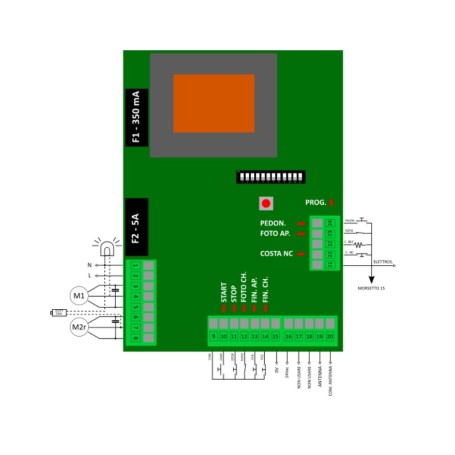

There are also additional terminals where you can connect the electric lock if present. In this way you will also remove the old ME card and the operation of the electric lock will be better and punctual.

Remember that if you need to buy new remote controls you can buy our OPEN4 specially designed and manufactured for our radio electronics.

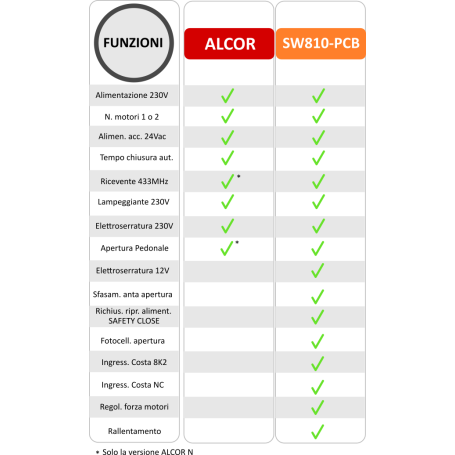

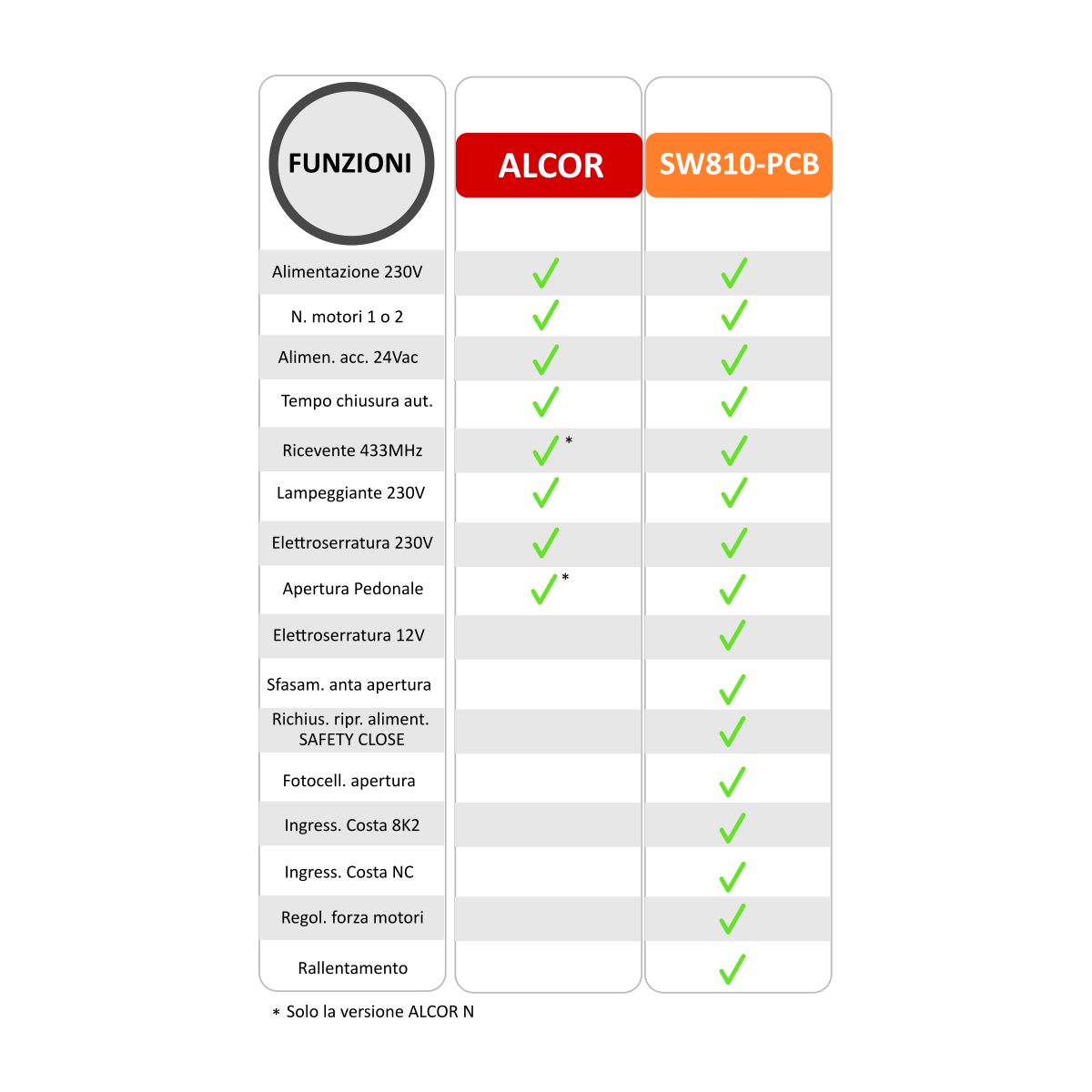

CHARACTERISTICS OF THE CARD

• Machine learning
• Automatic closing
• Condominium function
• Deceleration function (for electromechanical pistons)
• Water hammer when opening (facilitates the release of the electric lock)
• Final blow when closing (maximum power to close the electric lock correctly)
• Lock maintenance (with the gate stopped and closed every 180 minutes activates the motors. Function for hydraulic pistons)
• Photocell input can be excluded with DIP
• Limit switch inputs can be excluded with DIP
• Thrust force adjustment
• Total Start
• Pedestrian start (opens only one leaf)
• Quick reseal function
• Clock function (by connecting a timer the gate stays open for a pre-set time)
• Automatic shutdown when power returns
• Radio receiver - accepts 433MHz fixed code and rolling-code radio controls including BFT MITTOs (max 200)

The control unit is exclusive to UGATE, designed and built in Italy, which is why the warranty period is 24 months.
