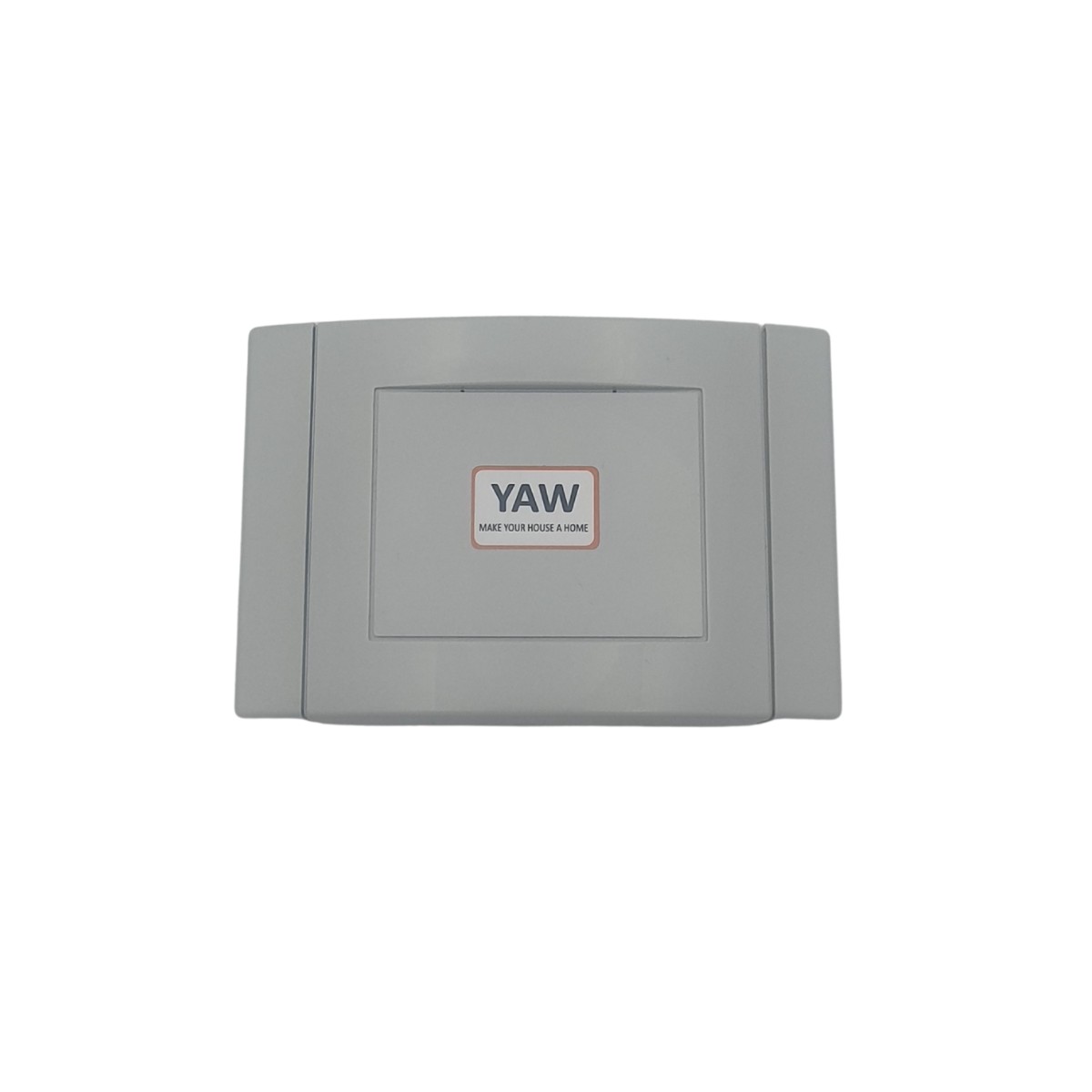

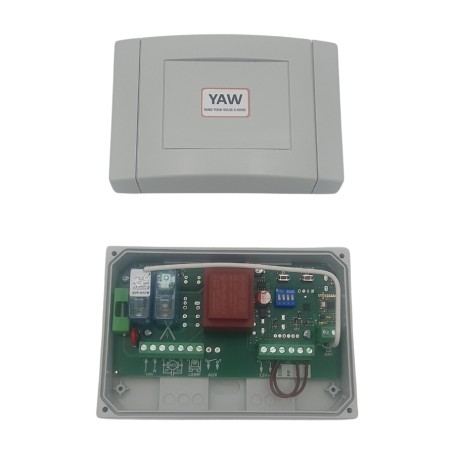

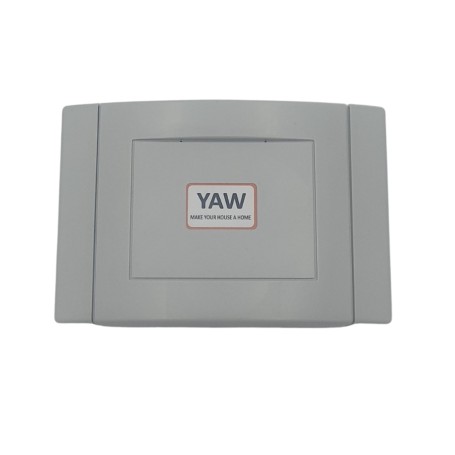

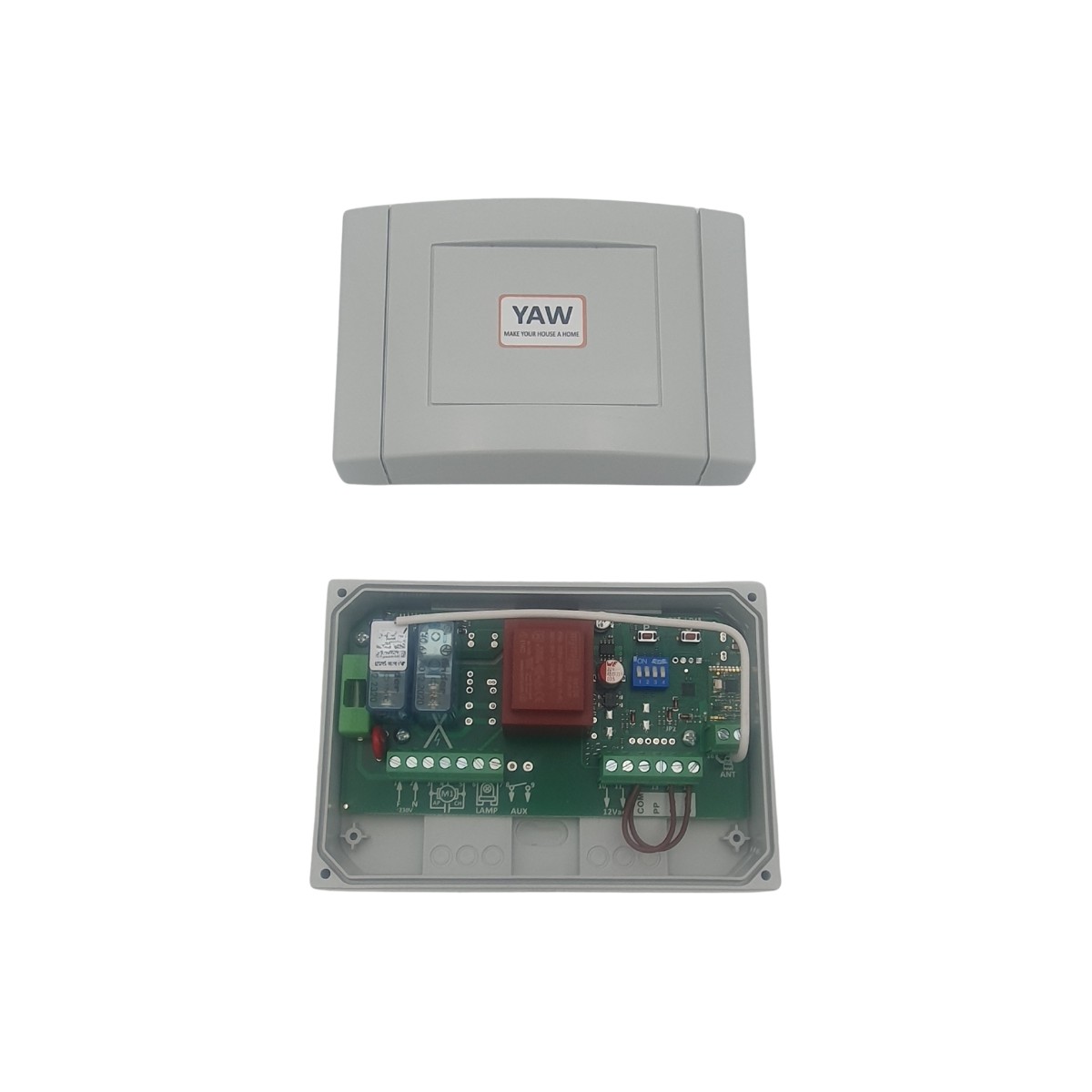

SH210-BOX – Control unit for roller shutter with universal 433/868 MHz receiver

Made in Italy roller shutter control unit with integrated universal radio receiver compatible with dozens of 433 MHz and 868 MHz radio remote controls.
It has inputs for photocells, stop and local start control, as well as the output for 230 V flashing light.
Simple programming of work and break times by self-learning .

Long Description:

The SH210-BOX is an electronic control unit for 230 V AC motors intended for roller shutters, roller shutters or awnings.
It is a reliable and versatile solution, suitable for both new installations and the replacement of obsolete power plants.

It integrates a universal radio receiver capable of recognizing and storing multi-brand radio remote controls, both fixed and rolling code, operating at the frequencies 433.92 MHz and 868.3 MHz.
Thanks to the self-learning procedure, the control unit automatically records the opening, closing and pause times for automatic reclosing, reducing set-up time.

Main technical features

Power supply: 230 Vac ±10% (50 Hz)
Motor output: 230 Vac – max power 800 W
Flashing output: 230 Vac – max power 40 W
Service voltage: 12 Vac for accessories (photocells, external receivers, etc.)
Control inputs:
• PP (NO): wired start / stepper control
• SIC (NC): photocell safety
• STP (NC): emergency stop
Radio memory: up to 400 codes
Operating frequency: 433.92 – 868.3 MHz
Programmable working time: 3 ÷ 90 s
Automatic reclosing time: max 240 s
Time teach-in function
Degree of protection: IP53
Operating temperature: −10°C ÷ +50°C
Box dimensions: 140 × 96 × 50 mm
Production: Made in Italy

Features and Benefits

• Quick programming via P key and status LED
• Auto-set of open, close and pause times
• Automatic, semi-automatic or deadman mode
• Compatibility with radio remote controls of over 30 different brands
• Integrated 230 V flashing light output
• Ideal for replacing traditional power plants

Integrated universal receiver

The receiver of the SH210-BOX is able to copy and store remote controls from numerous manufacturers (FAAC, NICE, BFT, DITEC, BENINCA, KING GATES, GENIUS, GIBIDI, ERREKA, and many others).
See the PDF attachment "Compatibility of SH210-BOX control unit receiver and 433/868 MHz remote controls" for the complete list.

Applications

• Motorized shutters and shutters 230 V
• Awnings, bottom-hung awnings and small industrial roller shutters
• Safety photocell systems
• Mixed brand remote control systems
