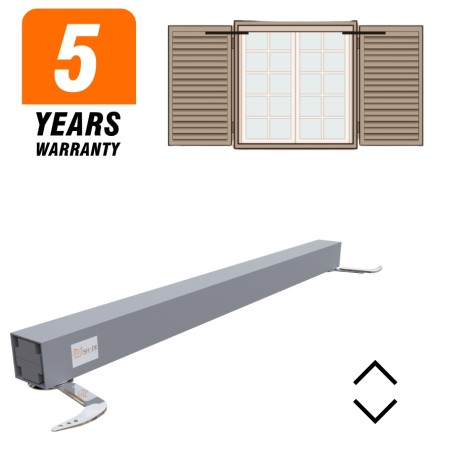

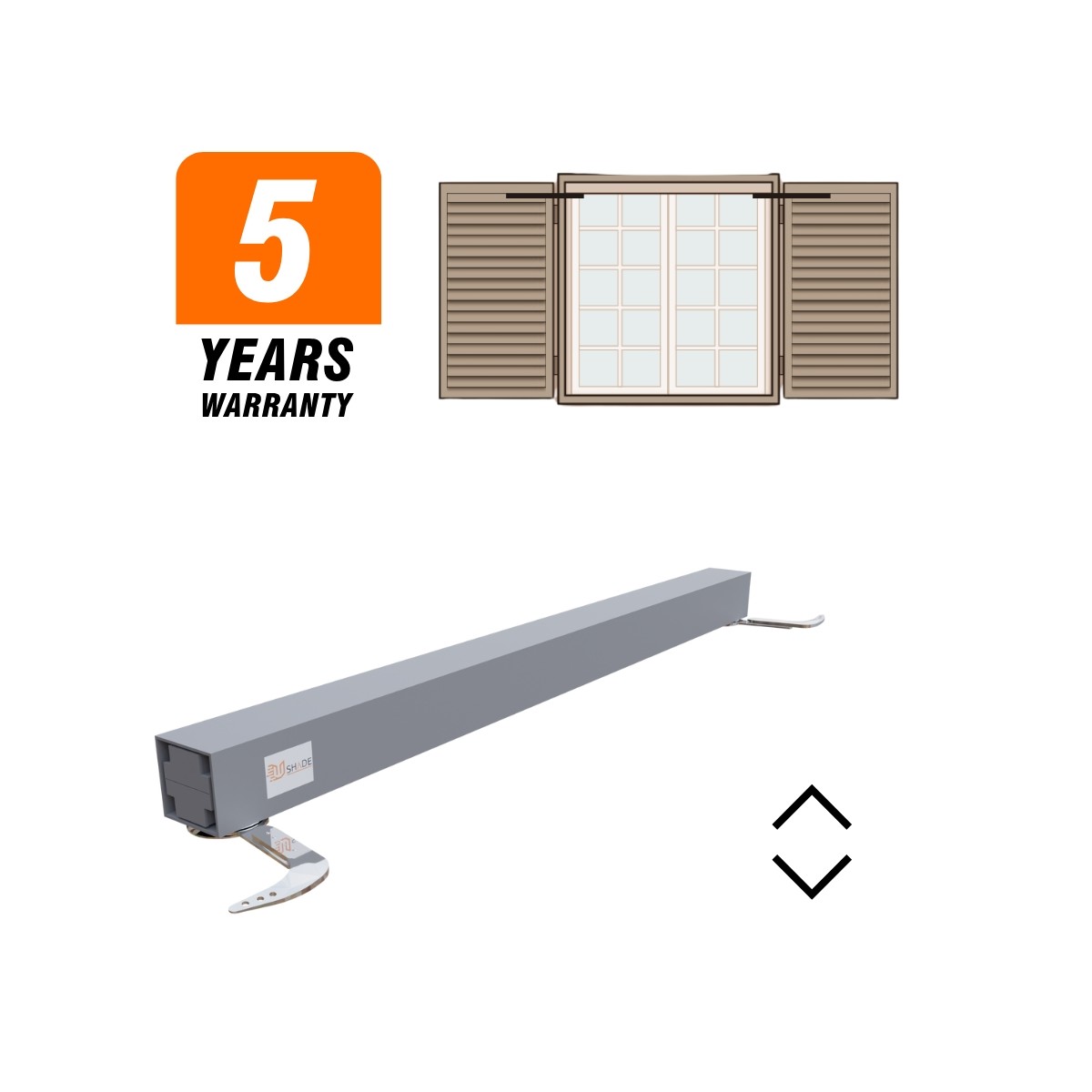

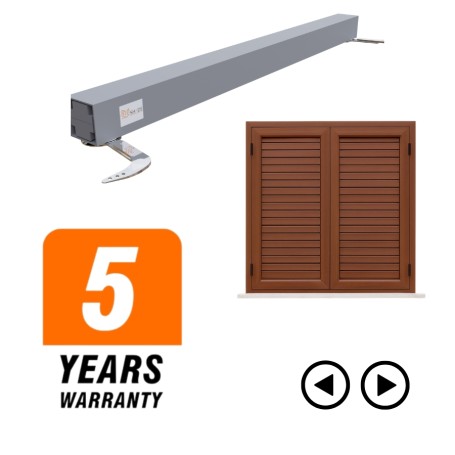

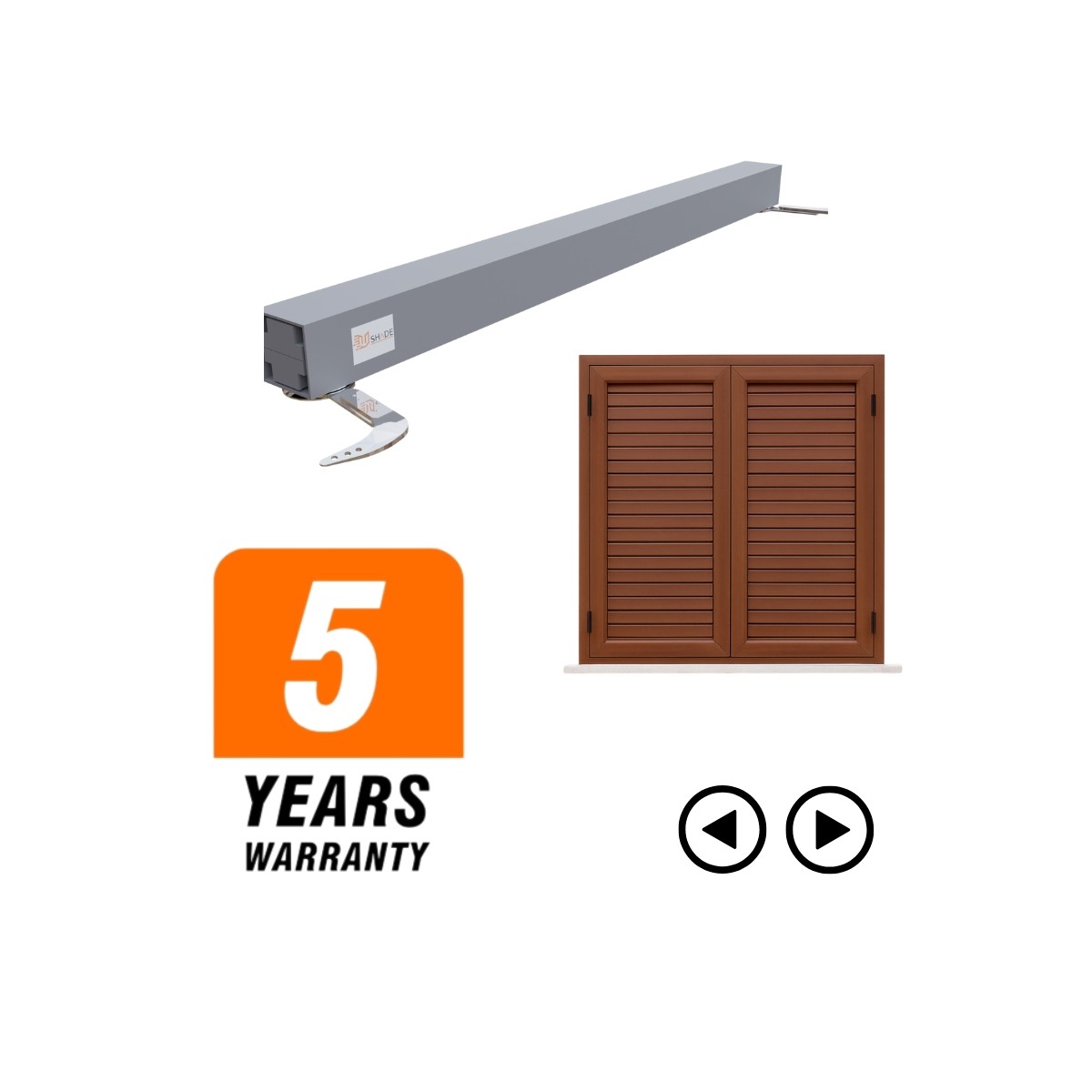

USHADE KSW600-SH-2-LU – Motorized double leaf crossbar for shutters (max 600 mm leaves)

If your double-leaf shutters are difficult to manoeuvre because they are too high, behind furniture or simply uncomfortable to reach, USHADE KSW600-SH-2-LU is the ideal solution to automate them without any invasive intervention.

This version is dedicated to double-leaf shutters, each with a maximum width of 600 mm, and is controlled by an up/down button connected without tension directly to the integrated control unit (button not supplied). No radio, no Wi-Fi – just simple, solid and instant control.

Problems it solves

• Double shutters in awkward positions or behind furniture elements.

• Difficulty opening due to height or architectural barriers.

• Avoids heat and cold dispersion during manual adjustments.

Exclusive benefits of USHADE KSW600-SH-2-LU

• Simple and non-invasive installation: supplied already assembled, wired and tested.

• Zero masonry work: it can be installed in a few minutes.

• Weatherproof aluminum crossbar designed to last.

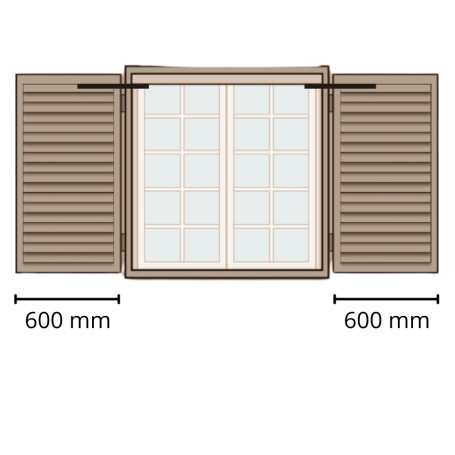

• Universal compatibility: ideal for most 2-leaf shutters up to 600 mm each.

• Total safety: mechanical and electronic double clutch for complete protection.

• Tension-free direct control: works via a simple up/down button (not included).

Package Contents

• Motorized crosshead complete with motor and control unit.

• Pair of movement levers with mechanical clutch.

• Version without radio and Wi-Fi – no built-in wireless module.

• Free cutting to size on request in the order notes.

Electrical Characteristics

• Power supply: 230 V / 50–60 Hz

• Power consumption: 0.3 A

• Gear motor torque: 23 Nm

• Maximum capacity: 30 kg + 30 kg (2 leaves)

• Opening time: 12 s / 180°

• Service class: 2 – light

• Intermittent: S2 = 7 min, S3 = 15%

• Operating temperature: –20 °C / +55 °C

• Degree of protection: IP44 (with cover)

• Motor power: 12 V / 1.4 A

Made in Italy quality

USHADE is a YAW product designed and manufactured entirely in Italy, with selected components and final testing on each piece to ensure maximum reliability over time
