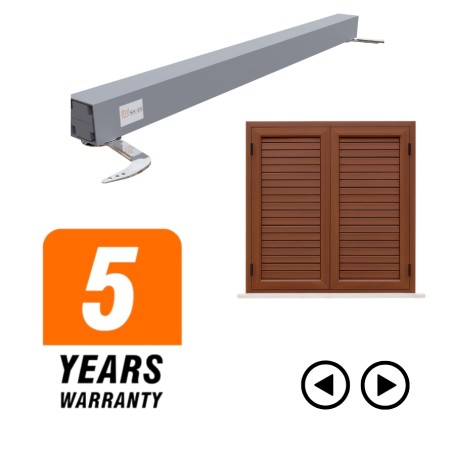

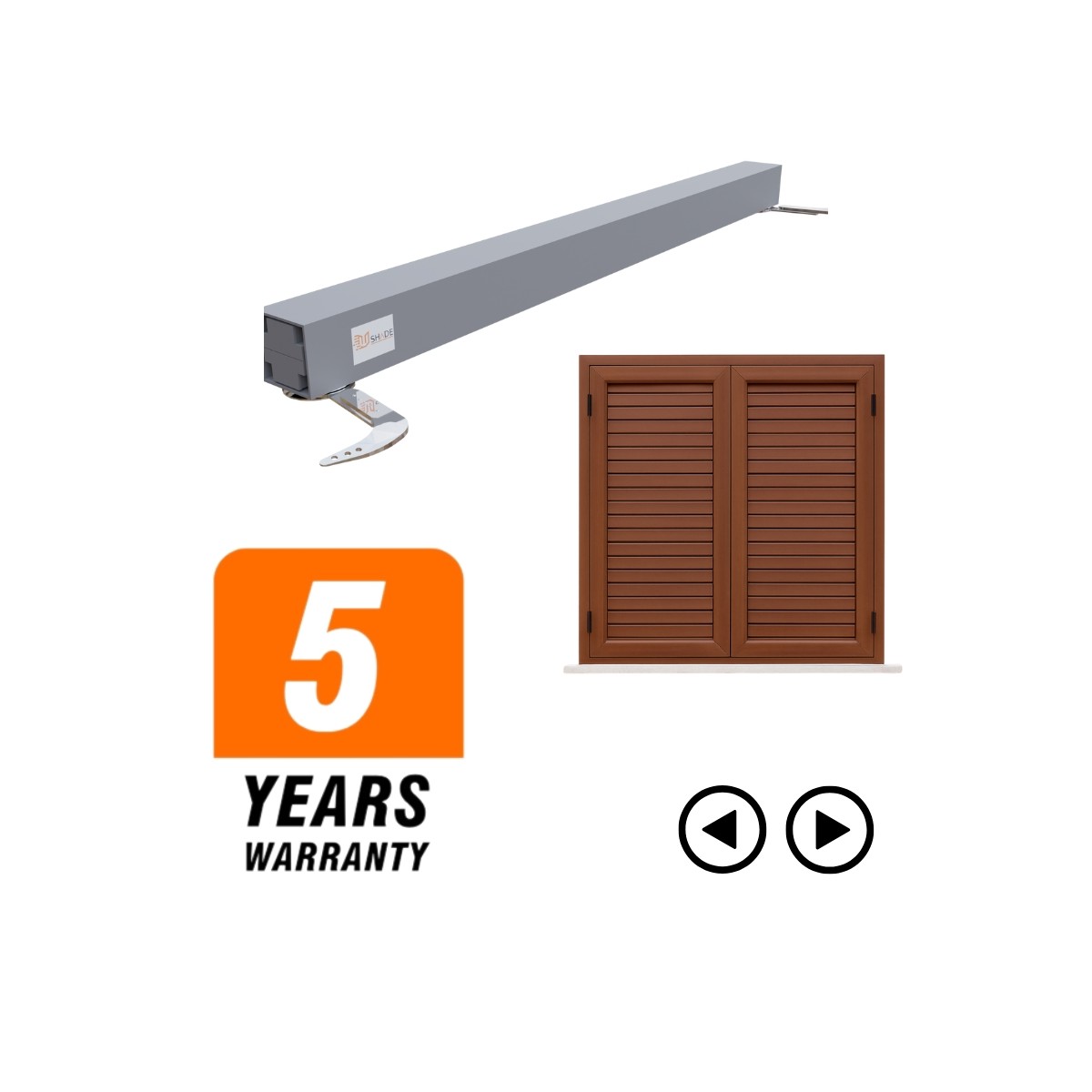

USHADE KSW800-SH-2-LU – Motorized double leaf crossbar for shutters (max 800 mm leaves)

When double-leaf shutters are heavy, wide or difficult to reach, day-to-day handling can become complicated. USHADE KSW800-SH-2-LU was created to solve this problem, automating shutters with leaves up to 800 mm each without masonry work and with a reliable and tested system.

The motorized crosshead is supplied already wired, assembled and tested, ready to be installed in a few minutes. This version works via an up/down button connected without voltage to the integrated control unit (button not included). No radio module, no Wi-Fi connection: just direct and immediate control.

Problems it solves

• Shutters that are wide, heavy or difficult to operate manually.

• Windows positioned behind furniture or areas that are difficult to access.

• Need to avoid drafts and heat loss when adjusting the doors.

Exclusive benefits of USHADE KSW800-SH-2-LU

• Quick, non-invasive installation: product already assembled and tested.

• No construction work necessary.

• Aluminium crossbar resistant to rain, sun and wear.

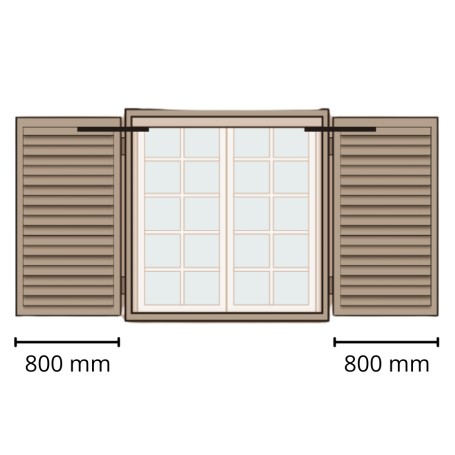

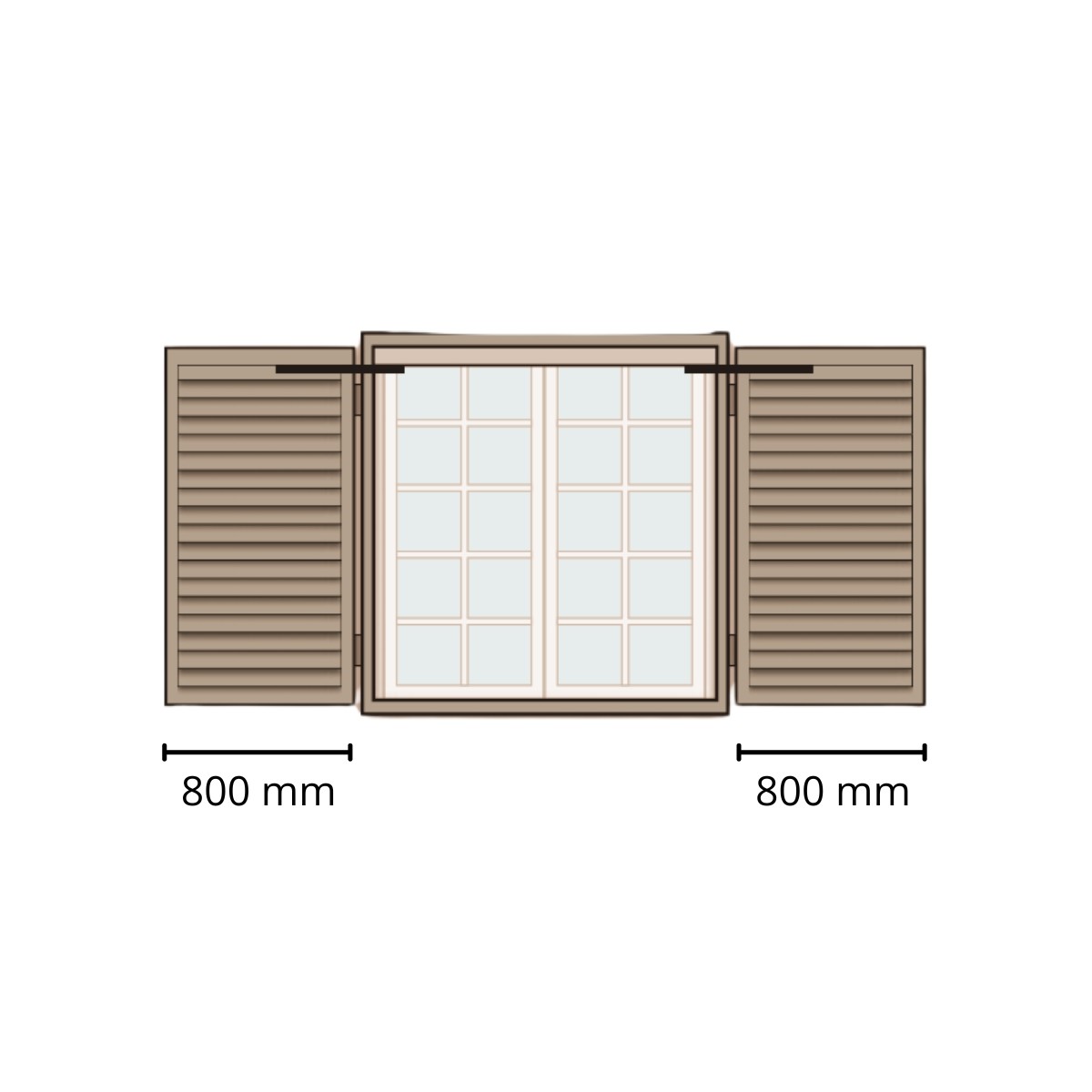

• Universal compatibility: ideal for most 2-leaf shutters up to 800 mm each.

• High safety: double mechanical clutch + electronics to protect the structure and motor.

• Tension-free push-button control: direct and reliable up/down (not included).

Package Contents

• Motorized crosshead complete with motor and control unit.

• Pair of movement levers with mechanical clutch.

• Version without radio and Wi-Fi – no integrated wireless module.

• Free cutting to size on request in the order notes.

Electrical Characteristics

• Power supply: 230 V / 50–60 Hz

• Power consumption: 0.3 A

• Gear motor torque: 23 Nm

• Maximum capacity: 30 kg + 30 kg (2 leaves)

• Opening time: 12 s / 180°

• Service class: 2 – light

• Intermittent: S2 = 7 min, S3 = 15%

• Operating temperature: –20 °C / +55 °C

• Degree of protection: IP44 (with cover)

• Motor power: 12 V / 1.4 A

Italian production and quality

USHADE is designed, assembled and tested entirely in Italy by YAW. Each crossbar is subjected to rigorous controls to ensure reliability over time and impeccable operation.
