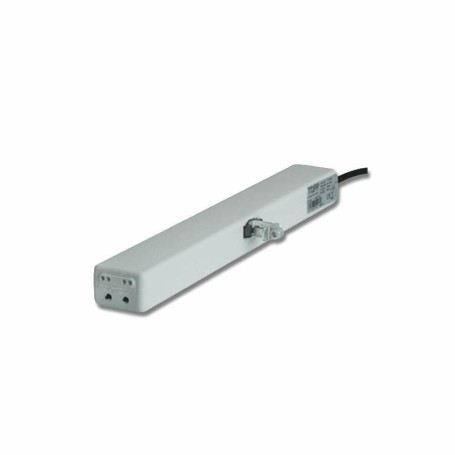

Window chain motor actuator vasistas TOPP C15 24V 3A91007 GREY

TOPP

Item Number: 3A91007
MOD.: C15 24V
TYPE: ACTUATOR
LINE: C15 stroke 240 mm

GENERAL DESCRIPTION SERIES C15:

Chain actuator
Thrust force 300 N - Max stroke 240 mm

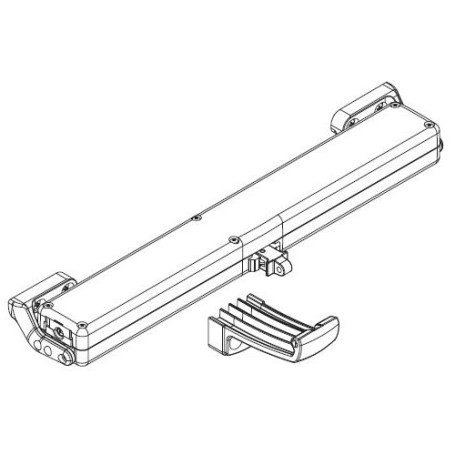

C15 with double mesh articulated chain, contained in a special casing, complete with support and accessories for protruding or vasistas opening.
Operation 230V 50Hz, or, alternatively, 24V d.c. Maximum applicable load 300N. Quick attachment to the frame.
Stroke adjustable from the edge by means of a selection switch with stops at 120mm and 240mm. Limit switch in electronic closure with current absorption.
CE marked luminaire.

Advantages:
Double mesh chain with very high resistance to peak loads.
Limit switch in closing with current absorption to avoid adjustments in closing and to remedy any errors in positioning the actuator.
Tilting brackets easy to install and versatile in the application.

SPECIFICATIONS:
Supply voltage: min 21V ~ max 28V
Maximum applicable thrust load: 300 N
Maximum applicable tensile load: 200 N
Strokes (selectable at any time): 120 and 240mm
Absorption: 0,43 A
No-load travel speed: 7.5 mms
Double electrical insulation: -
Type of service: S2 of 4 min
Operating temperature: - 5°C + 50°C
Degree of protection of electrical devices: IP 30
Adjustment of the connection to the frame: not necessary
Parallel connection of 2 or more actuators: yes
End switch: Electronic at the opening, with amperometric absorption at the end
Dimensions: 362x48x34
Weight: 0.940 kg
