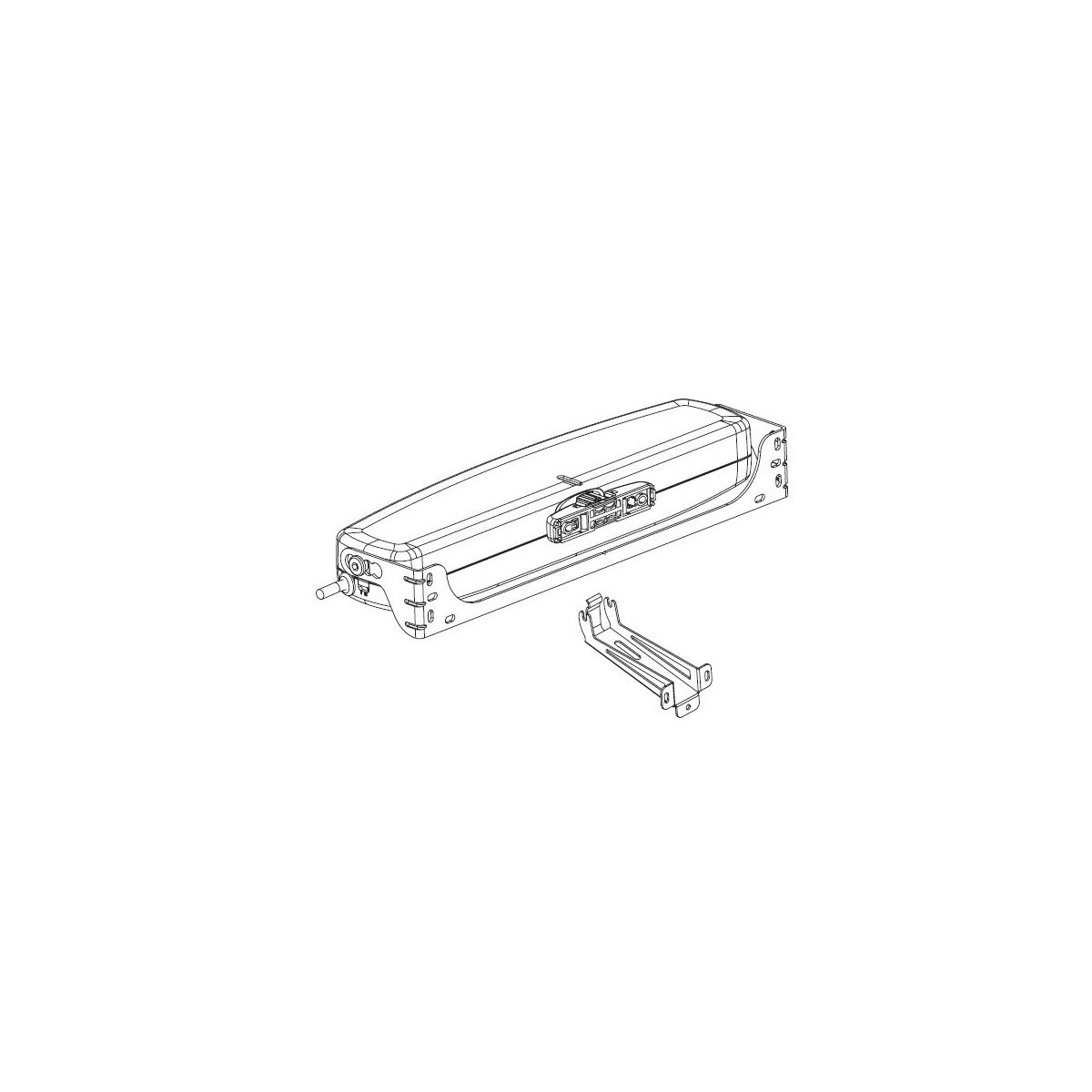

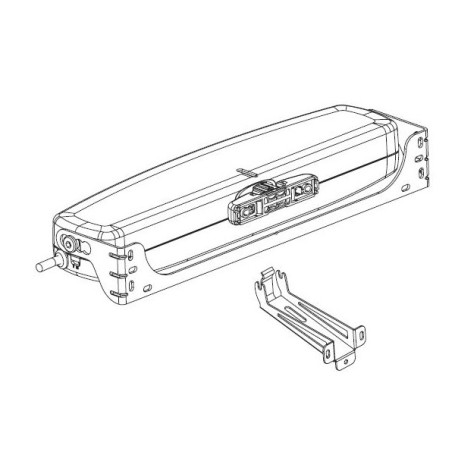

Chain motor actuator for windows vasistas TOPP C30 230V 3A49902 WHITE

TOPP

Item Number: 3A49902
MOD.: C30 230V
TYPE: ACTUATOR
LINE: C30

GENERAL DESCRIPTION C30 SERIES:

Chain actuator
Thrust force 300 N - Max stroke 380 mm

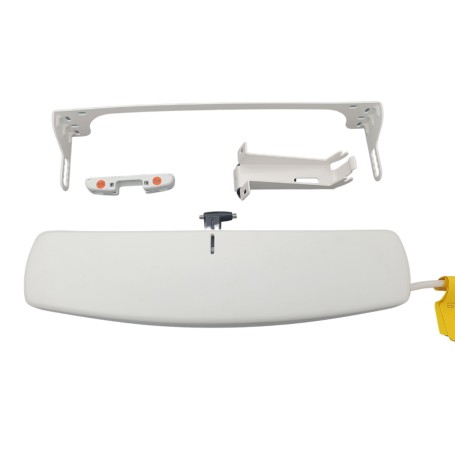

Electric actuator TOPP model C30 with double mesh articulated chain, contained in a special casing, complete with support and accessories for protruding or vasistas opening. Operation 230 V 50 Hz, or, alternatively, 24 VDC Maximum applicable load 300N.
Quick attachment to the frame. Stroke adjustable from the outside by means of a selection switch with stops at 200 and 380 mm. Electronics with horn for user signaling incorrect assembly.
On request, available version S prepared for synchronization and simultaneous operation of multiple actuators installed on a single window.
CE marked luminaire.

Advantages:
Telescopic chain terminal with quick adjustment (from 0 to 15mm), also with fully indented chain, for application on overlapping windows (international patent).
Tilting bracket simple, fast and suitable for windows of all types and sizes.
Double mesh chain with very high resistance to peak loads.

SPECIFICATIONS:
Supply voltage: 230V~50Hz
Maximum applicable thrust load: 300 N
Maximum applicable tensile load: 300 N
Strokes (selectable at any time): 200 and 380 mm
Absorption: 0,26 A
No-load travel speed: 37 mms
Empty stroke duration: 11 s
Double electrical insulation: yes
Type of service: S2 of 4 min
Operating temperature: - 5°C + 50°C
Degree of protection of electrical devices: IP 30 (special version IP40 available)
Adjustment of the connection to the frame: 15 mm
Adjustment of tilting bracket pins: 15 mm
Parallel connection of 2 or more actuators: yes
Linking multiple C30s on the same window: S version
End switch: encoder
Acoustic device for incorrect mounting signalling: yes
Dimensions: 337,2x80x49 mm
Installed luminaire weight: 1,1 kg
