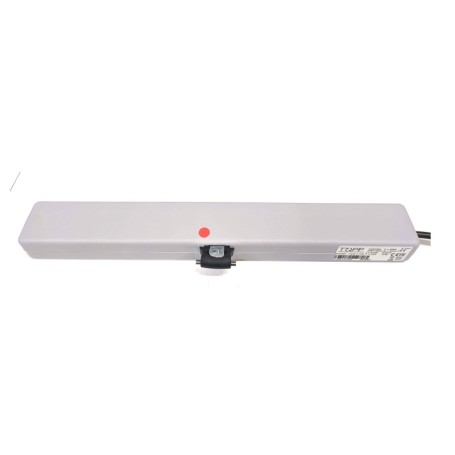

Chain motor actuator for vasistas windows TOPP C20 230V 3A39903 GREY

TOPP

Item Number: 3A39903
MOD.: C20 230V
TYPE: ACTUATOR
LINE: C20

GENERAL DESCRIPTION SERIES C20:

Chain actuator
Thrust force 300 N - Max stroke 360 mm

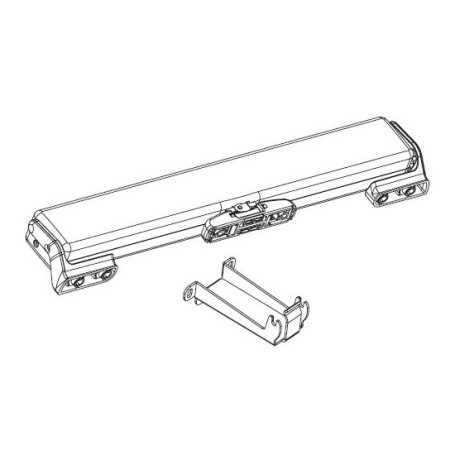

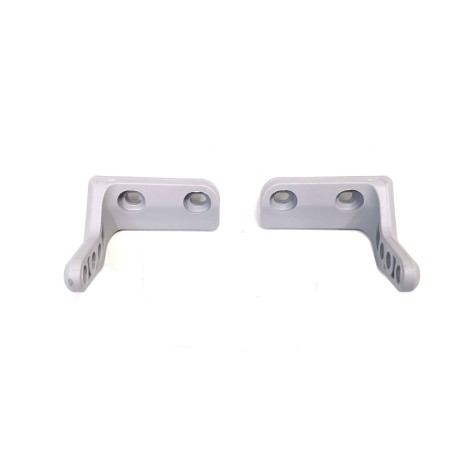

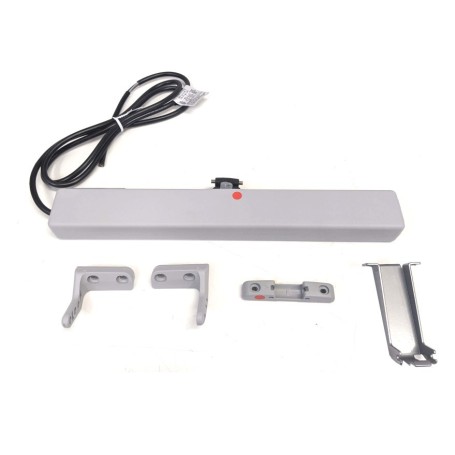

Electric actuator TOPP model C20 with articulated chain double mesh, contained in a special casing, complete with support and accessories for opening to protrude or vasistas.
Operation 230 V 50 Hz, or, alternatively, 24 VDC Maximum applicable load 300 N. Quick attachment to the frame. Stroke adjustable from the outside by means of a selection switch with stops at 240 and 360 mm. CE marked luminaire.

Advantages:
Double mesh chain with very high resistance to peak loads.
High stroke combined with small actuator dimensions to allow applications that require minimal dimensions (international patent on the chain path).
Limit switch in closing with current absorption to avoid adjustments in closing and to remedy any errors in positioning the actuator.

SPECIFICATIONS:
Supply voltage: 230V~50Hz
Maximum applicable thrust load: 300 N
Maximum applicable tensile load: 200 N
Strokes (selectable at any time): 240 and 360 mm
Absorption: 0,12 A
No-load travel speed: 8 mms
Empty stroke duration: 46 s
Double electrical insulation: yes
Type of service: S2 of 4 min
Operating temperature: - 5°C + 50°C
Degree of protection of electrical devices: IP 30
Adjustment of the connection to the frame: not necessary
Parallel connection of 2 or more actuators: yes
End switch: Electronic at the opening, with amperometric absorption at the end
Dimensions: 362x48x34 mm
Weight: 0.970 kg
