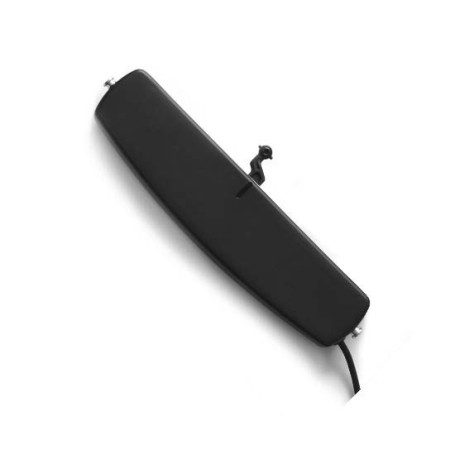

Chain motor actuator for vasistas windows TOPP C25 230V 3A80001 BLACK

TOPP

Item Number: 3A80001
MOD.: C25 230V
TYPE: ACTUATOR
LINE: C25

GENERAL DESCRIPTION C25 SERIES:

Chain actuator
Thrust force 200 N - Max stroke 380 mm

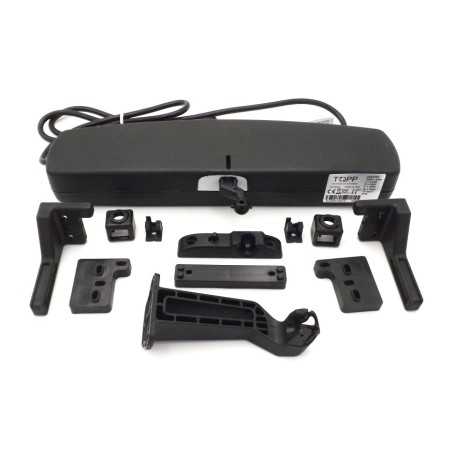

Electric actuator TOPP model C25 with double mesh articulated chain, contained in a special casing, complete with support and accessories for protruding or vasistas opening.
Operation 230V 50Hz. Maximum applicable load 200N. Quick attachment to the frame. Stroke adjustable from the outside by means of a selection switch with stops at 200 and 380mm.
Electronics with horn for user signaling incorrect assembly.
On request, available version S prepared for synchronization and simultaneous operation of multiple actuators installed on a single window. CE marked luminaire.

Advantages:
Overhead brackets with adjustment according to the overlap of the window.
Quick attachment and release system of the chain to the window.
Double mesh chain with very high resistance to peak loads.

SPECIFICATIONS:
Supply voltage: 230V~50Hz
Maximum applicable tensile load: 200 N
Strokes: 200 and 380 mm
Absorption: 0,23 A
Power: 45 W
No-load travel speed: 37 mms
Empty stroke duration: 11 s
Double electrical insulation: yes
Type of service: S2 of 4 min
Operating temperature: - 5°C + 50°C
Degree of protection of electrical devices: IP 30
Bracket adjustment for overlap: 30 mm max
Parallel connection of 2 or more actuators: yes
Connecting and synchronizing multiple C25s on the same window: S version
Acoustic device for incorrect mounting signalling: yes
