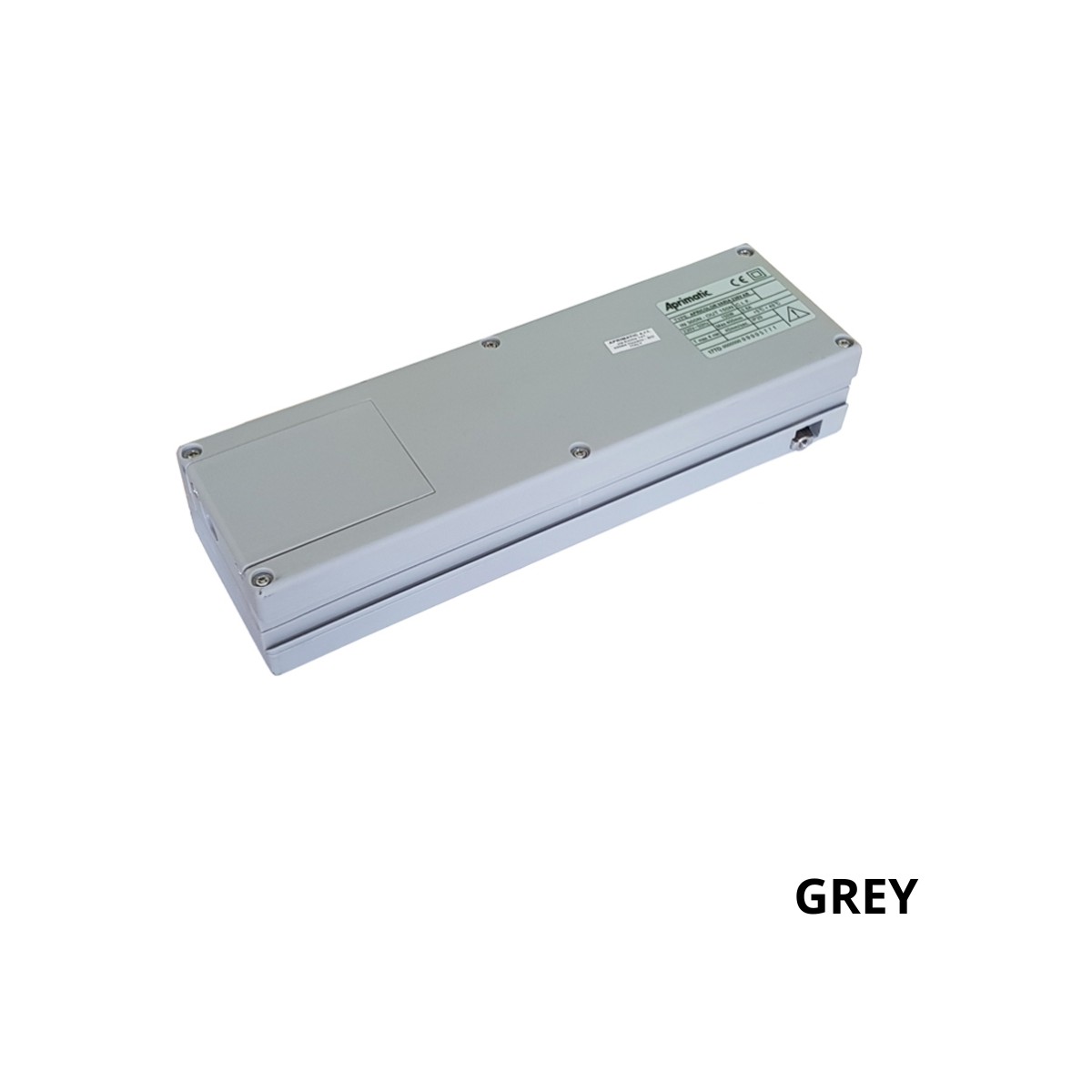

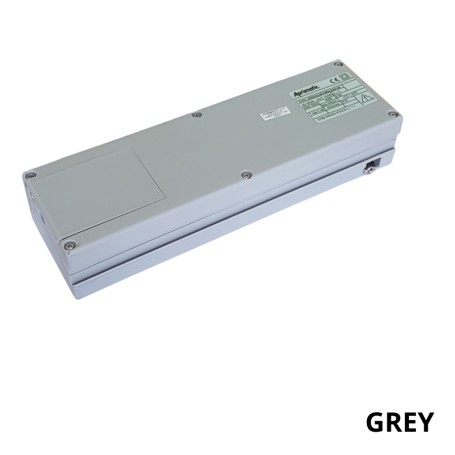

Chain actuator APRICOLOR VARIA T Grey RAL 9006 230V – Code 43503/026

The VARIA T Apricolor (code 43503/026) is an electromechanical chain actuator designed for the automation of bottom-hung and top-hung windows.
The T version is specifically designed to be used in pairs on a single window with a width of more than 1600 mm, ensuring stable and synchronized movement between the two motors.

The actuator is enclosed in a robust RAL 9006 grey nylon casing, with dacromet-treated chain to resist oxidation and ensure long life.

The adjustable stroke from 90 to 400 mm allows the movement to be adapted to the different needs of the window, while the 230 V operation allows direct integration with standard automation systems.
Parallel connection is possible on a single frame, with built-in relay and indicator light for immediate control of the operating status.

Thanks to its compact structure and Apricolor construction quality, the VARIA T is the ideal solution for reliable, quiet and easy-to-maintain systems.

Specifications:

• Brand: Opener

• Model: VARIA T

• Product code: 43503/026

• Color: Grey RAL 9006

• Power supply: 230 V AC

• Power consumption: 150 W – 40 W

• Current consumption: 0.8 A (AC) / 1.8 A (DC)

• Thrust force: 150 N

• Pulling force: 300 N

• Adjustable stroke: 90 – 400 mm

• Travel speed: 40 mm/s

• Front adjustment: max 10 mm

• Parallel connection: Yes

• Thermal protection: 100 °C (230 V versions only)

• Capacitor: 4 μF

• Built-in relay: yes

• Indicator light: Yes

• Removable terminal block: yes

• Degree of protection: IP20

Notes and applications:

• Actuator to be combined with a second VARIA T on frames > 1600 mm

• Ideal for bottom-hung windows, skylights, domes and top-hung windows

• Easy installation and low maintenance
