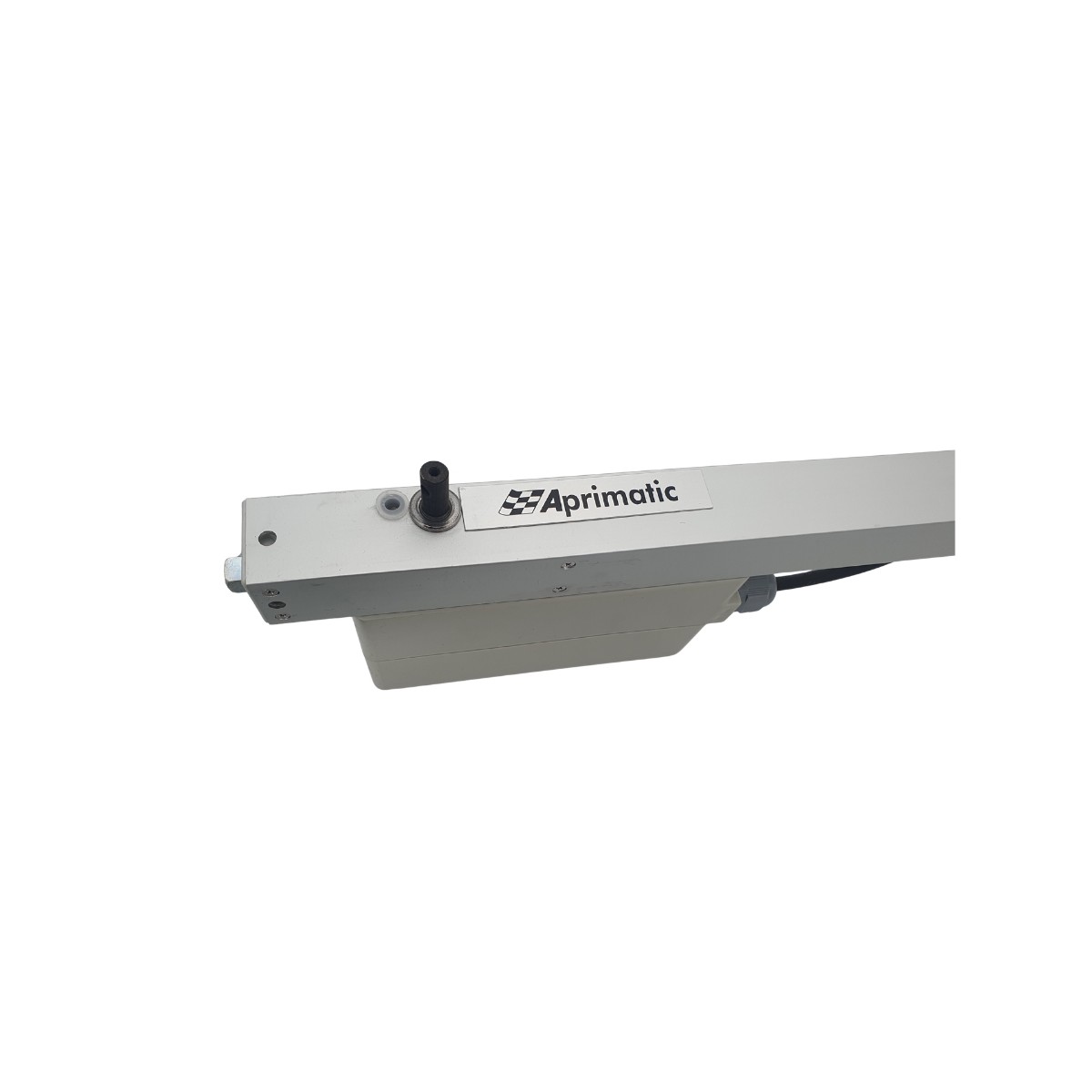

Rack and pinion linear motor APRI 23 230V 650N Stroke 230 mm APRIMATIC 43572/001

APRIMATIC 43572/001

OPEN 23 230V RACK AND PINION LINEAR MOTOR 650N STROKE 230mm

APRI 23 230 Stainless Steel Rack Actuator Motor Version with thrust force 650N. Stroke max.230mm 43571/002

Linear opener is the electric actuator in aluminum with linear rack and pinion movement equipped with electronic limit switch,

IP65 degree of protection, possibility of parallel connection, anti-interference capacitor, complete with anodized aluminum bracket and

Attachment to the galvanized steel frame. The rack is made of galvanized C43 steel, with a square section of 10x10.

Linear opener is robust, safe and versatile, an easy-to-install product not subject to any type of maintenance.

TECHNICAL DATA:

POWER SUPPLY: 230 Vac - 50 Hz - 24 Vdc

ABSORBED POWER: 20 W

ABSORBED CURRENT: 0.09 A in AC / 0.8 A in DC

PUSHING AND TRACTION FORCE: 200 N

TRAVEL SPEED: 30 mm/s

AVAILABLE STROKES STANDARD: Up to 230 mm

CONNECTABLE IN PARALLEL: YES

LIMIT STROKE :Electronic

QUALITY MARKS

OPERATING TEMPERATURE:-5° +40° C

PROTECTION DEGREE: IP65
