BFT SHYRA AC SL 230 – Replacement Board for DEIMOS AC A600 – 2610718

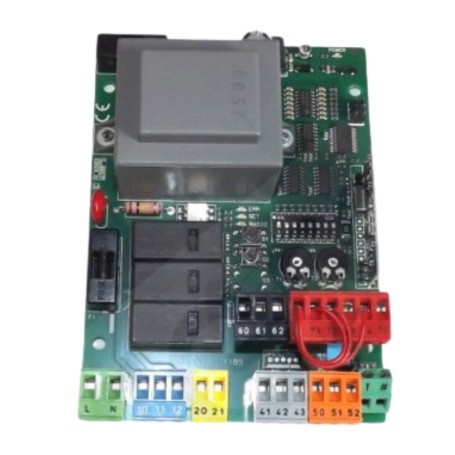

The SHYRA AC SL 230V BFT control board is the ideal solution for the management and control of automated sliding gates, specifically designed for integration with DEIMOS AC A600 operators. This electronic control unit guarantees reliability and precision in opening and closing operations, ensuring optimal management of the system.

Main technical features:

• Board power supply: 230V single-phase, 50/60 Hz

• Accessory power supply: 24V~ (max 0.2A)

• Maximum manageable power: 500W

• Maximum working time: 120 seconds

• Operating temperature: -20°C to +55°C

• Mains Isolation/Low Voltage:

  2 MΩ at 500V

• Dielectric strength mains/lt: 3750V~ for 1 minute

• Built-in radio receiver: 433.92 MHz rolling code

• Remote control storage capacity: up to 63 devices

• Parameter configuration: via trimmer and DIP switch

• Pedestrian opening function: working time can be set to 8 seconds




Compatibility and replacements:

The SHYRA AC SL 230V is compatible with DEIMOS AC A600 operators. If you are replacing old MIZAR boards, you will need to update your remote controls, as the previous ones are not compatible with the new built-in receiver.

Installation and maintenance:

The board is equipped with a removable terminal block, facilitating wiring and maintenance operations. It comes with pre-wired bridges to simplify installation. It is critical to remove the bridges on terminals 70-71, 70-72, and 70-74 if these are used for external connections.

Applications:

Ideal for the automation of residential and commercial sliding gates, the SHYRA AC SL 230V offers efficient and safe management of the opening system, ensuring high performance and reliability over time.
