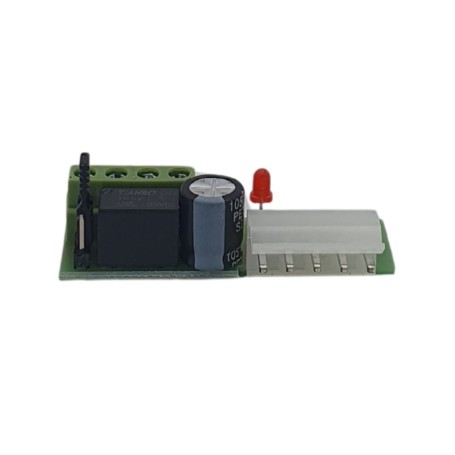

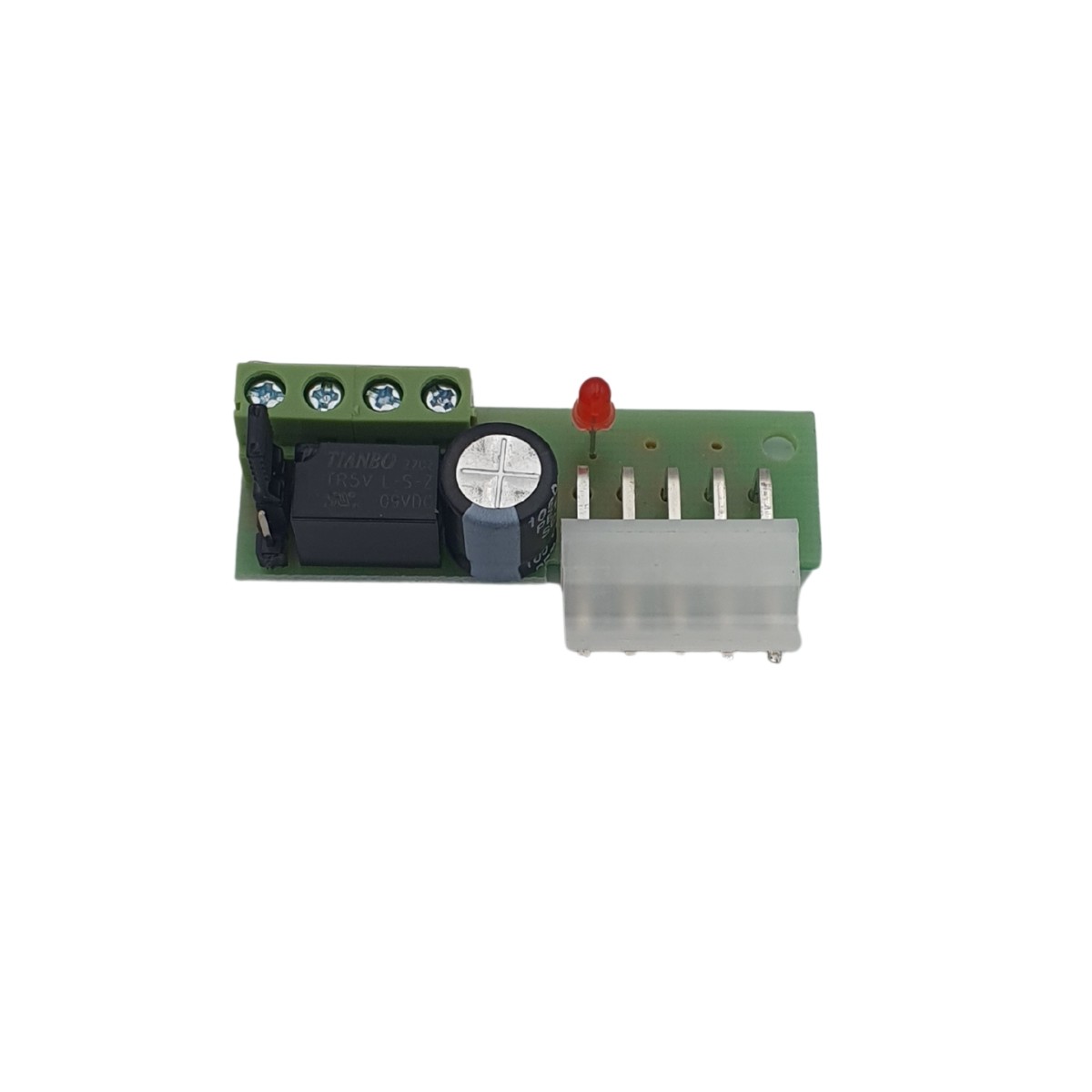

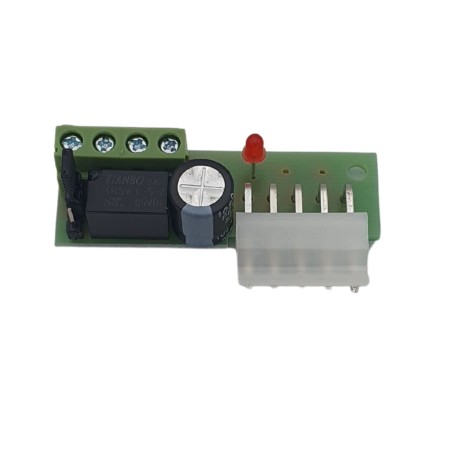

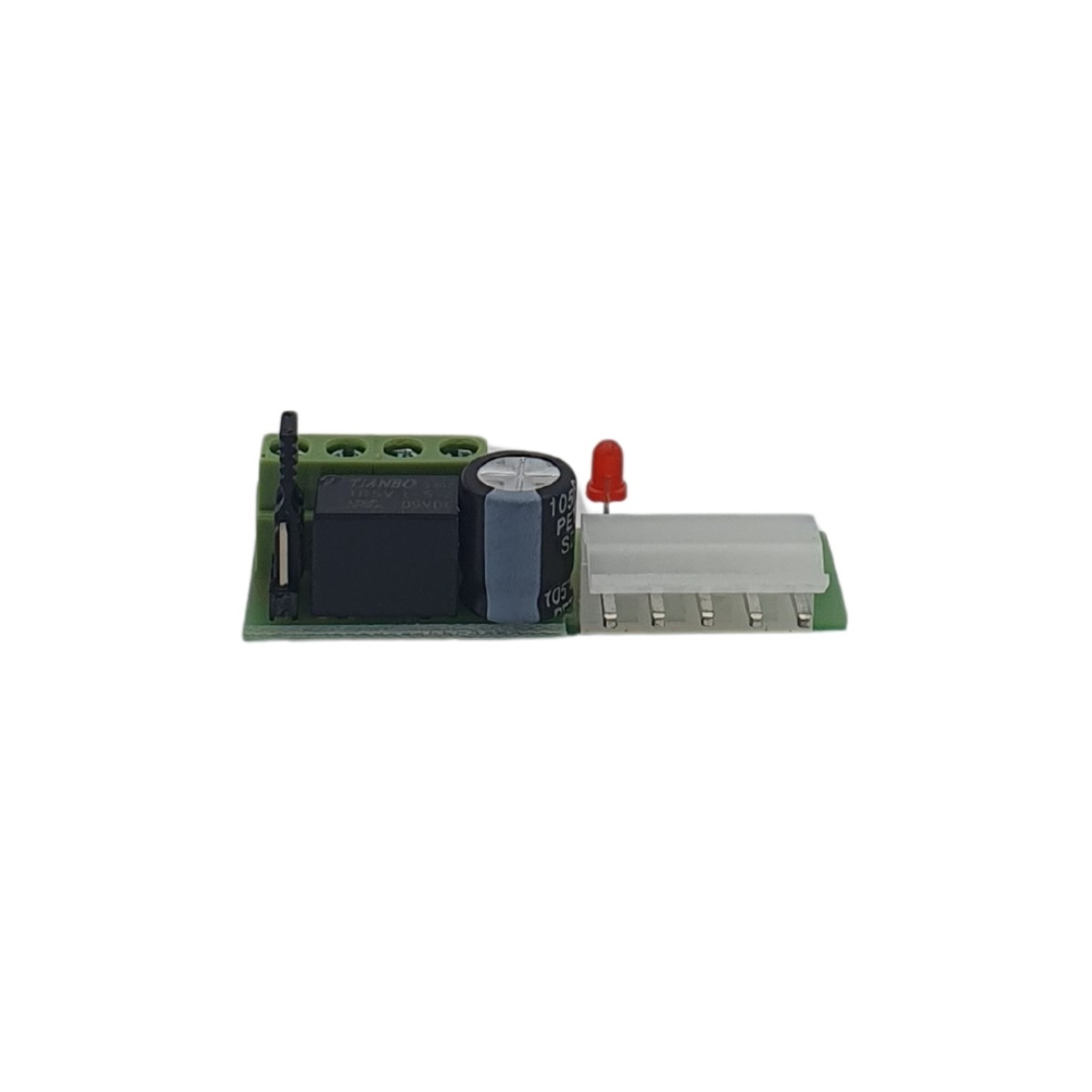

ADT-FAC-1K – Plug-in FAAC Receiver Adapter Board with Terminal Output and NO/NC Dry Contact (24 V)

The ADT-FAC-1K is a universal adapter card that allows plug-in FAAC receivers to be used on third-party control panels or systems that do not have a dedicated slot.

This module converts the FAAC plug-in connector into standard clamp outputs , making the receiver compatible with any operator that has a START or OPEN dry contact input.

The board is powered by 24 V (DC), while the output is provided by a single-channel relay with dry contact freely selectable as NO or NC via jumper or selector.

It is the ideal solution for those who want to take advantage of radio remote controls FAAC on control panels of other brands, or for tests, retrofits and conversions of existing systems.

Main features

• Compatible with FAAC plug-in radio receivers

• Power supply: 24 V dc

• Output: 1 dry contact relay (NO or NC selectable)

• Conversion from FAAC connector to standard screw terminals

• LED status indication

• Perfect for adapting FAAC receivers to power plants from other manufacturers (BFT, NICE, CAME, APRIMATIC, PROTECO, etc.)

Typical Applications

• Use of remote controls FAAC on non-FAAC control panels

• Adaptation of FAAC receivers to systems with standard terminals

• Radio output conversion → START/OPEN dry contact

• Professional installations and bench tests

Advantages

• Total compatibility with automations of any brand

• Protection of the control panel from spurious voltages: really clean output

• Simple and reliable configuration

• Compact and robust construction for professional use
