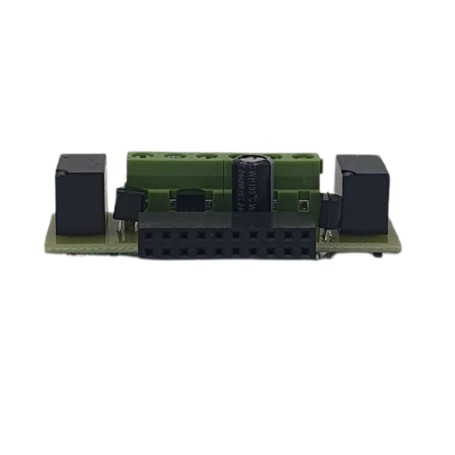

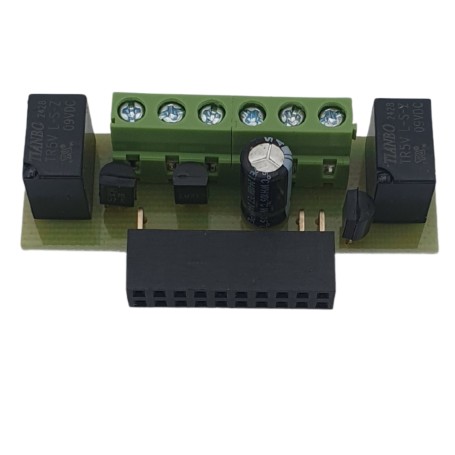

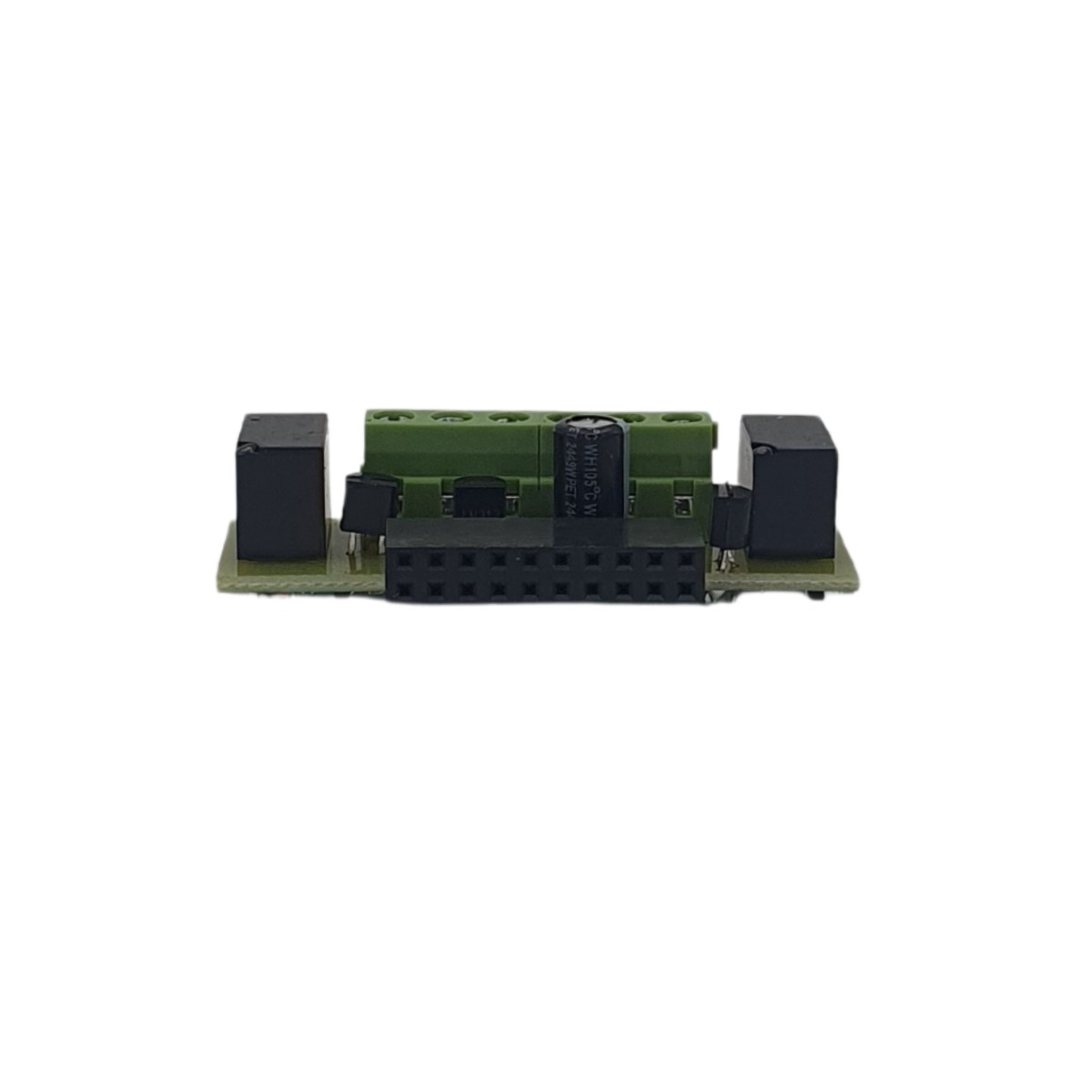

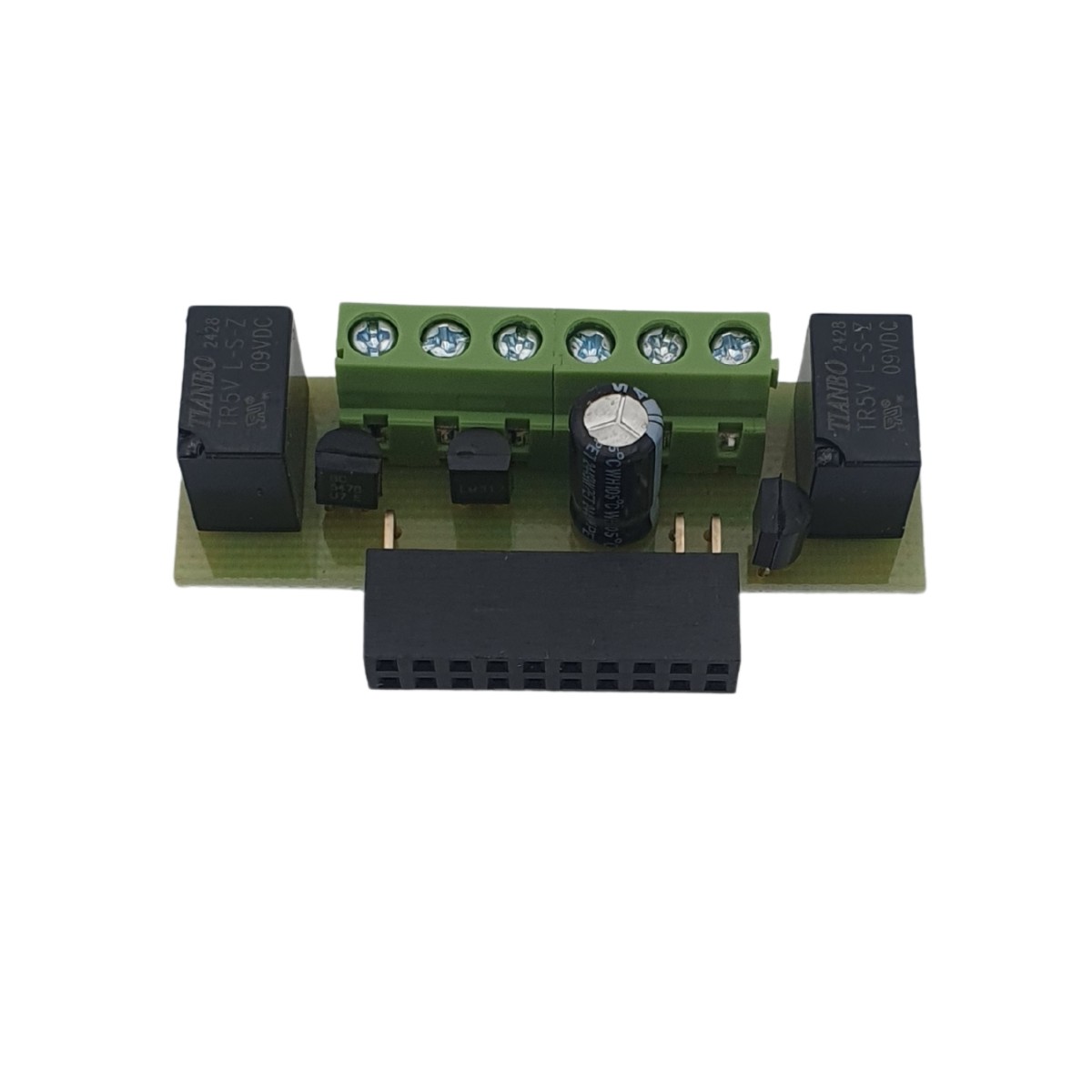

SOMMER 2-channel ADT-SMM-2K radio receiver adapter board 12/24V AC/DC power supply

The ADT-SMM-2K is an adapter board for SOMMER 2-channel radio receivers, designed for installers and technicians who need to interface a SOMMER receiver with control panels or devices that require dry output contacts.

With a universal 12/24V AC/DC power supply, the board can be used in a wide range of installations, making it easy to integrate into new or existing systems.
Each channel provides a NO dry contact output, suitable for connections to the "START", "OPEN", "PED" or similar control terminals.

Key features:

• Adapter for SOMMER 2-channel radio receivers

• Power supply 12/24V AC or DC

• 2 independent dry contact outputs NO

• Compatible with control panels from different manufacturers

• Quick and safe connection via screw terminals

Typical Applications:

• Gate automation, doors or barriers with external SOMMER receivers

• Integration between SOMMER systems and non-original control panels

• Expansion of existing radio systems with separate controls

Technical data:

• Model: ADT-SMM-2K

• Supply voltage: 12/24V AC/DC

• Number of channels: 2

• Contact Type: Clean NO

• Antenna Input: Prepared

• Type: radio adapter board for SOMMER receiver

• Usage: Professional
