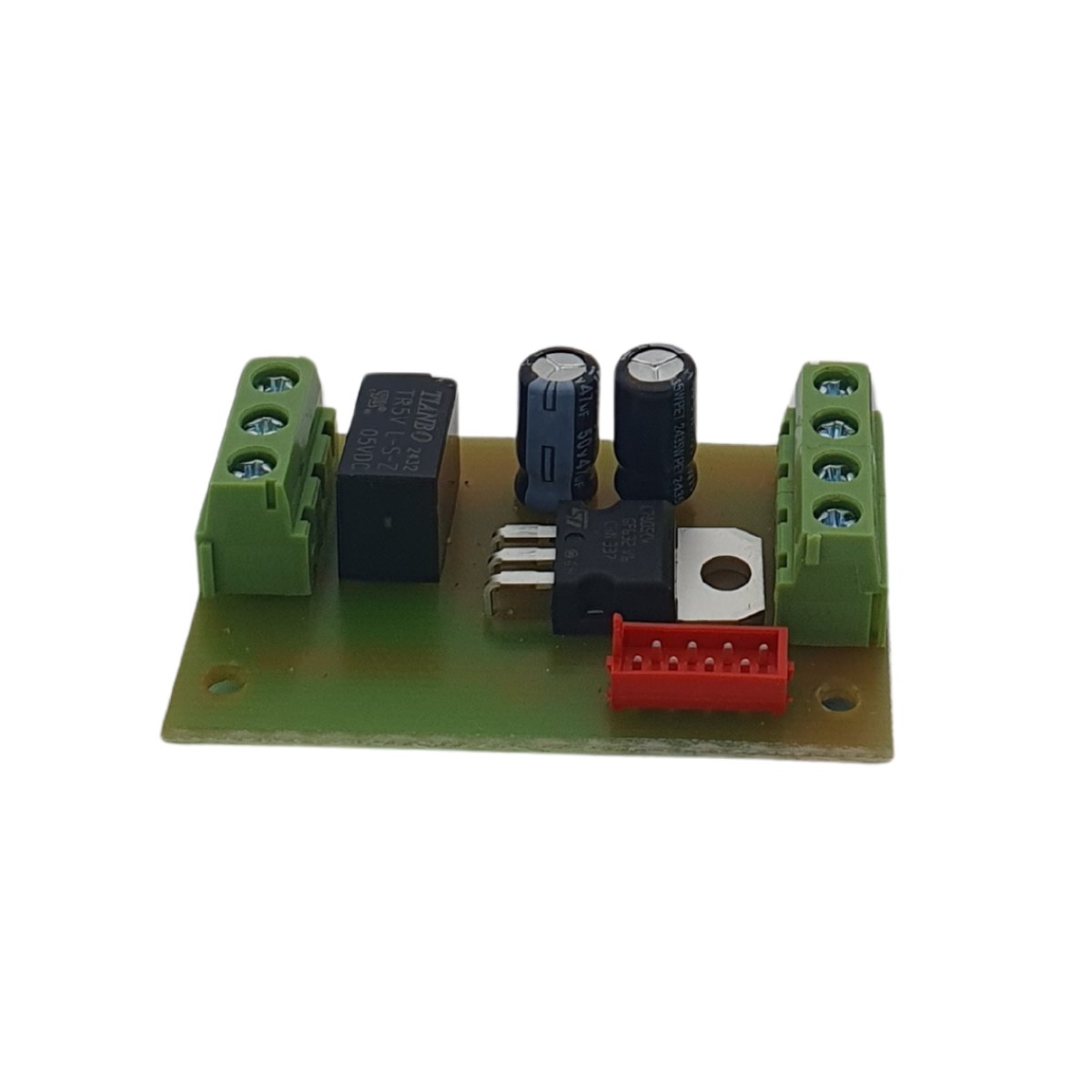

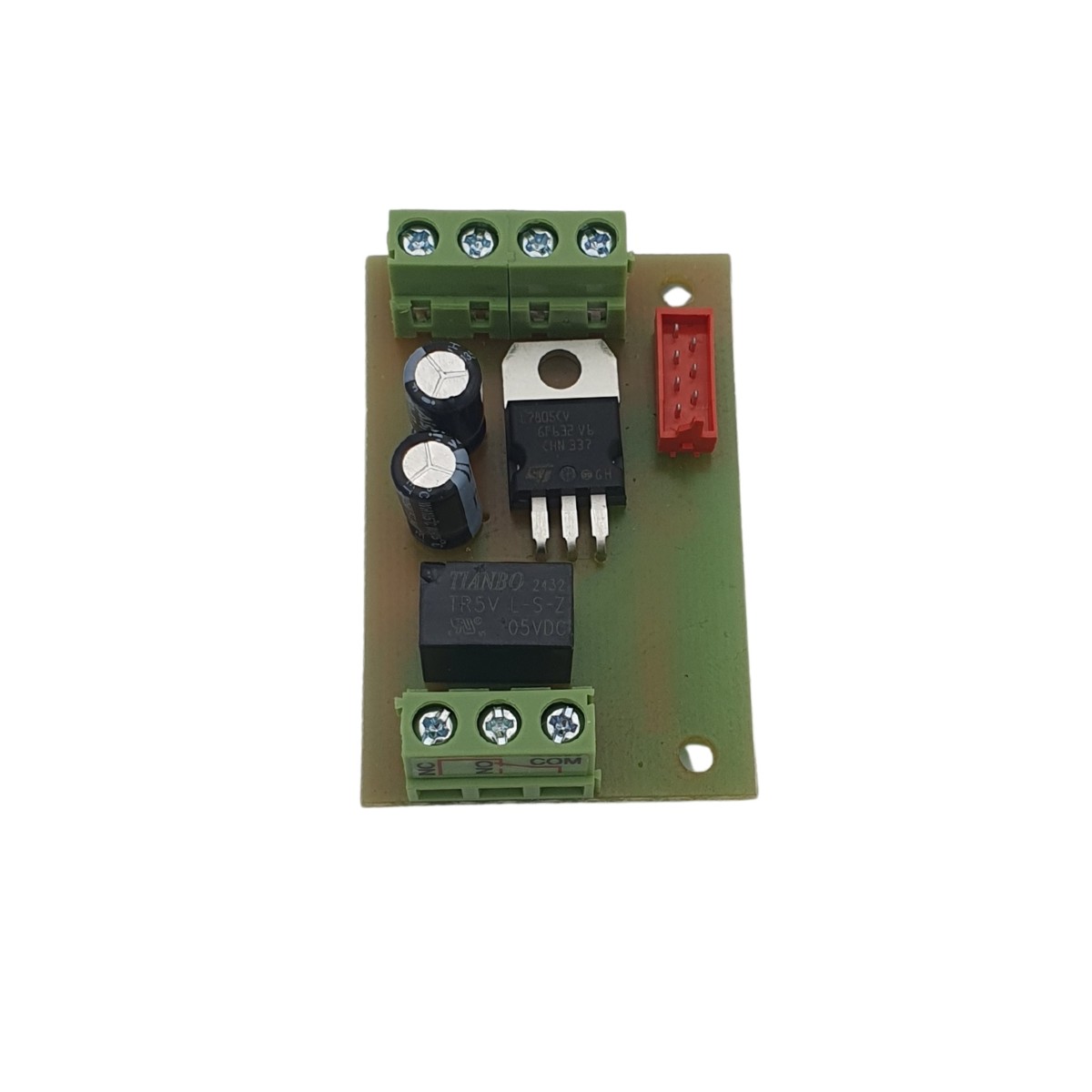

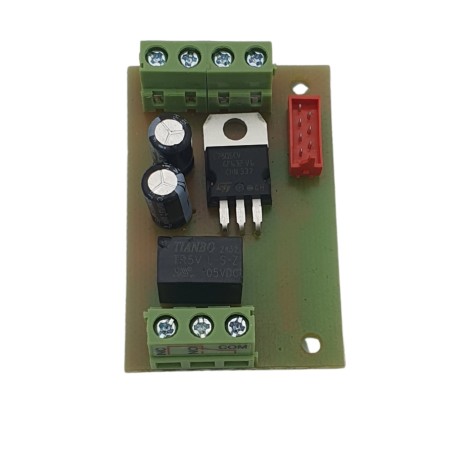

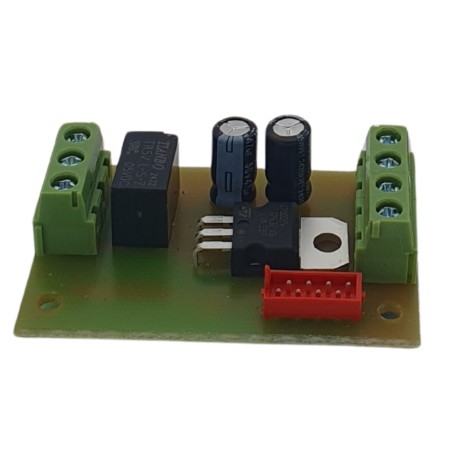

1-channel CAME radio receiver adapter board ADT-CAM-1K power supply 12/24V AC/DC

The ADT-CAM-1K is an adapter board for 1-channel CAME radio receivers, designed to allow the receiver to be quickly and safely connected to any control panel.
The output is managed by a relay with three terminals (Common, Normally Open, Normally Closed), which offers maximum compatibility with control inputs of any type: START, OPEN, PED, or similar.

Thanks to the universal 12/24V AC/DC power supply, it can be installed on a wide range of systems, both new and existing.
It is a compact and reliable solution that is suitable for professional use and designed to simplify integrations between CAME receivers and third-party exchanges.
It is not equipped with signal LEDs, to ensure minimum space and maximum ease of installation.

Key features:

• Adapter for 1 CAMEchannel radio receivers

• Power supply 12/24V AC or DC

• Relay output with Common – NO – NC contacts

• Compatible with control panels from various manufacturers

• Simple installation via screw terminals

• Robust construction, suitable for professional use

Typical Applications:

• Gate and door automations with external CAME receivers

• Integration between CAME and control systems from other brands

• Connection of receivers in multi-brand systems with dry contact controls

Technical data:

• Model: ADT-CAM-1K

• Supply voltage: 12/24V AC/DC

• Number of channels: 1

• Contact type: relay with Common – NO – NC

• Antenna Input: Prepared

• Type: radio adapter board for CAME receiver

• Mounting: on a stand or inside a container

• Usage: Professional
