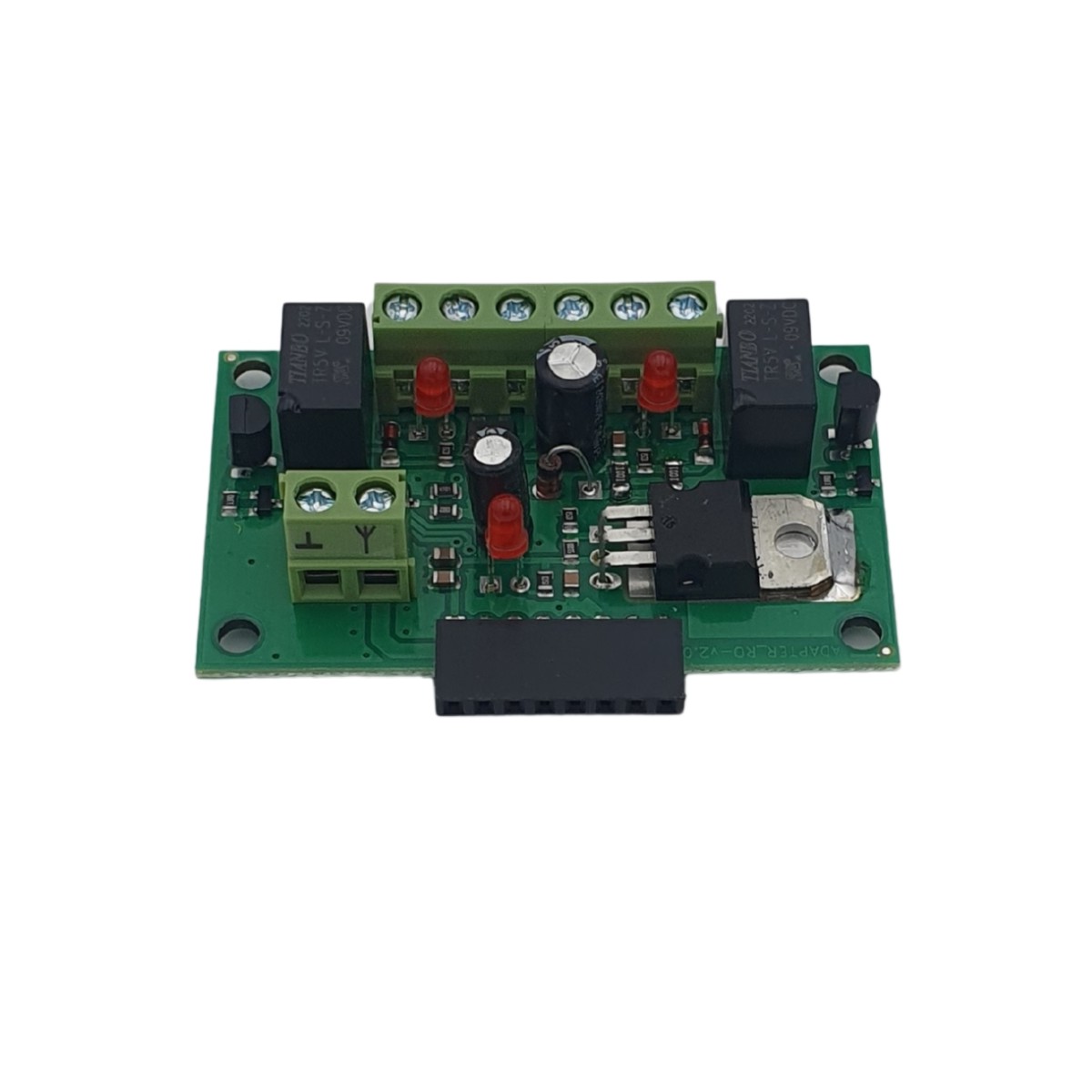

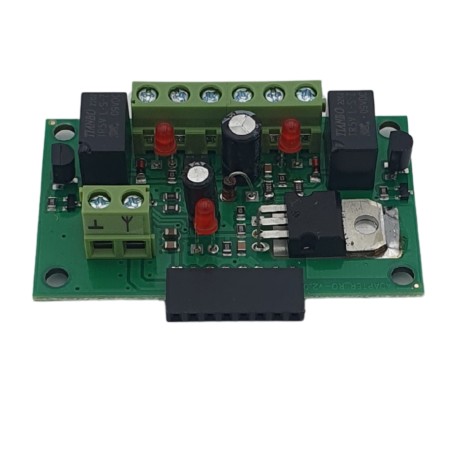

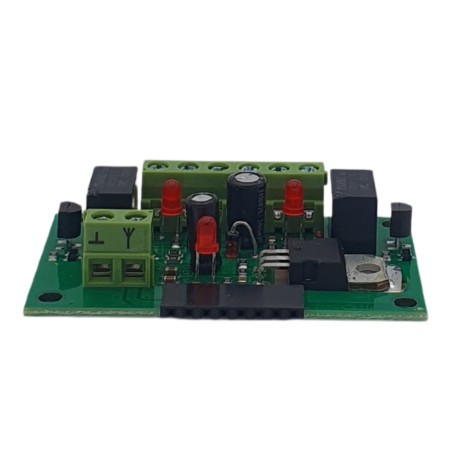

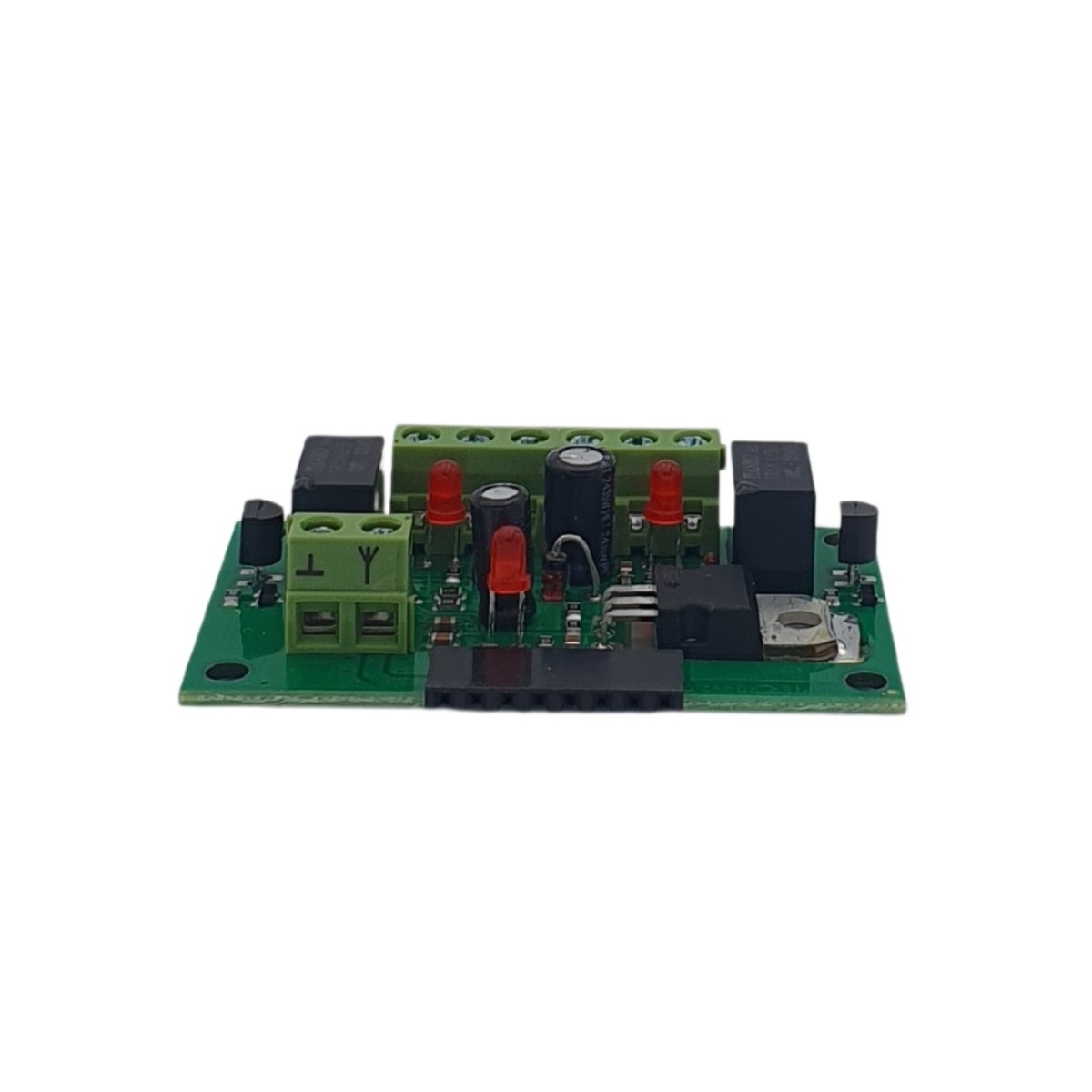

ADT-RGR-2K 2-Channel ROGER Radio Receiver Adapter Board 12/24V AC/DC Power Supply

The ADT-RGR-2K is an adapter board for 2-channel ROGER radio receivers, designed to ensure a simple and reliable connection between the receiver and any control panel.
Each channel has a normally open dry contact output (NO), making the board compatible with most of the control terminals (START, OPEN, PED, etc.) of multi-brand control panels.

Thanks to the universal 12/24V AC/DC power supply, the board can be used in almost any automation system.
It is equipped with an external antenna input and signal LEDs to indicate the status of the channels, facilitating configuration and verification operations during installation.

Key features:

• Adapter for 2 ROGERchannel radio receivers

• Power supply 12/24V AC or DC

• 2 independent dry contact outputs NO

• Signalling LEDs for each channel

• Antenna input set up

• Compatible with control panels from different manufacturers

• Simple connection via screw terminals

• Compact and robust construction, suitable for professional installations

Typical Applications:

• Gate automation, doors or barriers with external ROGER receivers

• Integration of ROGER receivers with control panels of other brands

• Expansion or replacement of radio receivers in multi-brand systems

Technical data:

• Model: ADT-RGR-2K

• Supply voltage: 12/24V AC/DC

• Number of channels: 2

• Contact Type: Clean NO

• Antenna Input: Prepared

• Signal LED: Present

• Type: radio adapter board for ROGER receiver

• Mounting: on a stand or inside a container

• Usage: Professional
