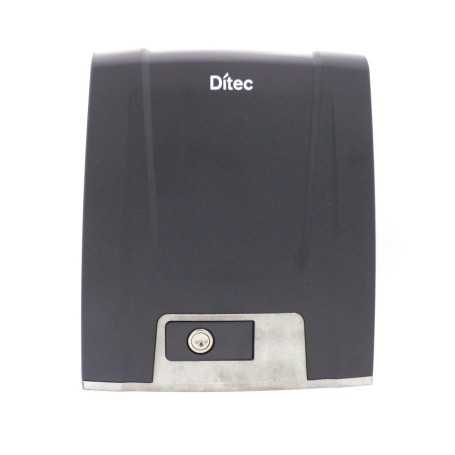

24V motor gearmotor for sliding gate max 400KG DITEC ENTREMATIC ION4

DITEC operator for sliding gates with 24V motor and suitable for handling leaves up to 400Kg in weight. One of the strengths of this operator is the management of the force according to different parameters including the temperature detected. Thanks to this unique function, the ION4 is not afraid of cold or snow because it is able to adapt its power according to the measured parameter.

The ION4 is a motor for residential sliding gates that is quick and easy to install.

The fixing plate is also included in the basic package.

The built-in control unit is the LCU48

What are the characteristics of the ION4 of the DITEC

• Dimensions: 260x195x300mm
• Load capacity 400 KG
• VIRTUAL ENCODER STROKE MANAGEMENT
• Maximum opening 12 Mt
• Frequent class of service tested up to 150,000 cycles
• Power supply 230 Vac - 50/60 Hz
• Motor power supply 24 Vac 50/60 Hz
• Power consumption 0.45 A
• Thrust 600 N starting point
• Opening and closing speed 0.1 - 0.3 m/s
• Release for manual KEY opening
• Operating temperature -20°C / +55°C (-35°C / +55°C with NIO activated)
• Degree of protection IP 44
