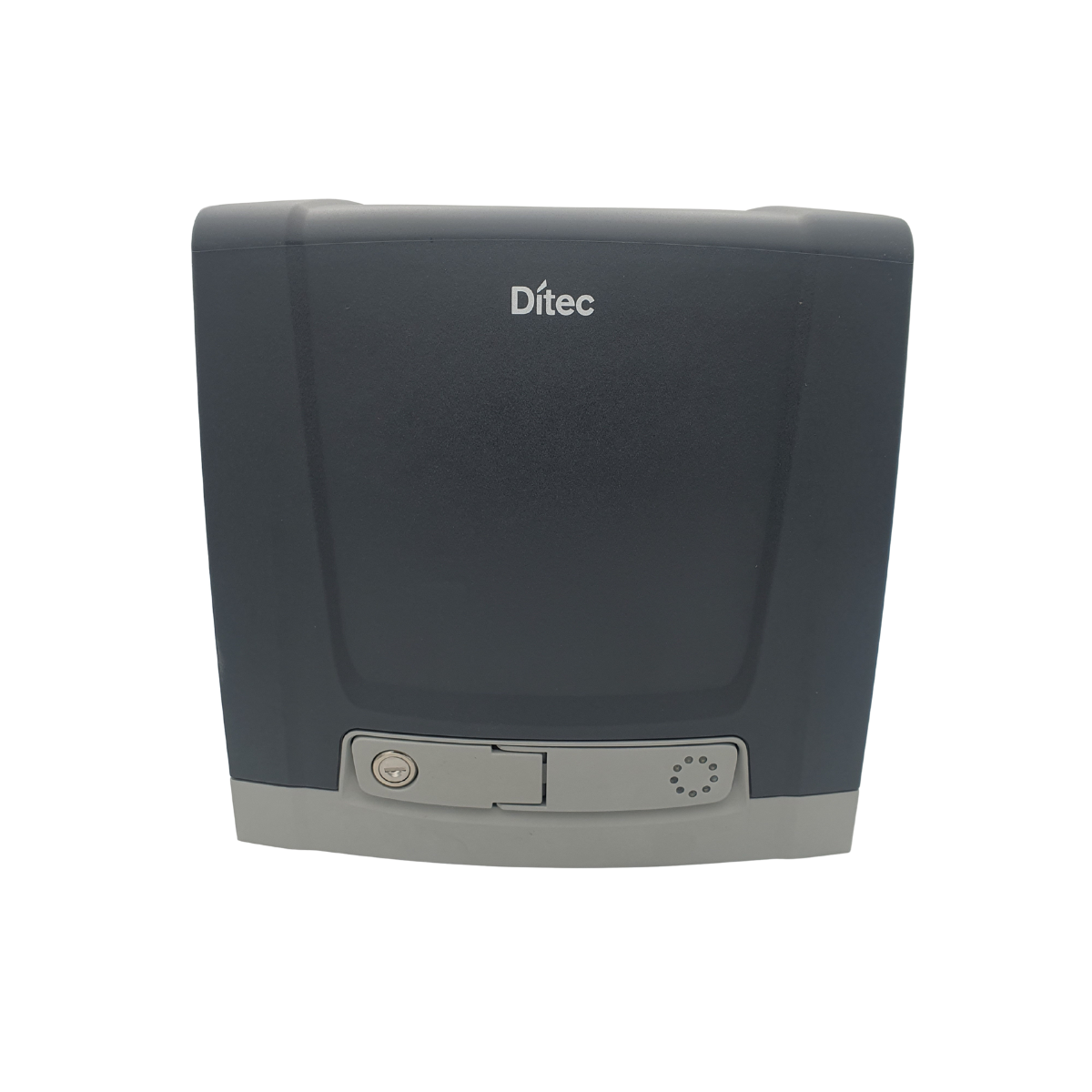

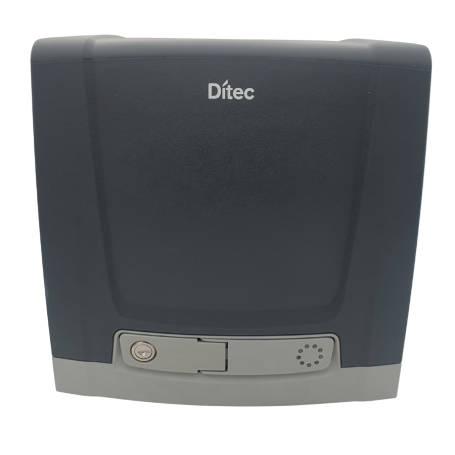

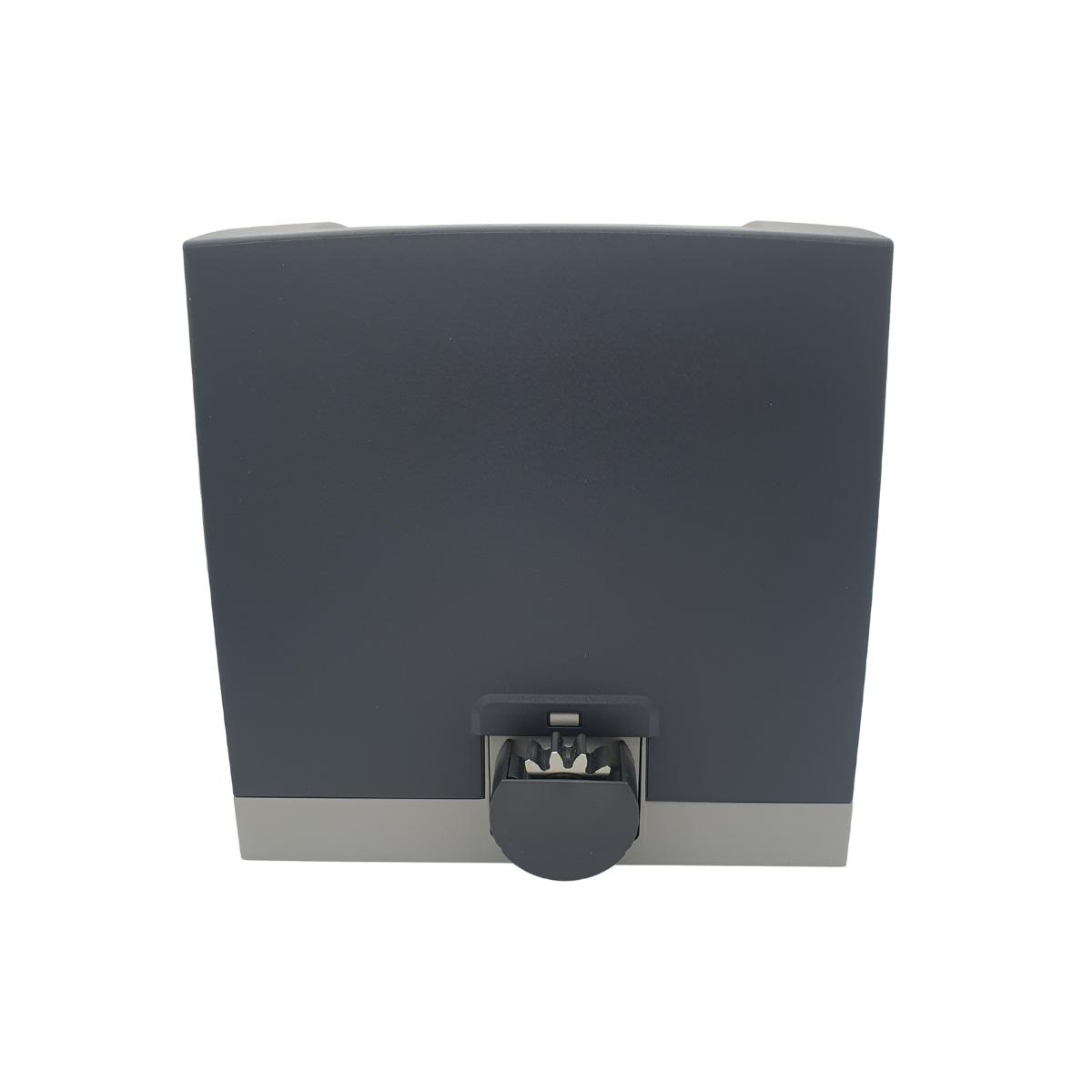

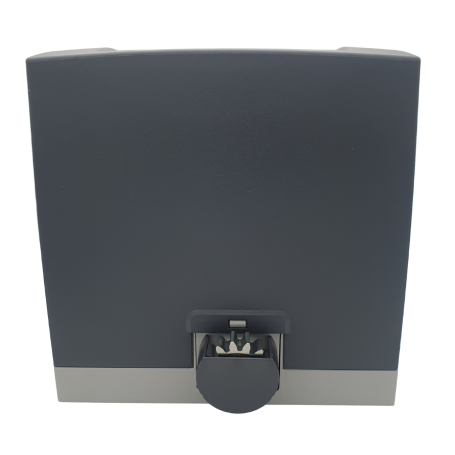

DIT-NANEOS1000G – NEOS GREEN 1000 kg DITEC sliding motor (replaces NES1000EHP NANES1000EHP)

The new NEOS GREEN 1000 DITEC (code DIT-NANEOS1000G) represents the evolution of the sliding motor for gates up to 1000 kg, definitively replacing the NES1000EHP / NANES1000EHP models.
It is a state-of-the-art electromechanical operator, compliant with the new European directives on energy saving (EU Reg. 2023/826/EU), with standby consumption < 0.5 W and advanced technology to ensure maximum reliability in all weather conditions.

Main features

• Maximum capacity: 1000 kg

• Maximum travel: 20 m

• Service class: Intensive use, tested up to 150,000 cycles

• Power supply: 230 Vac 50/60 Hz – 24 Vdc motor

• Thrust: 1000 N

• Open/close speed: 0.1 – 0.19 m/s

• Operating temperature: -20°C / +55°C (-35°C with NIO antifreeze function on)

• Degree of protection: IP24D

• Weight: 14.6 kg

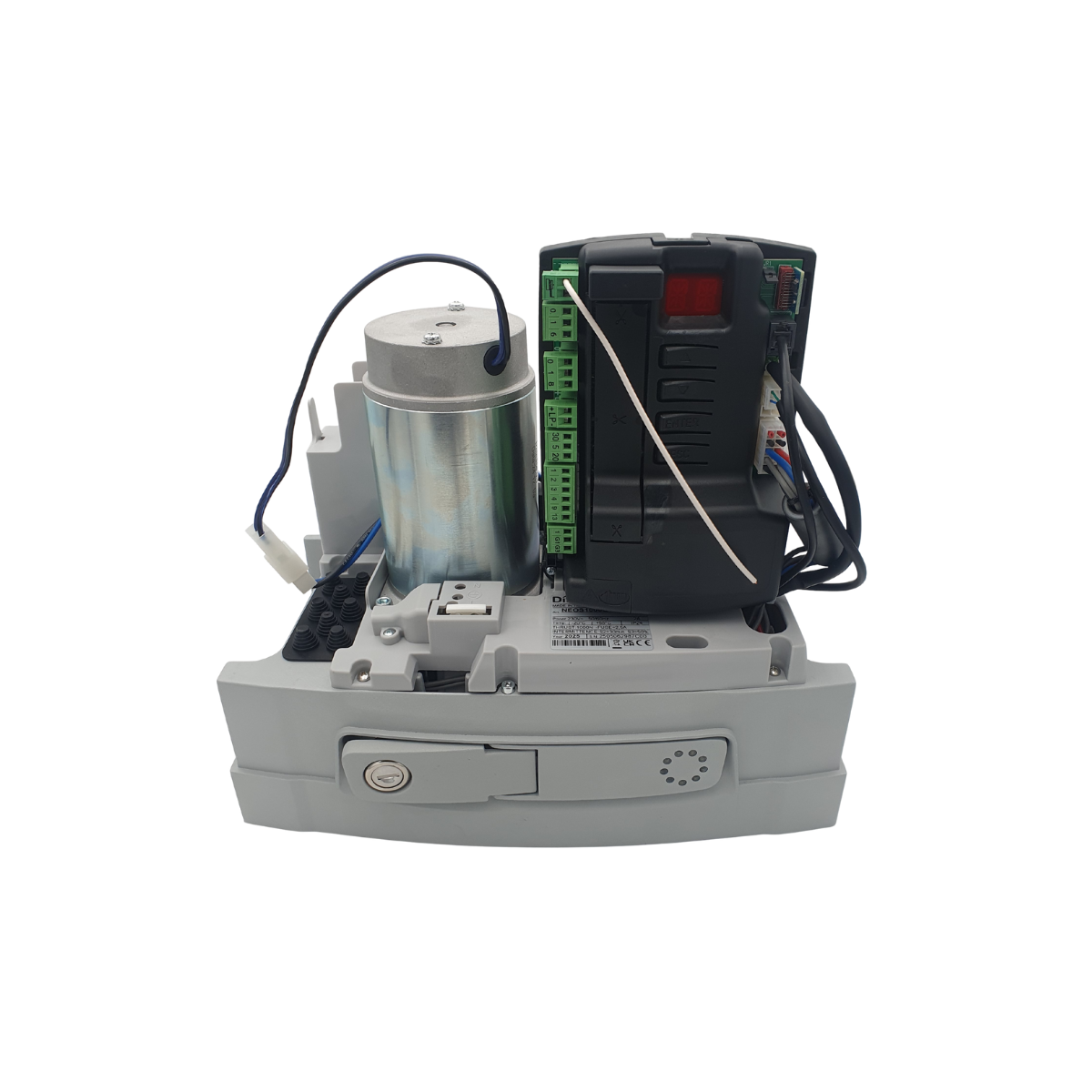

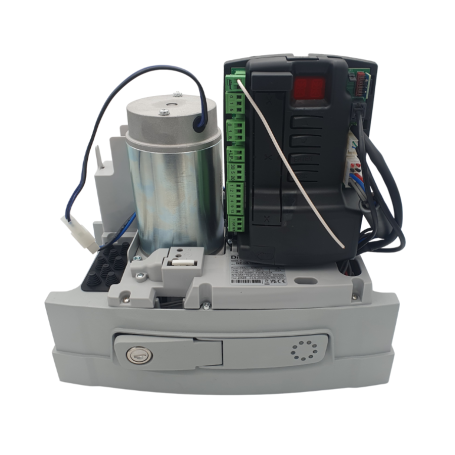

• Integrated control panel: CS12MG with display and data logging

• Bi-frequency radio receiver: RCB50E, compatible with 433.92 MHz and 868.35 MHz

• Stroke management: virtual encoder + magnetic limit switches

Advanced features

• Easy self-learning with display and remote control

• Removable memory for saving and duplicating parameters

• Integrated diagnostics with counters and alarm history

• High safety: ODS obstacle detection, safety test function, stop/reverse in case of emergency

• Protected mode with AES-128 encryption against remote control cloning

• Battery and solar panel compatibility (via SBU)

Strengths

• Increased robustness: die-cast aluminium base and bronze gears

• Simplified installation: pre-prepared wiring and millimeter adjustment with dedicated fixing plates

• Energy saving: reduced standby consumption, compliant with new European regulations

• Versatility: ideal for residences, apartment buildings and medium-intensity industrial applications
