Motorization kit roller shutter with control unit and 2 radio remote controls

The KSH180-001 damper kit is ideal for those who want to motorize a damper that was previously manual.

The kit includes the basic accessories for this type of work but allows in the future, thanks to the advanced control unit, to be able to expand the system and therefore to be able to connect:

• Photocells
• Flashing
• Courtesy lights
• Safety Edges

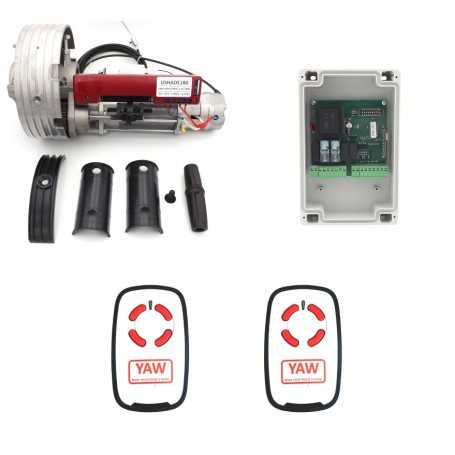

In particular, inside the kit you will find:

• N. 1 Motor with electric brake
• N. 1 Control unit with radio receiver
• N. 2 Remote Controls

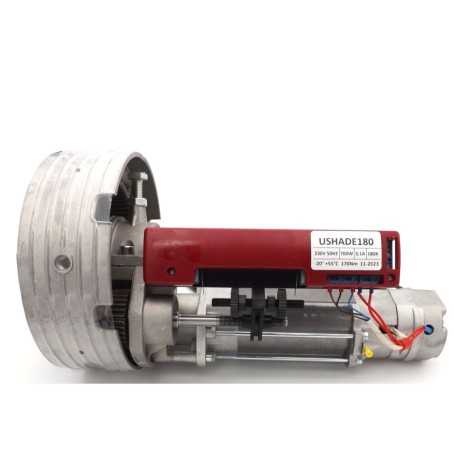

The motor is able to lift a damper with a maximum weight of 180Kg and also has adapters for the 200/220 springs and the 48/60 mm pole. It is also equipped with an electric brake including release from the inside, if you do not have another access you must install an external release with blind.

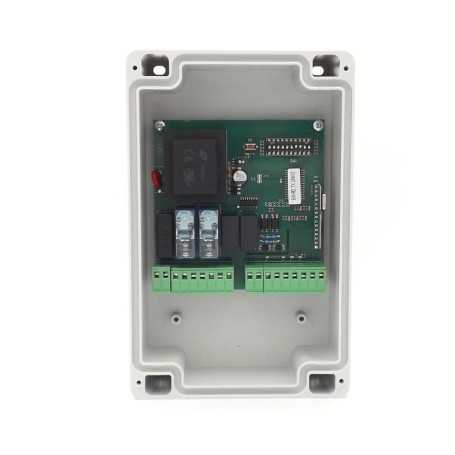

The control unit is complete with watertight box and radio receiver where remote controls can be programmed and different operating modes with both single and double buttons (separate up and down).

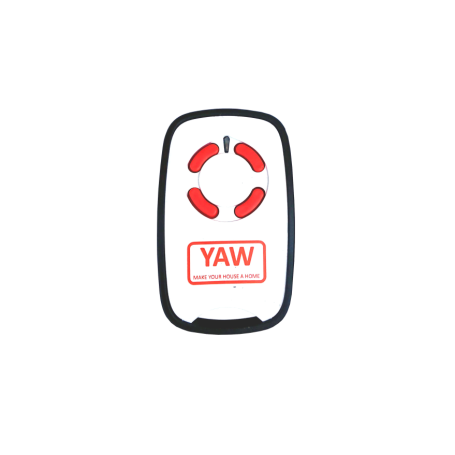

The radio remote controls included are of the rolling-code type with 12V battery and 433 MHz frequency.
