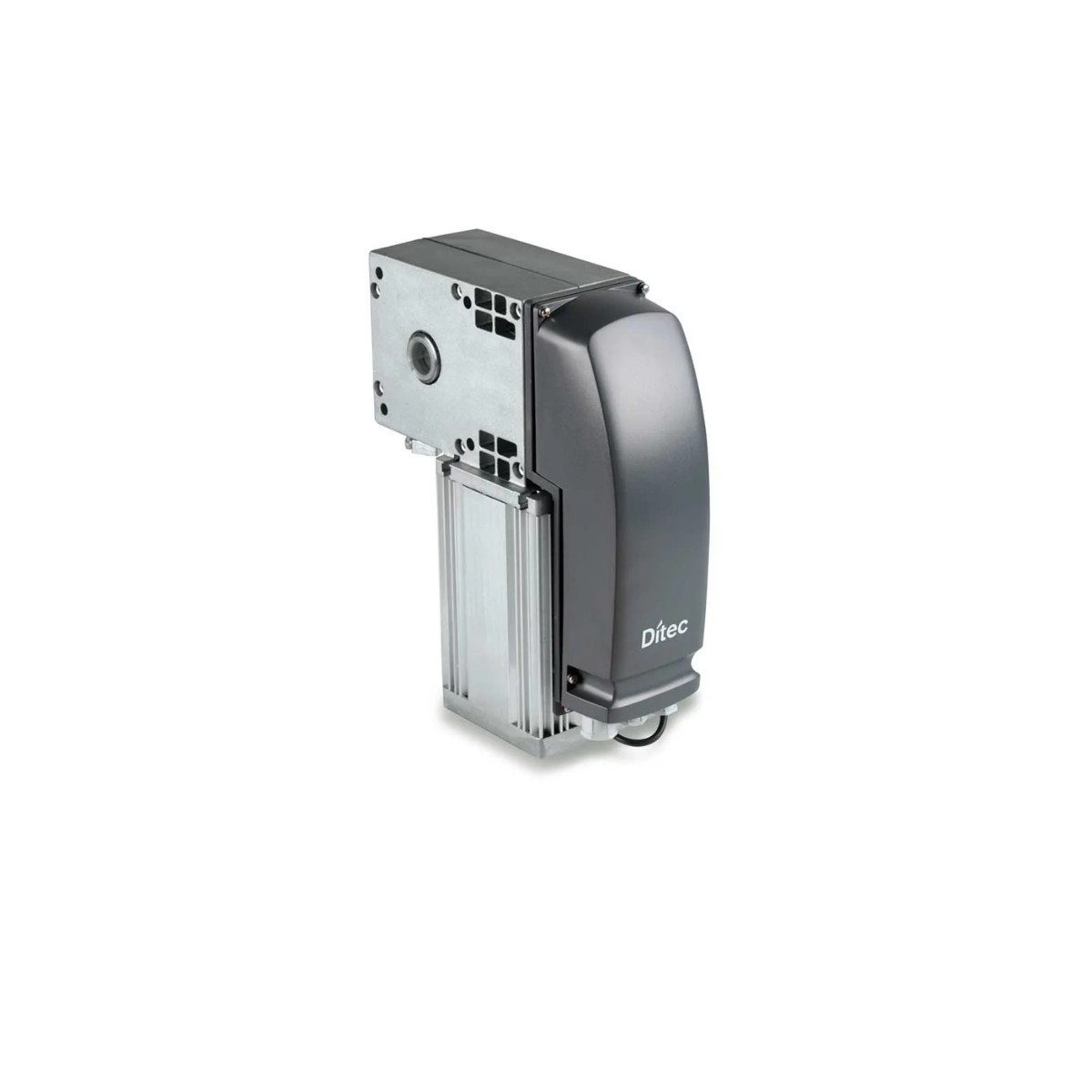

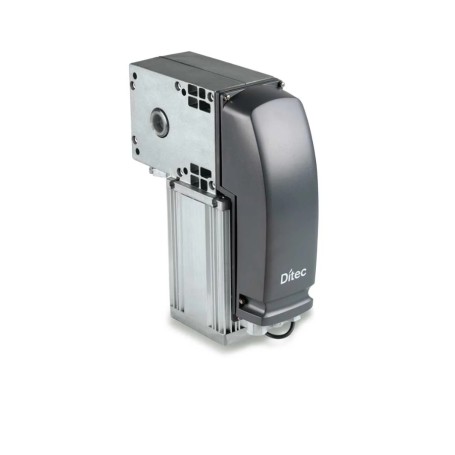

Electromechanical side actuator for sectional doors DITEC ENTREMATIC DOD14

DITEC ENTREMATIC DOD14 NADOD14

The motor is self-protected by thermal probe, equipped with built-in electric brake and adjustable rotary limit switches. It provides the possibility of manual release, chain or rod.

ELECTROMECHANICAL ACTUATOR

LATERAL USE FOR LARGE SECTIONAL DOORS

It provides the possibility of manual release, chain or rod.

Available single-phase version with 230V motor

TECHNICAL DESCRIPTION

Electromechanical actuator for sectional doors

Rotary limit switch management

Service class 4 - intense

Intermittency S2 = 30 min S3 = 50%

Power supply 230 Vac / 50 Hz

Absorption 3 A

Torque / Thrust 60 Nm

Transmission shaft revolutions 22 RPM

Release for manual crank chain opening

Operating temperature -20°C / +55°C (-35°C / +55°C with NIO activated)

Protection degree IP 40

Product dimensions (mm) 135x264x350

Control panel E1A

Warranty 24 Months
