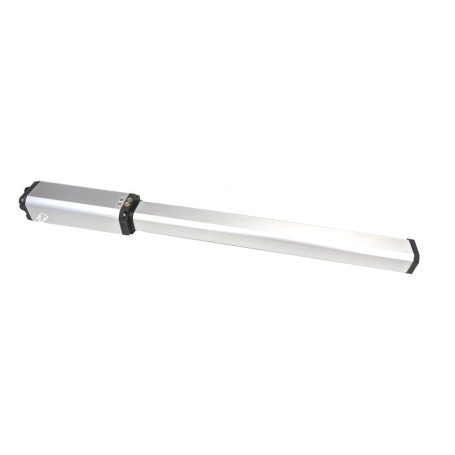

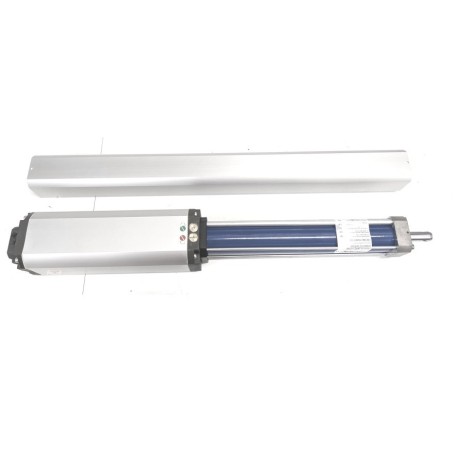

Hydraulic actuator motor for swing gates FAAC 402 CBC 104468

FAAC 104468 402 CBC lt. 1

EAN 8055195000825

Original hydraulic actuator FAAC 402 CBC 230V stroke 250mm for hinged doors up to 1.8 meters of maximum length per leaf.

Reliable and robust Internal mechanics entirely produced from solid with sintered dies.

The pump of this actuator is the best on the market, the use of this actuator is intended for intensive work cycles on apartment buildings and high mobility accesses.

CBC model with flow control valves in both manoeuvres and total lock when closing, so it does not require an electro-lock.

Pump Capacity 1lt.

Release system with triangular key placed at the top.

Includes: a hydraulic actuator with hydraulic lock in closing, installation accessories, a triangular release key, an 8μF 400V inrush capacitor.

Compatible with FAAC 452MPS, 462DF, 455D, E045, E145, E045S, E145S swing control panels

SPECIFICATIONS:

Mains supply voltage: 220-240V~ 50/60 Hz

Electric motor: Single-phase asynchronous

Max power: 220 W

Max thrust force: 5000 N (*)

Max rod speed: 13 mm/s (*)

Motor-pump unit flow rate: 1 lpm (*)

Stem stroke: 250 mm

Max leaf opening angle: 110°

Operating Ambient Temperature: -20°C ÷ +55°C

Thermal protection: 120°C

Degree of protection: IP55

Weight: 6.5 Kg

Frequency of use: 55 cycles/hour

Max leaf width: 1.80 m

Oil Type: FAAC HP OIL

Fixing brackets: Rear weld/screw attachment - front weld/screw attachment

Dimensions (LxWxH): 959 x 85 x 85 mm

Electronic equipment: Not included

24 Months Warranty
