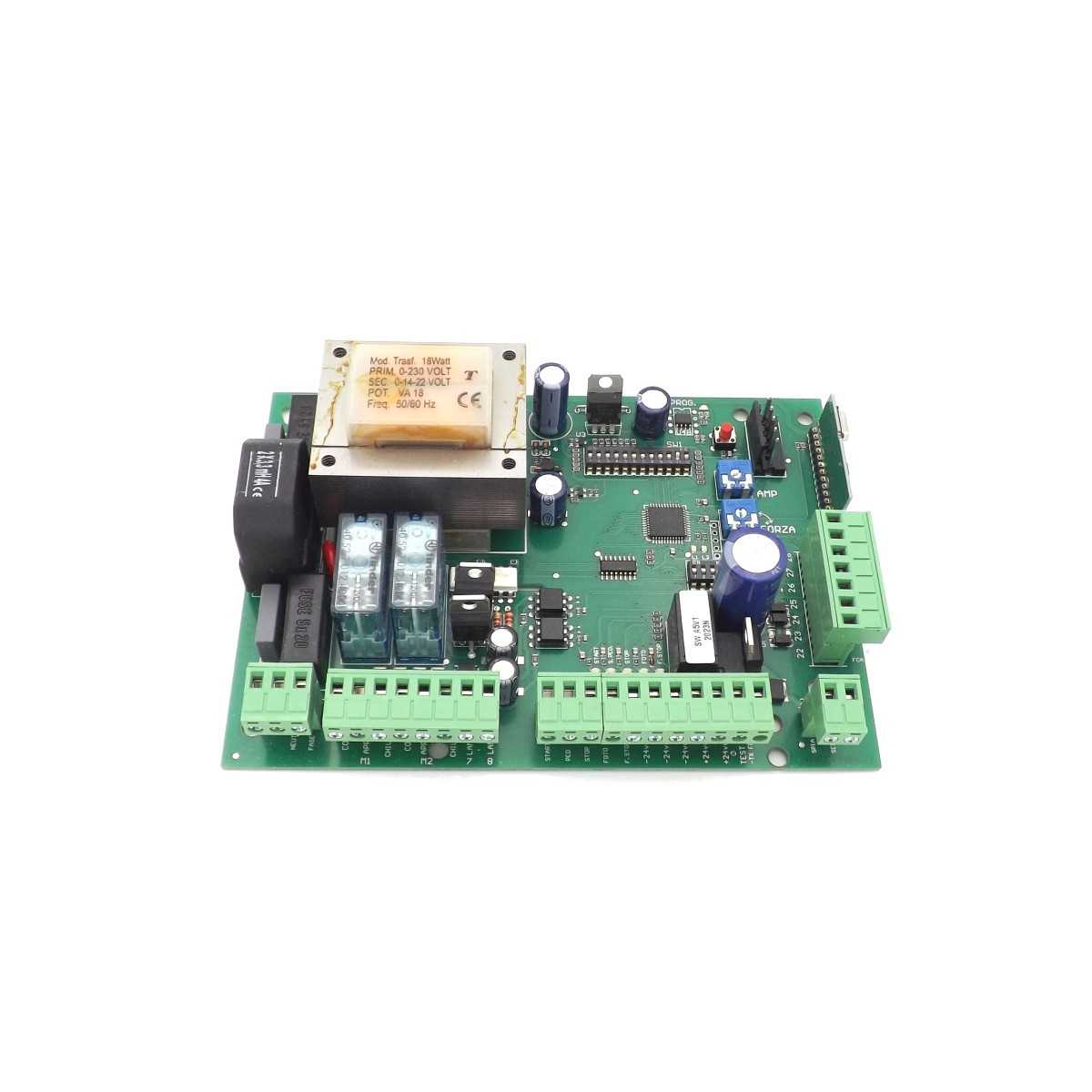

SW200-PCB Central Universal Control Board Compatible FAAC 455D 230V YAW-001000071

YAW code -001000070 ex 790917 or JA592

Control unit for swing gate with 1/2 motors at 230V, with amperometric regulation.

Fully Compatible with: FAAC 455D or JA592

In addition to the connector capable of plugging original receivers of the FAAC or GENIUS, this control unit also incorporates a 433MHz receiver capable of recording rolling-code or fixed code remote controls.

What are the technical characteristics of the SW200-PCB of the YAW?

• condominium functions, step-by-step, automatic closing, pedestrian crossing, water hammer, slowdowns,
• soft-start, opening photo, closing photo, work time adjustments, pause time, phase shift time for doors opening and closing,
• power and force adjustments of the motor, Amperometric thresholds with anti-crushing.
• Indicator light function, two limit switches, electro-lock, NC or 8K2 resistive mechanical edge.
• Mount for FAAC receiver .
• Easy to install thanks to the LEDs for control and fault diagnosis, the removable terminals and the silk-screen printing on the printed circuit board.
• Power: 1HP for 750W 4A motor
• Flashing: 230 VAC 40W
• Photocell power supply: 24 VDC 8W
• Electric lock: 12 VAC
• Pilot Lamp: 24VAC 3W
• Operating temperature: -20 +55 °C
• Dimensions 160x120x45 mm
