Hydraulic operator motor FAAC 402 CBC 104468 without accessories

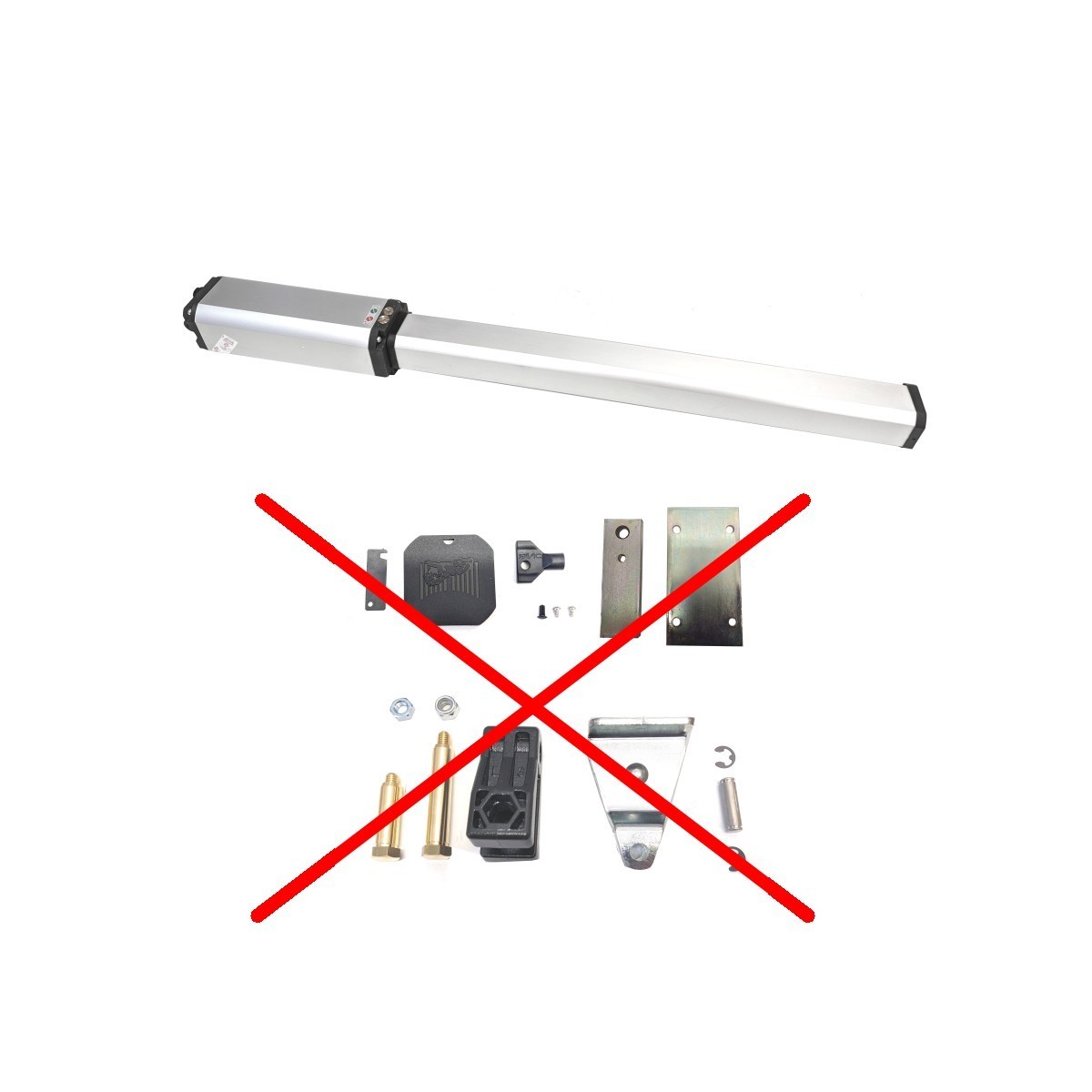

Hydraulic operator of the FAAC model 402 CBC sold exclusively as a spare part without bag, accessories and cable. The products that the operator is missing are the following:

• Front and rear anchor brackets.
• Rear fork with long and short fixing pins.
• Front crankcase cap
• Unlock key
• By-pass cover
• Power cable to connector

However, there is a full version that can be purchased by searching for the 104468 code.

The operator is new and guaranteed, it is only sold without the accessory bag and cable.

Like all products on our site, the warranty is handled directly by us.

SPECIFICATIONS:

Mains supply voltage: 220-240V~ 50/60 Hz

Electric motor: Single-phase asynchronous

Max power: 220 W

Max thrust force: 5000 N (*)

Max rod speed: 13 mm/s (*)

Motor-pump unit flow rate: 1 lpm (*)

Stem stroke: 250 mm

Max leaf opening angle: 110°

Operating Ambient Temperature: -20°C ÷ +55°C

Thermal protection: 120°C

Degree of protection: IP55

Weight: 6.5 Kg

Frequency of use: 55 cycles/hour

Max leaf width: 1.80 m

Oil Type: FAAC HP OIL

Dimensions (LxWxH): 959 x 85 x 85 mm

24 Months Warranty
