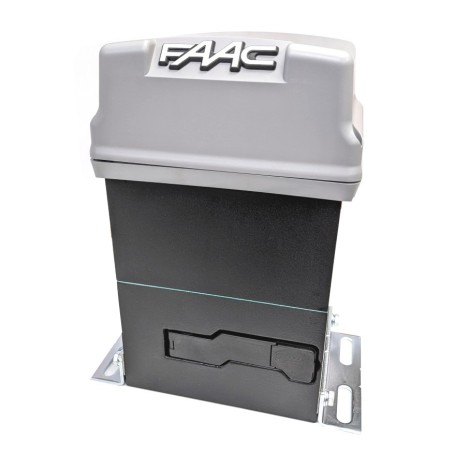

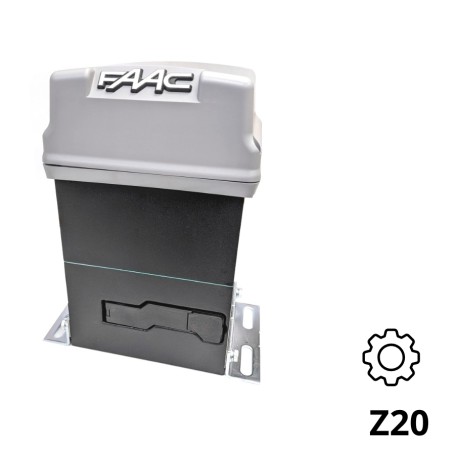

Sliding motor FAAC 746 C Z20 230V for gates up to 600 kg – Code 109746 ex 109773

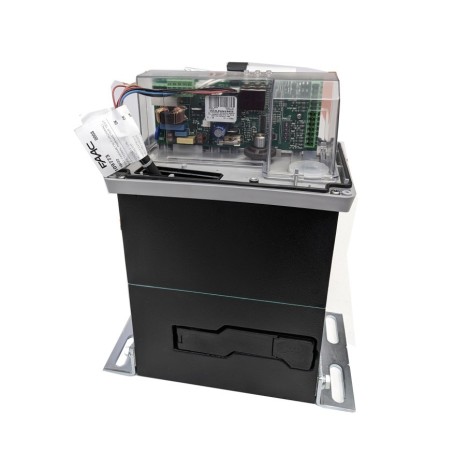

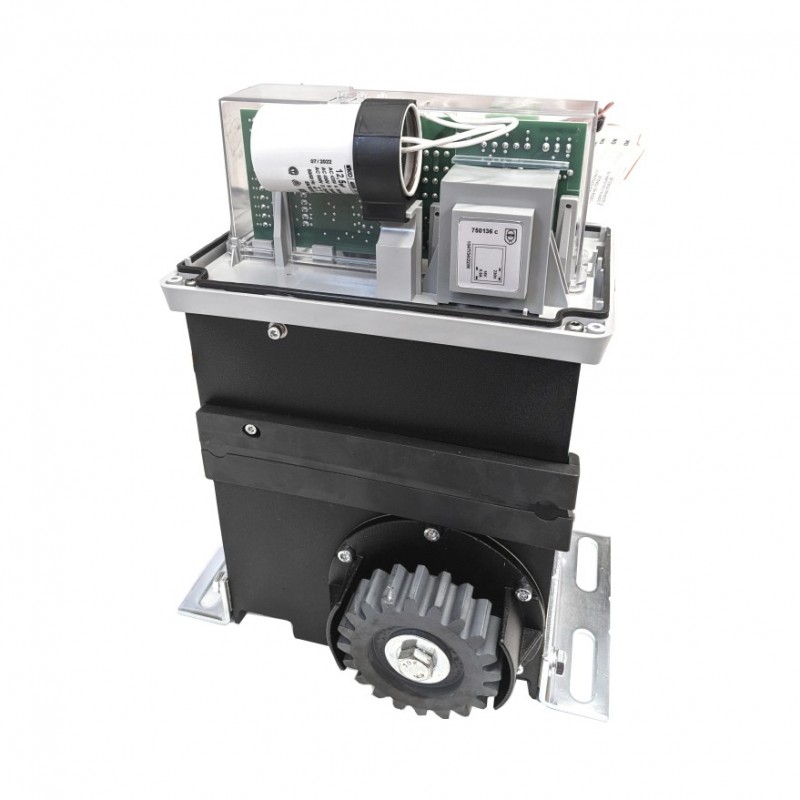

The FAAC 746 C Z20 engine (code 109746 ex 109773) is the new generation of the well-known 746 model, designed for the automation of sliding gates up to 600 kg. Thanks to the integrated E781 electronic board and magnetic encoder, it ensures high performance, safety and high precision in movements.

The robust structure with oil-bath gearmotor guarantees durability and silence, making it suitable for intensive use. The manual release device with key allows the gate to be managed even in the event of a power failure.

Specifications:

• Power supply: 230V AC – 50/60 Hz

• Power consumption: 150 W

• Maximum leaf weight: 600 kg

• Maximum leaf length: 50 m

• Sash speed: 12 m/min

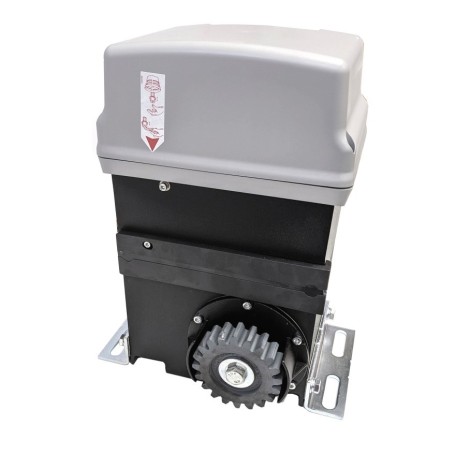

• Pinion: Z20 module 4

• Limit switch: Magnetic

• Encoder: Magnetic

• Degree of protection: IP44

• Operating temperature: -20°C ÷ +65°C

• Unit weight: 16.5 kg

• Dimensions: 275 x 191 x 336 mm

• Oil type: FAAC HP OIL

• Frequency of use: 70%

Package Contents:

• FAAC 746 C Z20 gearmotor with integrated E781 board

• Sprocket Z20

• Manual release key

• Installation Manual

The FAAC 746 C Z20 is the ideal choice for those who want to replace the old 746 model with an updated, high-performance system compatible with modern automation needs.
