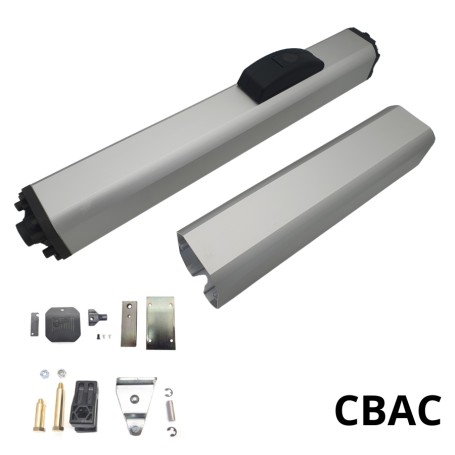

FAAC 104201 400 CBAC L.1 Hydraulic Actuator - Opening and Closing Lock - 270 mm Stroke - 230V
400 CBAC 230V FAAC hydraulic actuator with 270 mm stroke for swing leaves up to 2.2 meters. Model with total locking in opening and closing, does not require an electric lock. Ideal for high-intensity condominium systems.
Lowest price within 30 days before promotion. €978.00
Fast delivery
Available material shipped within 2-3 days
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
You Might Also Like
Related articles
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...
Read more
Single photocell that replaces all traditional photocells and reflexes
Thanks to ToF laser technology, OPTIGATE can replace any pair of photocells and reflex photocells, operating...
Read more
The FAAC 104201 400 CBAC L.1 hydraulic actuator is designed to automate swing gates up to 2.2 meters per leaf, offering a reliable, powerful solution suitable for intensive use. The internal structure is made with high quality materials machined from solid and with sintered molds, to ensure maximum strength and durability.
The CBAC model is equipped with flow control valves both in opening and closing, with integrated hydraulic lock in both phases, eliminating the need for an electric lock.
Main features
-
Hydraulic lock when opening and closing: greater security and stability of the sash.
-
1 liter pump for high performance even with repeated cycles.
-
Key-protected release system for safe manual manoeuvring.
-
Designed for intensive use up to 70 cycles/hour.
-
Compatible with FAAC control units: 452MPS, 462DF, 455D, E045, E145, E045S, E145S.
Technical specifications
| Specification | Value |
|---|---|
| Feeding | 220–240V ~ 50/60Hz |
| Engine | Single-phase asynchronous |
| Input | 220 W |
| Maximum Thrust Force | 6200 N (*) |
| Rod speed | 10 mm/s (*) |
| Motor-pump flow rate | 1 lpm (*) |
| Stem stroke | 270 mm |
| Maximum sash opening angle | 125° |
| Operating Temperature | -20°C ÷ +55°C |
| Thermal protection | 120°C |
| Degree of protection | IP55 |
| Weight | 8.6 Kg |
| Frequency of use | 70 cycles/hour |
| Maximum sash width | 2.20 m |
| Recommended oil type | FAAC HP OIL |
| Fixing brackets | Rear weld/screw, front weld |
| Dimensions (LxWxH) | 1034 x 85 x 119 mm |
| Electronic Equipment | Not included |
(*) indicative values depending on the application
Package Contents
-
1 FAAC 400 CBAC hydraulic actuator with hydraulic lock
-
Installation brackets and accessories
-
Manual release key
-
Inrush capacitor 8μF 400V
- Max door opening angle
- 125°
- Frequency of use
- F50 - up to 50 users
- Max door width
- 2.2 m
- Product Type.
- Single
Spare part - Electric motor
- 230V
- Supply voltage
- 220 - 240V
- Family FAAC
- 400
- Technology
- Hydraulics
- Operation
- Irreversible
8055195000573
FAC-104201
