FAAC 104206 400 SB LT.1 Hydraulic Actuator - Without Lock - 270 mm Stroke - 230V
Hydraulic actuator FAAC 400 SB 230V for swing leaves up to 4 meters. Non-locking model, ideal for heavy or panelled doors in intensive use contexts. Complete with installation accessories, release key and capacitor.
Lowest price within 30 days before promotion. €912.00
Fast delivery
Available material shipped within 2-3 days
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
You Might Also Like
Related articles
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...
Read more
Single photocell that replaces all traditional photocells and reflexes
Thanks to ToF laser technology, OPTIGATE can replace any pair of photocells and reflex photocells, operating...
Read more
The FAAC 104206 400 SB LT.1 hydraulic actuator is a professional and high-performance solution for the automation of swing gates up to 4 meters per leaf. Equipped with a 230V single-phase asynchronous motor, it is designed to ensure resistance, reliability and long life, even in conditions of intensive use, such as condominium entrances or high-frequency accesses.
Main features
-
SB model without hydraulic lock: requires the installation of an electric lock for mechanical locking.
-
Useful stem stroke of 270 mm, with a maximum opening angle of 125°.
-
Robust construction with mechanical components made from solid, hot stamped and sintered.
-
One of the most performing 1-litre pumps on the market, ideal for repeated and continuous cycles (up to 70 cycles/hour).
-
Suitable for heavy or panelled sashes, where a high thrust force of up to 6200 N is required.
-
Compatible with FAAC control panels: 452MPS, 462DF, 455D, E045, E145, E045S, E145S.
Technical specifications
| Specification | Value |
|---|---|
| Feeding | 220–240V ~ 50/60Hz |
| Engine | Single-phase asynchronous |
| Input | 220 W |
| Maximum Thrust Force | 6200 N (*) |
| Rod speed | 10 mm/s (*) |
| Motor-pump flow rate | 1 lpm (*) |
| Stem stroke | 270 mm |
| Maximum sash opening angle | 125° |
| Operating Temperature | -20°C ÷ +55°C |
| Thermal protection | 120°C |
| Degree of protection | IP55 |
| Weight | 8.6 Kg |
| Frequency of use | 70 cycles/hour |
| Maximum sash width | 4.00 m (with electric lock) |
| Recommended oil type | FAAC HP OIL |
| Fixing brackets | Rear weld/screw, front weld |
| Dimensions (LxWxH) | 1034 x 85 x 119 mm |
| Electronic Equipment | Not included |
(*) indicative values based on installation

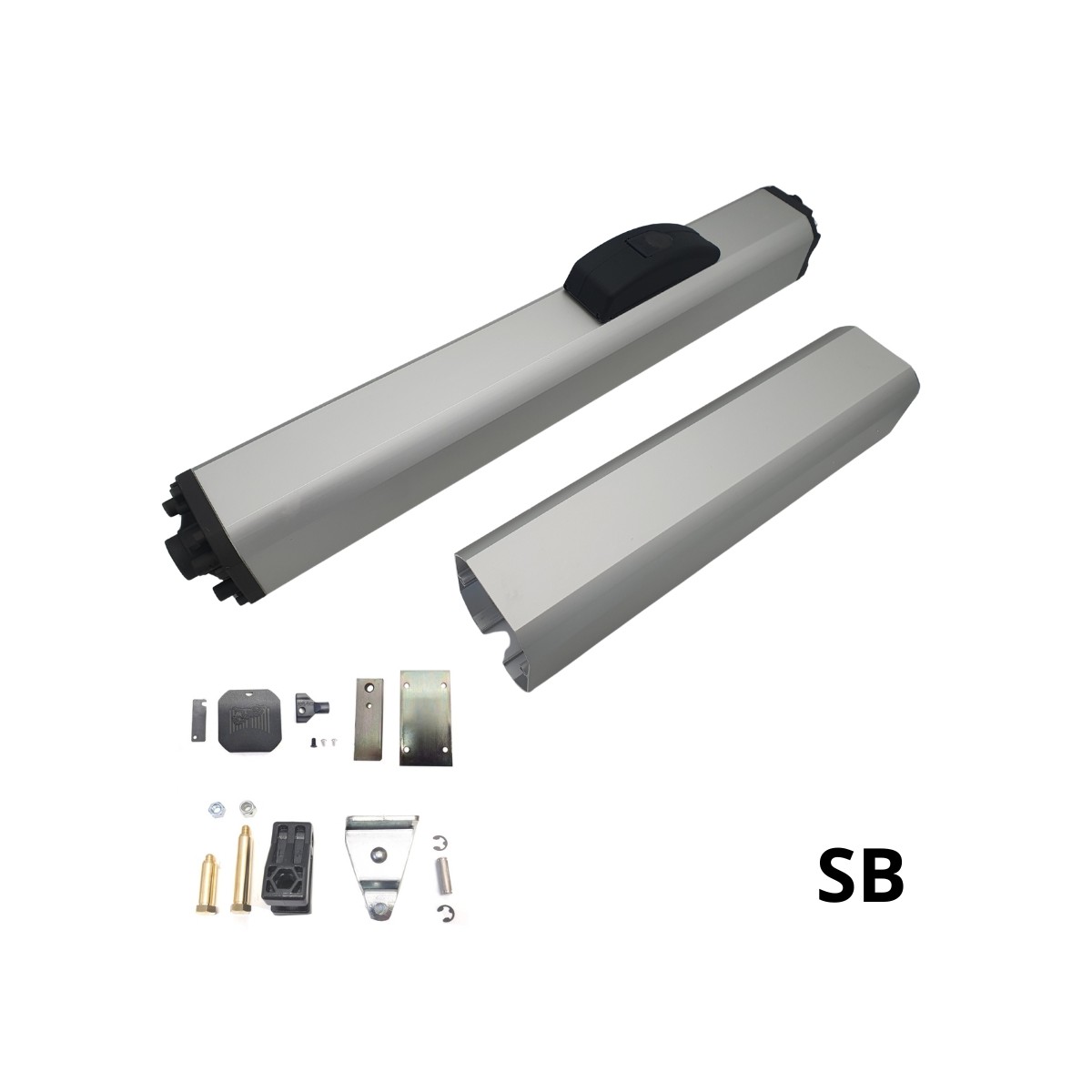

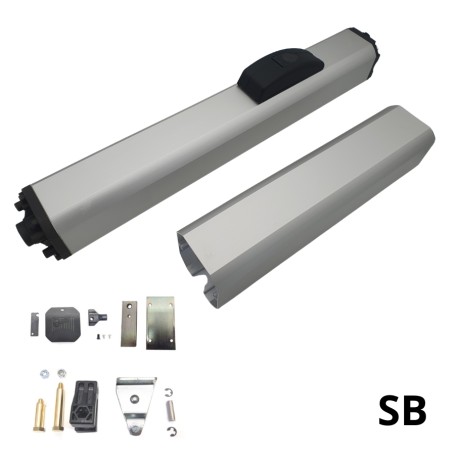

Package Contents
-
1 FAAC 400 SB hydraulic actuator without blocking
-
Mounting brackets and mounting accessories
-
Manual release key
-
Inrush capacitor 8μF 400V
- Frequency of use
- F50 - up to 50 users
- Product Type.
- Single
Spare part - Electric motor
- 230V
- Supply voltage
- 220 - 240V
- Family FAAC
- 400
8055195000627
FAC-104206
