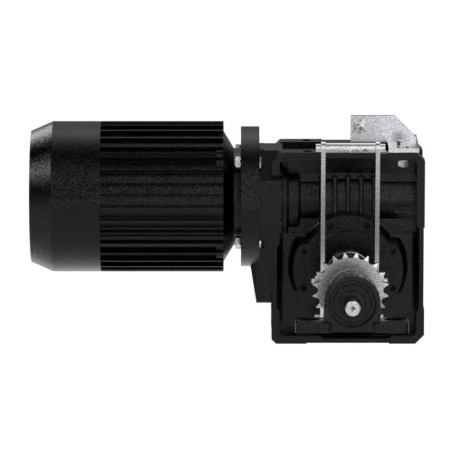

Gearmotor for industrial doors 230/400 Vac 3PH FADINI FIBO 300 LB 2220L
Lowest price within 30 days before promotion. €1,381.29
Fast delivery
Available material shipped within 2-3 days
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
-
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...Read more -
Single photocell that replaces all traditional photocells and reflexes
Thanks to ToF laser technology, OPTIGATE can replace any pair of photocells and reflex photocells, operating...Read more
-
Summer Break ugateshop.it: what to know about shipping, support, and discounts
We’re also taking a short break in August, but our shop remains online at all times. In this article, you’ll find all...Read more
FADINI
Item Number: 2220L
MOD.: FIBO 300 LB
GENERAL DESCRIPTION FIBO 300 LB/FIBO 400 LB SERIES:
FOR INDUSTRIAL DOORS
Electromechanical gearmotor with chain movement
For industrial use
RELIABLE
Gearmotor for applications by transmission with metal chain, specific for industrial sliding doors on rail, with single frame or packing. Coupling in oil bath of the worm screw and the bronze crown, on ball bearings.
ROBUST
Safe thanks to the mechanical clutch. Manual release system for handling in the absence of power supply.
PRODUCT DESCRIPTION FADINI 2220L:
MODEL: FIBO 300 LB
VERSION: 230/400 Vac 50 Hz 3PH | 230/400 Vac 60 Hz 3PH
POWER (kW / HP): 1,1 / 1,5
REDUCER: 1:40
SPROCKET: Z20 - 1/2"
SPEED: 9 m/min - 50 Hz 1.400 rpm | 11 m/min - 60 Hz 1.700 rpm
DOOR AREA (m²): > 50
Each code includes a gearmotor complete with mechanical clutch, chain pinion and manual outlet system. For this type of gearmotors it is advisable to contact our technical department for further information and limits of use.
SPECIFICATIONS:
Mains power supply (Vac - Hz): 230/400 - 50/60
Power consumption (W): 1500
Current consumption (A): 5,1/3
Efficiency (kW - HP): 1,1 - 1,5
Number of engine revolutions (rpm - Hz): 1.400 - 50 1.700 - 60
Rated gear torque (Nm - Hz): 300 - 50
Rated reducing torque (Nm - Hz): 247 - 60
Sliding speed (m/min - rpm - Hz): 9 - 1.400 - 50
Sliding speed (m/min - rpm - Hz): 11 - 1.700 - 50
Gear ratio: 1/40
Operating temperature (°C): -25 ÷ +80
Limit switch: external
IP rating: 55
Oil Type: 706L
Weight (kg): 28
Frequency of use: intensive use
Item Number: 2220L
MOD.: FIBO 300 LB
GENERAL DESCRIPTION FIBO 300 LB/FIBO 400 LB SERIES:
FOR INDUSTRIAL DOORS
Electromechanical gearmotor with chain movement
For industrial use
RELIABLE
Gearmotor for applications by transmission with metal chain, specific for industrial sliding doors on rail, with single frame or packing. Coupling in oil bath of the worm screw and the bronze crown, on ball bearings.
ROBUST
Safe thanks to the mechanical clutch. Manual release system for handling in the absence of power supply.
PRODUCT DESCRIPTION FADINI 2220L:
MODEL: FIBO 300 LB
VERSION: 230/400 Vac 50 Hz 3PH | 230/400 Vac 60 Hz 3PH
POWER (kW / HP): 1,1 / 1,5
REDUCER: 1:40
SPROCKET: Z20 - 1/2"
SPEED: 9 m/min - 50 Hz 1.400 rpm | 11 m/min - 60 Hz 1.700 rpm
DOOR AREA (m²): > 50
Each code includes a gearmotor complete with mechanical clutch, chain pinion and manual outlet system. For this type of gearmotors it is advisable to contact our technical department for further information and limits of use.
SPECIFICATIONS:
Mains power supply (Vac - Hz): 230/400 - 50/60
Power consumption (W): 1500
Current consumption (A): 5,1/3
Efficiency (kW - HP): 1,1 - 1,5
Number of engine revolutions (rpm - Hz): 1.400 - 50 1.700 - 60
Rated gear torque (Nm - Hz): 300 - 50
Rated reducing torque (Nm - Hz): 247 - 60
Sliding speed (m/min - rpm - Hz): 9 - 1.400 - 50
Sliding speed (m/min - rpm - Hz): 11 - 1.700 - 50
Gear ratio: 1/40
Operating temperature (°C): -25 ÷ +80
Limit switch: external
IP rating: 55
Oil Type: 706L
Weight (kg): 28
Frequency of use: intensive use
